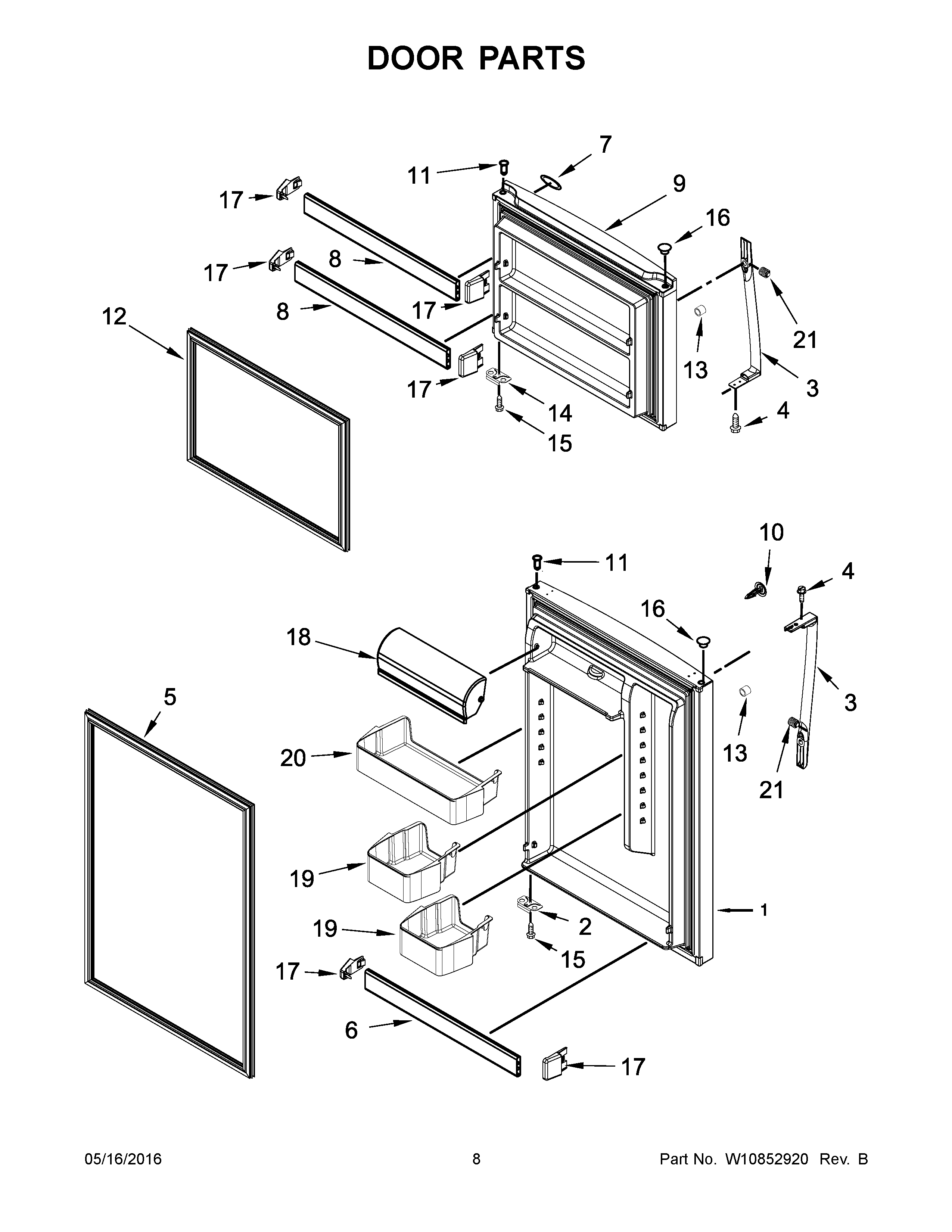

5WT519SFEG00 05 – DOOR PARTS

Products

Position	Product
1A	LW10818792 Whirlpool Refrigerator Door FIP
1	LW10636232 Whirlpool Refrigerator DOR-FIP
2	W11402852 Whirlpool Refrigerator Bracket
3	W10837577 Whirlpool Refrigerator Door Handle
3A	W10837029 Whirlpool Refrigerator Stainless Steel Door Handle
4	WP489357 Whirlpool Recessed Screw
5A	W11028007 Whirlpool Refrigerator Door Gasket
5	W10838574 Whirlpool Door Gasket
6	TRIM-DOOR
7A	W11178521 Whirlpool Dishwasher Nameplate
8	W10592151 Whirlpool Refrigerator Door Trim
9	LW10636404 Whirlpool Refrigerator Door FIP
9A	FREEZER DOOR (INCLUDES DOOR GASKET) (DOLOS STEEL)
10	W10830984 Whirlpool Handle Plug
10A	W10830982 Whirlpool Handle Plug
11	THIMBLE
11A	W11676573 Whirlpool Thimble
12A	W11036546 Whirlpool Refrigerator Door Gasket
12	W10861499 Whirlpool Door Gasket
13	WPW10170540 Whirlpool Screw
14	W11745278 Whirlpool Bracket
15	WP488921 Whirlpool Refrigerator Screw
16A	PLUG, HINGE SLEEVE (GREY)
16	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
17	W10838039 Whirlpool Shelf Retainer Bar
18	W11675283 Whirlpool Comp Door
19	WPW10308867 Whirlpool Refrigerator Cantilever Bin
20	WPW10308868 Whirlpool Refrigerator Door Bin
21	WPW10511911 Whirlpool Refrigerator Bushing
