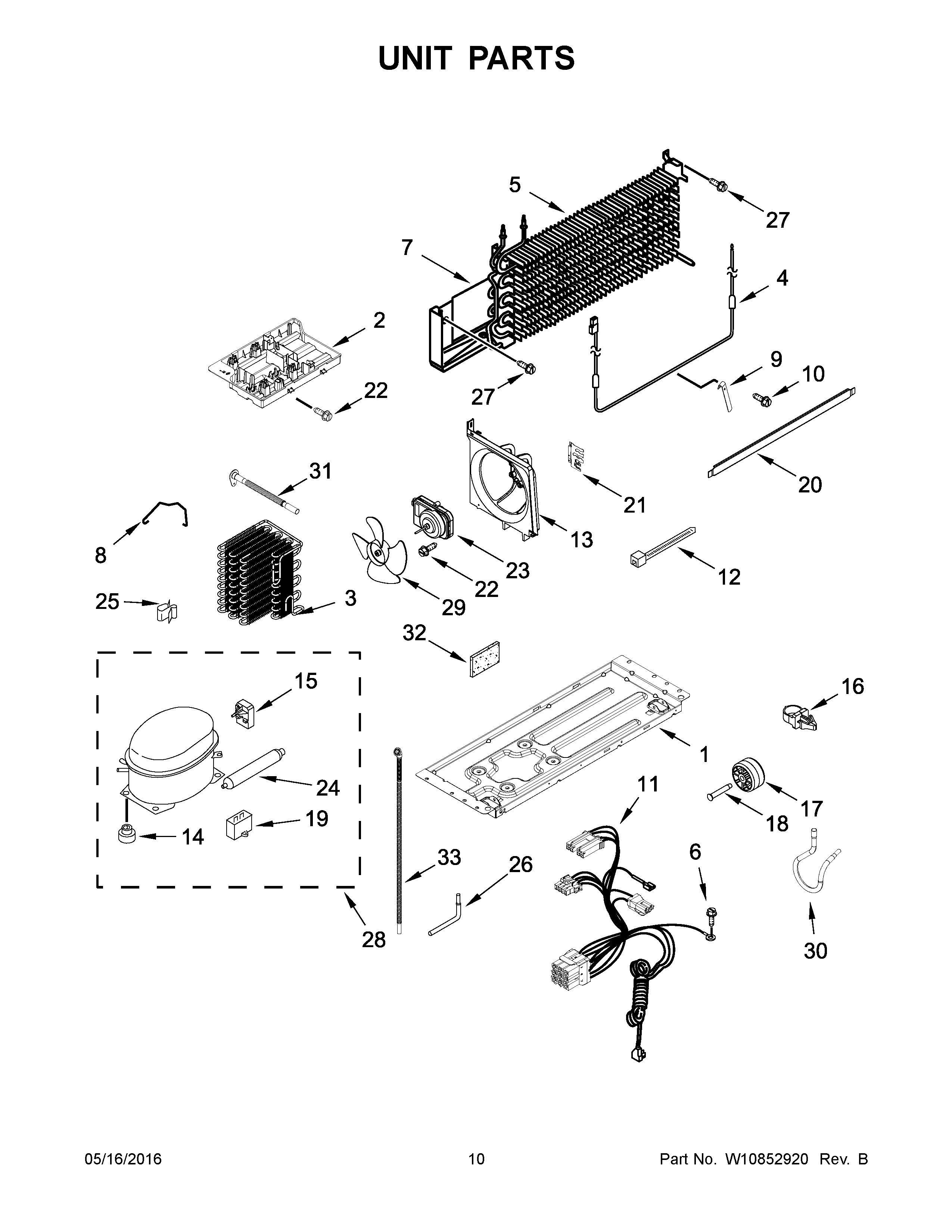

5WT519SFEG00 06 – UNIT PARTS

Products

Position	Product
NI	978026 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (1/2“)
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978030 Whirlpool Refrigerator Valve
NI	WP978025 Whirlpool Refrigerator Valve
1	W10624648 Whirlpool Base Unit
2	W10633582 Whirlpool Refrigerator Evaporator Tray
3	W11512423 Whirlpool Refrigerator Condenser
4	W10405108 Whirlpool Heater
5	W10836706 Whirlpool Refrigerator Evaporator
6	WP489128 Whirlpool Refrigerator Screw
7	WPW10314195 Whirlpool Refrigerator Shield
8	STRAP, BALE
9	W10856574 Whirlpool Refrigerator Heat Probe
10	WP489478 Whirlpool Refrigerator Screw
11	HARNESS, UNIT
12	WPW10339879 Whirlpool Wire Tie
13	W11736795 Whirlpool Air Baffle
14	WPW10169124 Whirlpool Refrigerator Grommet
15	WP2312007 Whirlpool Refrigerator Start Device
16	2219077 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	W10801770 Whirlpool Capacitor
20	W10300902 Whirlpool Refrigerator Cover
21	W10314197 Whirlpool Refrigerator Bracket
22	W10829281 Whirlpool Refrigerator Screw
23	W10527160 Whirlpool Condenser Motor
24	W10843121 Whirlpool Refrigerator Tube
25	W10812039 Whirlpool Clip
26	TUBE, PROCESS
27	WP489442 Whirlpool Refrigerator Screw
28	W10183407 Whirlpool Refrigerator Compressor
29	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
30	TUBE, SUCTION
31	W10646247 Whirlpool Refrigerator Extension
32	W11553819 Whirlpool Refrigerator Insulation
33	W10633573 Whirlpool Refrigerator Drain Tube
