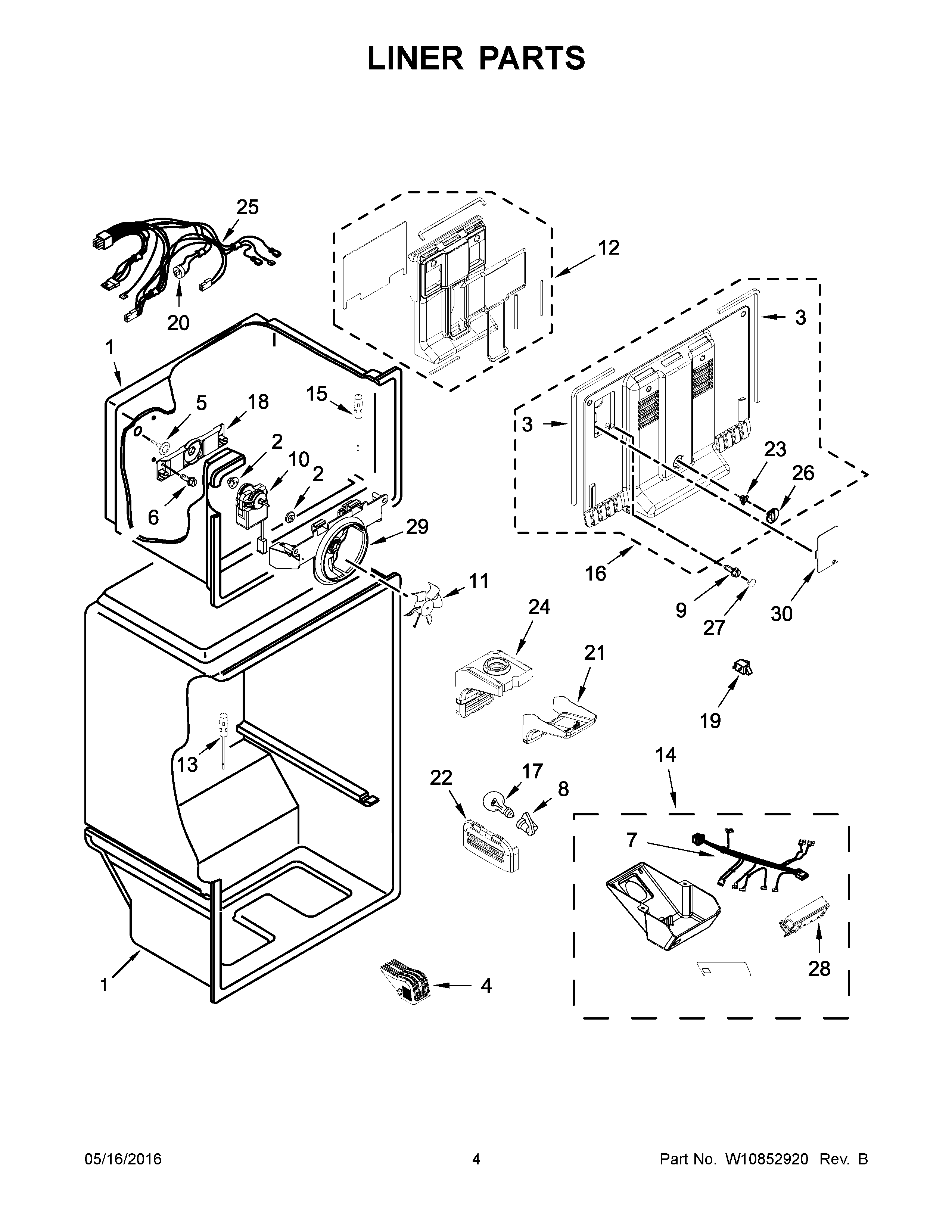

5WT519SFEW00 03 – LINER PARTS

Products

Position	Product
2	WP2264462 Whirlpool Refrigerator Grommet
3	W10849448 Whirlpool Refrigerator Gasket
4	W10920316 Whirlpool Refrigerator Light Lens
5	WP941839 Whirlpool Refrigerator Button Plug
6	WP488163 Whirlpool Refrigerator Screw
7	WIRE ASSEMBLY, CONTROL BOX
8	W11447232 Whirlpool Refrigerator Socket
9	W11544659 Whirlpool Refrigerator Screw
10	MOTOR-EVAP
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	W10919804 Whirlpool Refrigerator Air Duct
13	THERMISTOR
14	ASSEMBLY, CONTROL BOX
15	THERMISTOR-REFRIGERATOR
16	W11024683 Whirlpool Refrigerator Evaporator Cover
17	W10716219 Whirlpool Light Bulb
18	2254454 Whirlpool Refrigerator Bracket
19	W11384469 Whirlpool Door Switch
20	CABINET (NOT A SERVICEABLE PART)
21	W11256504 Whirlpool Refrigerator Cover
22	W10638176 Whirlpool Refrigerator Grille
23	W11244470 Whirlpool Refrigerator Control
24	W10861170 Whirlpool Refrigerator Diffuser
25	ASSEMBLY, EVAPORATOR FAN WIRE (INCLUDES BI-METAL DEFROST)
26	W11026417 Whirlpool Refrigerator Air Damper
27	W10854527 Whirlpool Refrigerator Cover
28	WPW10643378 Whirlpool Control Board + Core
29	W10850162 Whirlpool Refrigerator Orifice
30	W10677275 Whirlpool Refrigerator Cover
