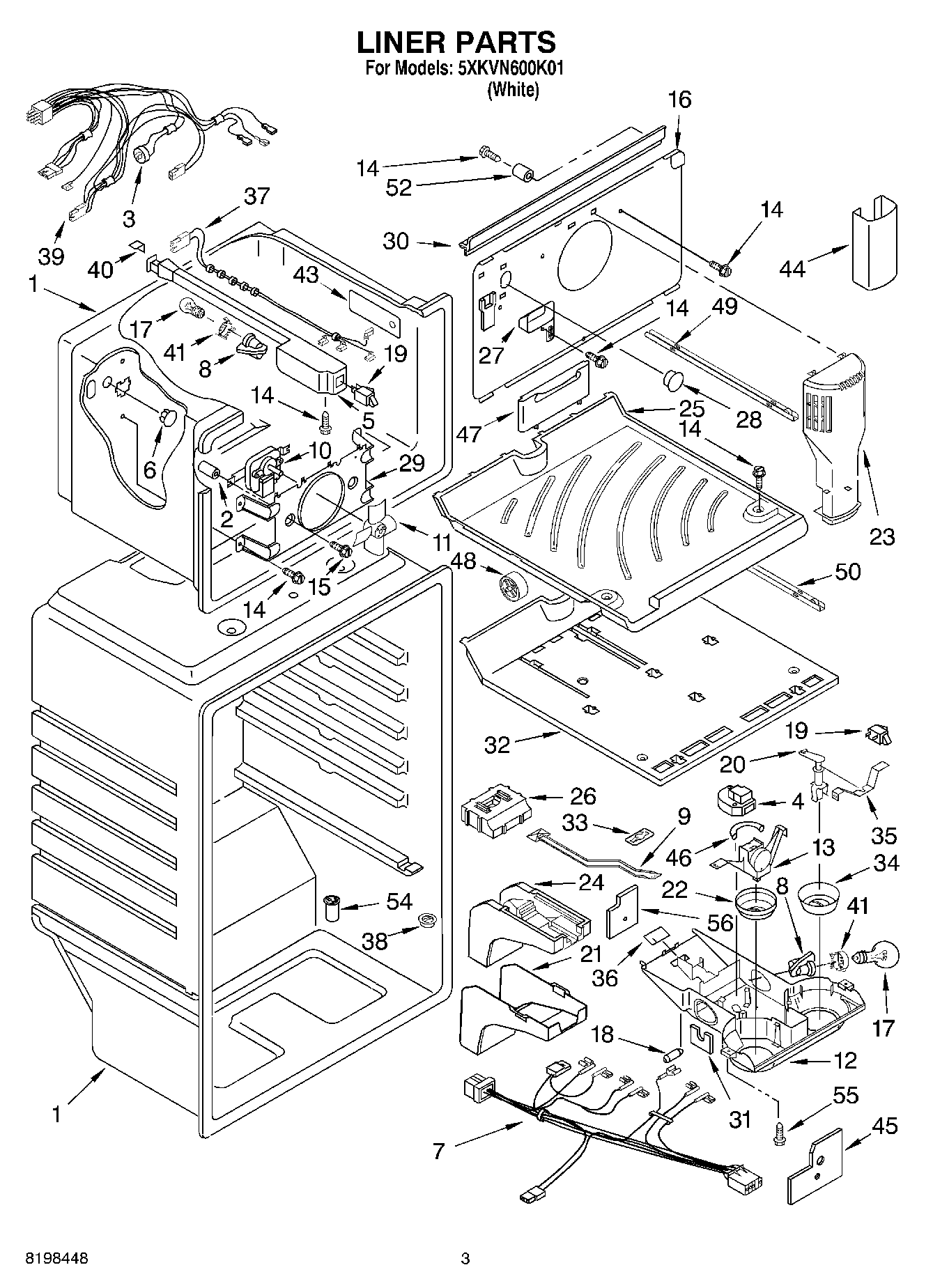

5XKVN600K01 02 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Grommet
3	WP2182381 Whirlpool Refrigerator Bimetallic Defrost
4	WP2321259 Whirlpool Refrigerator Defrost Timer
5	Housing Base
6	WP941839 Whirlpool Refrigerator Button Plug
7	Wire Assy. Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air
10	Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	Thermostat Assy. (Includes Items 5, 18 & 36)
14	WP489478 Whirlpool Refrigerator Screw
15	WP489497 Whirlpool Screw
16	Cover, Evaporator
17	WP67002552 Whirlpool Refrigerator Light Bulb
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	Post, Damper
21	Cover, Air Diffuser
22	W10829461 Whirlpool Refrigerator Thermal Knob
23	Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	Pullout, Freezer Floor
26	AIR SEPARATOR ASSEMBLY
27	Cover, Hole
28	940014 Whirlpool Refrigerator Primary Button Plug
29	Bracket, Fan Motor
30	WP2254360 Whirlpool Refrigerator Gasket
31	Foil, Control Box
32	Freezer Floor
33	Clip, Defrost Timer
34	Knob, Damper
35	Bracket, Damper Knob
36	WP2205079 Whirlpool Refrigerator Seal
37	Wiring Harness, Freezer Light
38	WP2210509 Whirlpool Refrigerator Tub Valve
39	Wire Assembly, Freezer Compartment
40	Gasket, Rear
41	WP2175210 Whirlpool Refrigerator Shroud
43	Electrical Shield, Freezer Light
44	Sleeve
45	Shield, heat
46	Thermostat Tube Barrier
47	REAR FENCE PULL-OUT FREEZER FLOOR
48	Roller, Slide
49	Side Support, Floor Assembly
50	Center Support, Floor Assembly
52	WP487996 Whirlpool Refrigerator Cap Tube
55	Screw
56	Shield
