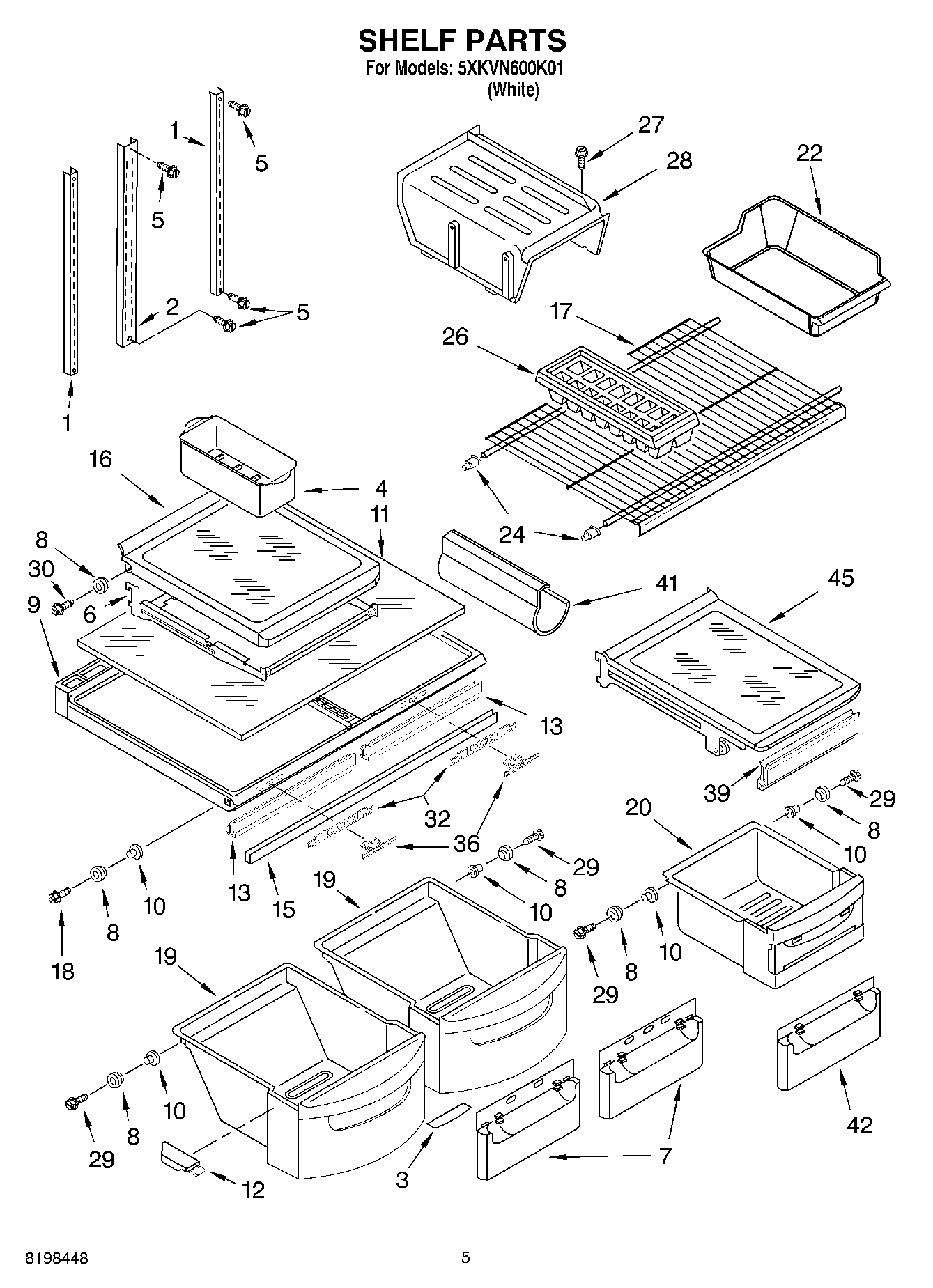

5XKVN600K01 03 – SHELF PARTS

5XKVN600K01 03 – SHELF PARTS

Written by

in

5XKVN600K01 03 – SHELF PARTS

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder
3Nameplate
4W10136387A Whirlpool Refrigerator Egg Container
6Frame Assembly, Cantilever
7Window, Crisper
8Roller
9Crisper Cover
10Eyelet, Roller
11Glass, Crisper Cover
12Cap, Crisper (Left Side)
12Cap, Crisper (Right Side)
13WP1125528 Whirlpool Refrigerator Gasket
15WP2172748 Whirlpool Drawer Support
16Shelf Assembly, Spillguard (3) (Includes Rollers)
17Shelf, Freezer
18WPW10272364 Whirlpool Refrigerator Screw
19Pan, Crisper (Includes 3,7,8,10, 12,29)
20Pan, Meat (Includes Rollers)
222254352A Whirlpool Refrigerator Ice Container
242163762 Whirlpool Refrigerator Cup Assembly
26WP841180A Whirlpool Microwave Glass Turntable Tray
27WP489478 Whirlpool Refrigerator Screw
28Shelf, Ice Tray
29WP489261 Whirlpool Refrigerator Screw
30Screw
32Slide, Humidity
36Button, Humidity Control
39Gasket, Front
41W10777924 Whirlpool Refrigerator Wine Rack
42Window, Meat Pan
45Shelf Assembly, Spillguard
