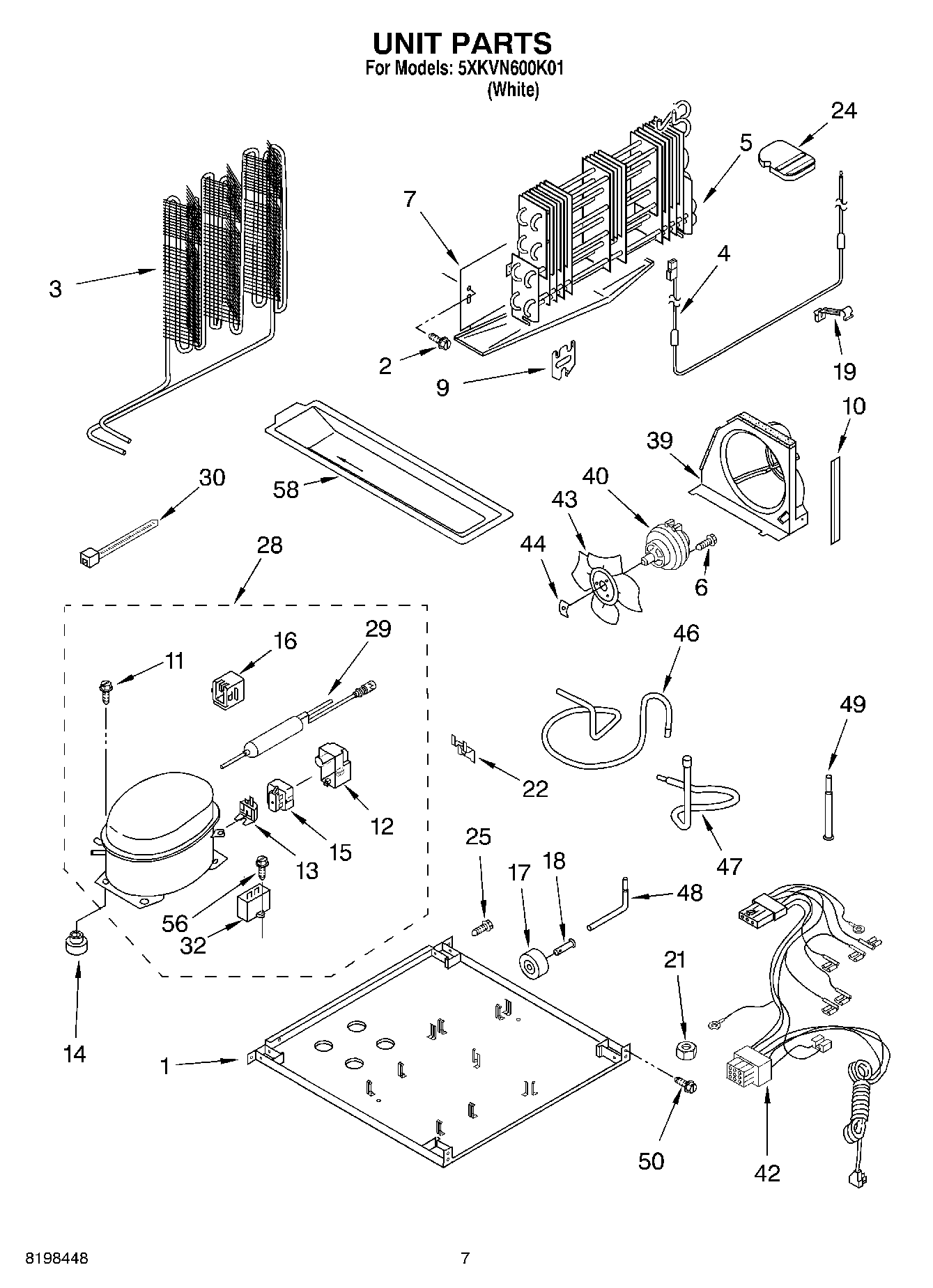

5XKVN600K01 04 – UNIT PARTS

5XKVN600K01 04 – UNIT PARTS

Written by

in

5XKVN600K01 04 – UNIT PARTS

Products

PositionProduct
1Plate, Unit Mounting
2WP489478 Whirlpool Refrigerator Screw
3WP2214960 Whirlpool Refrigerator Condenser
4Heater, Defrost
5Evaporator Assy.
6WP8281196 Whirlpool Screw
7Drain Pan
9Bracket, Heater
10Extension, Air Baffle
12WP61002138 Whirlpool Refrigerator Terminal Cover
132169410 Whirlpool Refrigerator Overload
14876811 Whirlpool Grommet
14WP4387558 Whirlpool Refrigerator Compressor Grommet
15WP2262184 Whirlpool Refrigerator Start Relay
16Start-Device Combination (Start Relay and Overload for Production Compressor Only)
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
21Nut (Not Serviced)
22Clip, Capacitator
24Support Block
25WP3400504 Whirlpool Refrigerator Screw
28Compressor (Includes Items 12,13,14, 29 & 32) (Also Order
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
32WP2201147 Whirlpool Refrigerator Capacitor
32Capacitor (Production)
39Air Baffle
408201703 Whirlpool Refrigerator Condenser Motor
42Wire Assembly, Unit
43Blade, Fan
44WP486692 Whirlpool Refrigerator Nut
462205533 Whirlpool Refrigerator Tube
472214924 Whirlpool Refrigerator Tube
482154109 Whirlpool Refrigerator Tube
49Tube, Transition
503400518 Whirlpool Oven Foot Mount Screw
56WP489128 Whirlpool Refrigerator Screw
58Following Parts Not Illustrated and Optional Parts Not Included
58VALVE, ACCESS (5/8“)
58876764 Whirlpool Refrigerator Primary Valve
58978026 Whirlpool Refrigerator Primary Valve
58978027 Whirlpool Refrigerator Primary Valve
58978030 Whirlpool Refrigerator Valve
58Evaporator Tray
58WP978025 Whirlpool Refrigerator Valve
58VALVE, ACCESS (1/2“)
58REFRIGERANT CHARGE 4.0 Ozs. (R134A)
