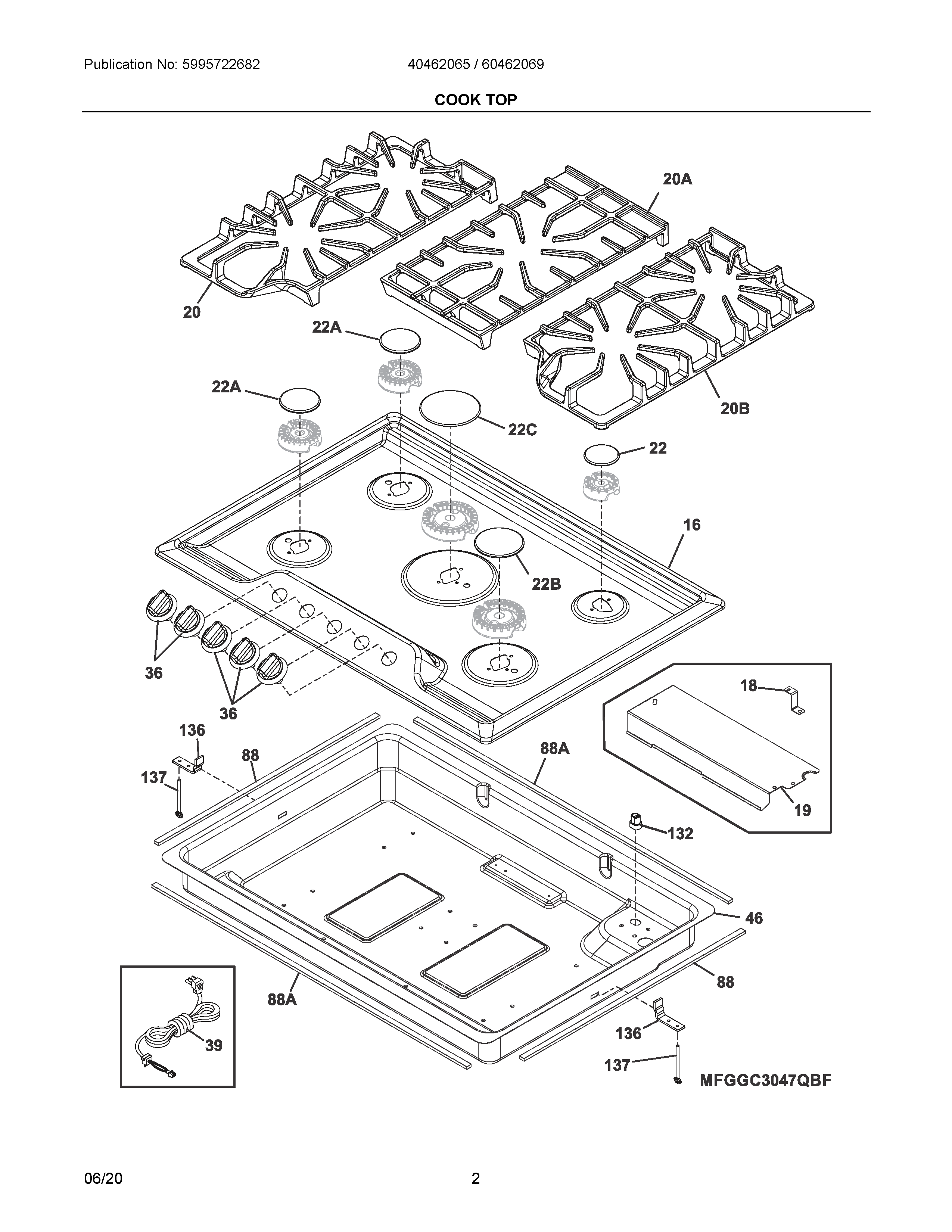

60462069A 02 – COOK TOP

60462069A 02 – COOK TOP

Written by

in

60462069A 02 – COOK TOP

Products

PositionProduct
NI305338601 Frigidaire Screw
NIA305452800 Frigidaire Screw
16WCI 5304525243
18BRACKET
19SHIELD, HEAT
205304499392 Frigidaire Oven Grate
20A5304499393 Frigidaire Oven Grate
20B5304499394 Frigidaire Oven Grate
22A5304508442 Frigidaire Oven Surface Burner Cap
22B5304508443 Frigidaire Oven Surface Burner Cap
22CAP
22C5304508468 Frigidaire Oven Cap
365304533000 Frigidaire Knob
39305574902 Frigidaire Power Cord
465304499395 Frigidaire Burner Box
88AGASKET, MAINTOP, FOAM TAPE, FRONT/REAR
88GASKET, MAINTOP, FOAM TAPE, SIDE
1325304513507 Frigidaire Bushing Assembly
136318264301 Frigidaire Oven Support
137305452400 Frigidaire Oven Screw
