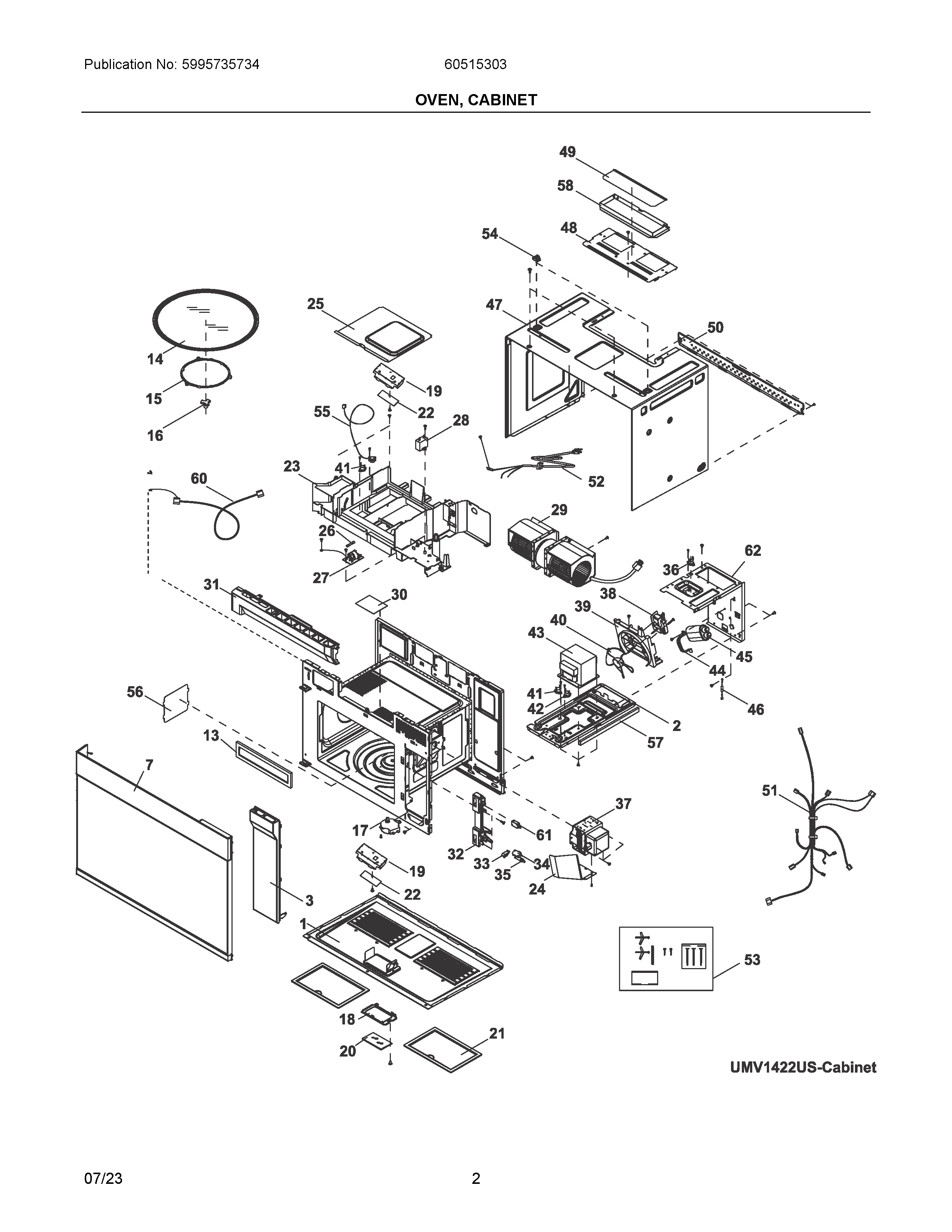

60515303 02 – OVEN, CABINETadmin2025-04-26T08:49:05+00:0060515303 02 – OVEN, CABINET
Products
| Position | Product |
|---|
| 1 | 5304517865 Frigidaire Microwave Base Plate |
| 2 | 5304513460 Frigidaire Plate Assembly |
| 3 | CONTROL ASSEMBLY, COMPLETE, W/PCB |
| 7 | 5304518787 Frigidaire Stainless Outer Door |
| 13 | FILTER, CHARCOAL, 2" X 10" |
| 14 | 5304509621 Frigidaire Microwave Glass Tray |
| 15 | 5304517881 Frigidaire Microwave Ring |
| 16 | SHAFT, TURNTABLE/MOTOR, COUPLER |
| 17 | 5304509440 Frigidaire Microwave Motor |
| 18 | 5304509441 Frigidaire Microwave Frame |
| 19 | 5304509442 Frigidaire Microwave Cover |
| 20 | 5304509443 Frigidaire Microwave Lens |
| 21 | 5304517871 Frigidaire Replacement Grease Filters |
| 22 | 5304517872 Frigidaire Microwave Lamp |
| 23 | WAVE GUIDE, MAIN |
| 24 | 5304513477 Frigidaire Microwave Guide |
| 25 | 5304513485 Frigidaire Appliance Cover |
| 26 | 5304509451 Frigidaire Microwave Fuse |
| 27 | 5304525109 Frigidaire Microwave Filter |
| 28 | CAPACITOR, START |
| 29 | 5304509624 Frigidaire Microwave Motor |
| 30 | TAPE, LAMP |
| 31 | 5304517876 Frigidaire Gille |
| 32 | LATCH HOOK |
| 33 | 5304509458 Frigidaire Microwave Lever Assembly |
| 34 | 5304512529 Frigidaire Microwave Switch |
| 35 | 5304515182 Frigidaire Microwave Switch |
| 36 | 5304509469 Frigidaire Microwave Thermostat |
| 37 | 5304509470 Frigidaire Microwave Magnetron |
| 38 | 5304513476 Frigidaire Microwave Motor |
| 39 | 5304513475 Frigidaire Microwave Guide |
| 40 | 5304517877 Frigidaire Blade |
| 41 | 5304509474 Frigidaire Microwave High Limit Thermostat |
| 42 | 5304509475 Frigidaire Microwave Thermostat |
| 43 | 5304509476 Frigidaire Microwave Transformer |
| 44 | 5304513482 Frigidaire Holder |
| 45 | 5304509478 Frigidaire Microwave Capacitor |
| 46 | 5304509479 Frigidaire Microwave Diode |
| 47 | WRAPPER, OUTER CASE, BLACK |
| 48 | COVER, VENT MOTOR |
| 49 | 5304509486 Frigidaire Microwave Vent Damper |
| 50 | 5304517880 Frigidaire Microwave Plate |
| 51 | 5304518791 Frigidaire Microwave Harness |
| 52 | 5304512501 Frigidaire Power Cord |
| 53 | 5304513469 Frigidaire Microwave Mounting Kit |
| 54 | 5304509436 Frigidaire Microwave Mounting Nut Kit |
| 55 | 5304509652 Frigidaire Microwave Sensor |
| 56 | 5304509435 Frigidaire Microwave Waveguide Cover |
| 57 | 5304509482 Frigidaire Microwave Cushion |
| 58 | 5304509485 Frigidaire Microwave Vent Damper |
| 60 | 5304504073 Frigidaire Microwave Wire |
| 61 | SWITCH |
| 62 | 5304513479 Frigidaire Microwave Duct Assembly |
