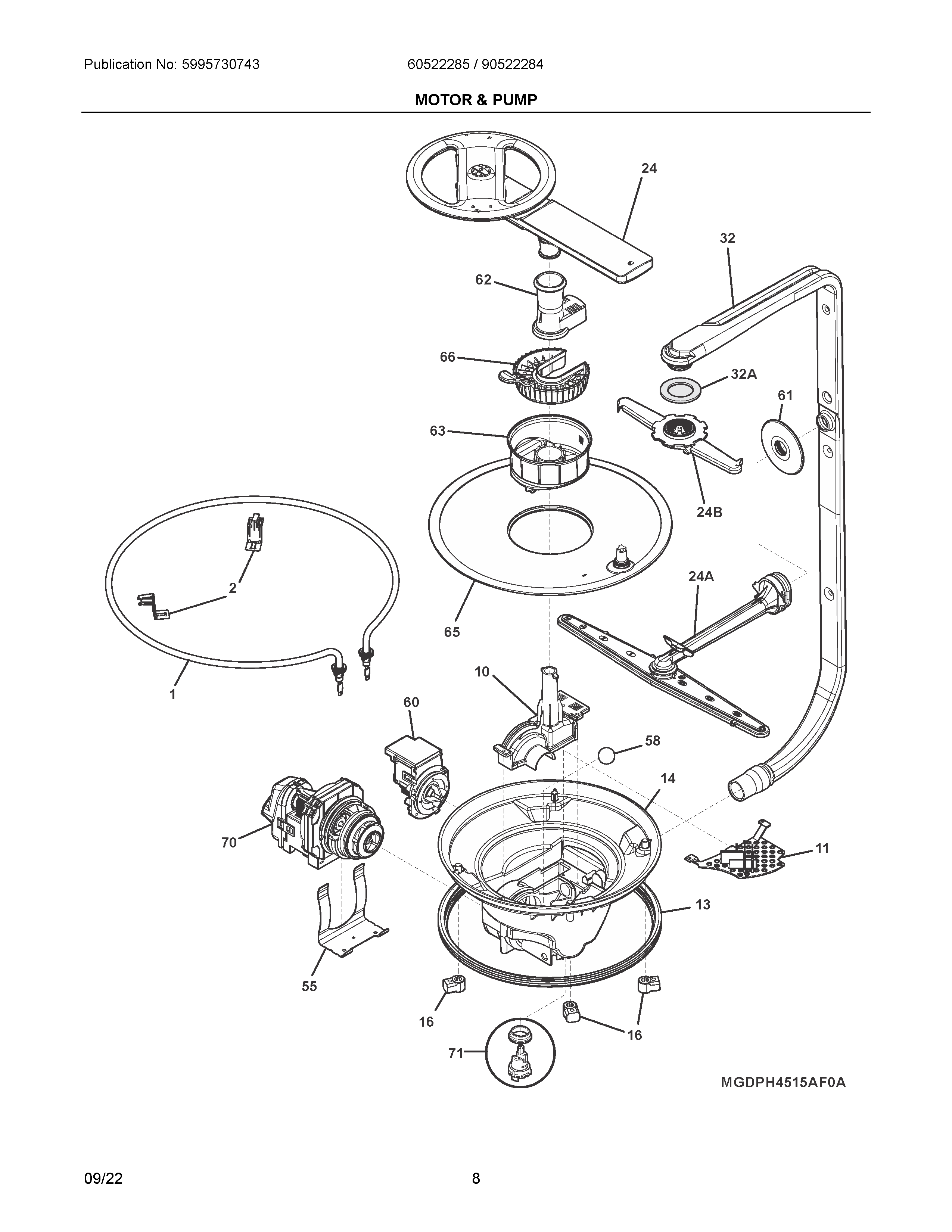

605222850A 05 – MOTOR & PUMP

605222850A 05 – MOTOR & PUMP

Written by

in

605222850A 05 – MOTOR & PUMP

Products

PositionProduct
NI154783101 Frigidaire Dishwasher Screw
NIA807048001 Frigidaire Dishwasher Check Valve
NIA154779601 Frigidaire Dishwasher Screw
NIA154754901 Frigidaire Dishwasher Screw
NIB154741501 Frigidaire Dishwasher Screw
NIA154611101 Frigidaire Dishwasher Clamp
NIB154491101 Frigidaire Dishwasher Screw
NIA154289801 Frigidaire Dishwasher Shield
NIB154106202 Frigidaire Dishwasher Heater Nut
1154825001 Frigidaire Dishwasher Round Heater Heating Element
2154465101 Frigidaire Dishwasher Heating Element Support Bracket
10807145201 Frigidaire Dishwasher Cover-Volute
11807111601 Frigidaire Sump Cover Assembly and Filter
13154246801 Frigidaire Dishwasher Primary Gasket
14154723801 Frigidaire Dishwasher SUMP Assembly
16154246502 Frigidaire Dishwasher Bracket
24B5304532203 Frigidaire Spray Arm
24A5304532202 Frigidaire Manifold Assembly
245304532209 Frigidaire Spray Arm
32A154406401 Frigidaire Delivery Tube Gasket
325304507087 Frigidaire Dishwasher Tube
555304534830 Frigidaire Dishwasher Bracket
58154246402 Frigidaire Dishwasher P-1 BALL
60A00126401 Frigidaire Dishwasher Drain Pump Assembly
615304532204 Frigidaire Grommet Assembly
625304532235 Frigidaire Support
635304532205 Frigidaire Base
655304532208 Frigidaire Filter Assembly
665304532206 Frigidaire Trap
70MOTOR & PUMP ASSY
71154762601 Frigidaire Dishwasher Turbidity Sensor
