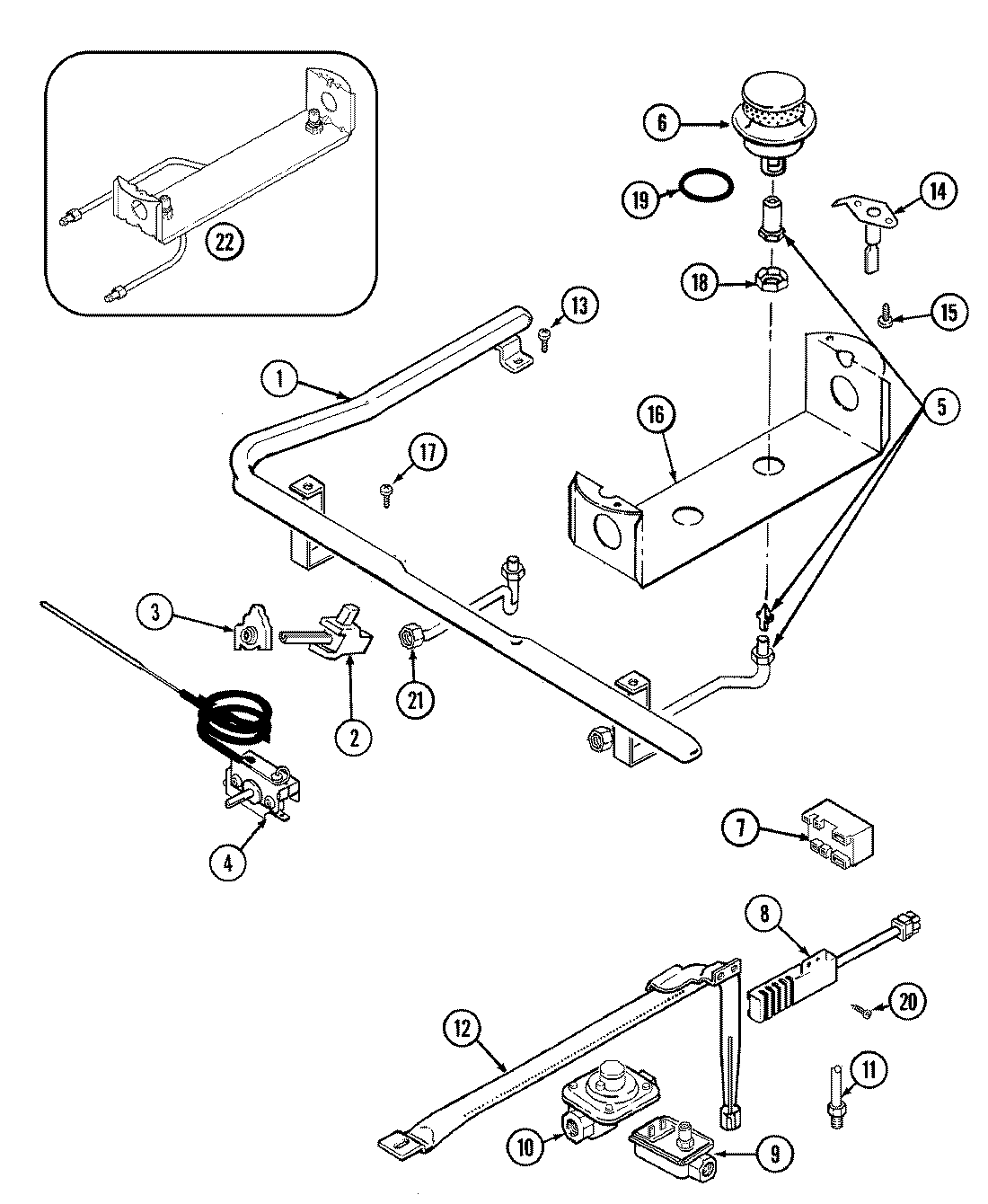

6157WUA 02 – GAS CONTROLS

Products

Position	Product
1	MAY 7513P160-60
2	MAY 7502P217-60
3	WP7403P279-60 Whirlpool Igniter Switch
4	MAY 4005F433-51
4	MAY 7404P087-60
4	MAY 7101P280-60
6	MAY 3412D018-09
7	MAY 3807F432-45
7	MAY 7431P027-60
7	MAY 7431P023-60
8	MAY 7432P076-60
9	MAY 7501P099-60
10	MAY 7510P050-60
10	MAY 8020P007-60
10	MAY 7507P123-60
11	MAY 7103P130-60
11	MAY 3414F104-44
12	MAY 3403D023-45
13	MAY 7101P290-60
14	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
15	MAY 7101P315-60
16	MAY 3807F451-45
16	MAY 7101P343-60
17	MAY 7101P296-60
18	MAY 7103P119-60
19	MAY 7201P050-60
20	SCREW (10-24X5/16-NI)
21	MAY 7507P089-60
21	MAY 7507P086-60
21	MAY 7507P087-60
22	MAY 5187D037-60
22	MAY 5187D036-60
22	MAY 5140D038-60
22	MAY 5125A312-60
