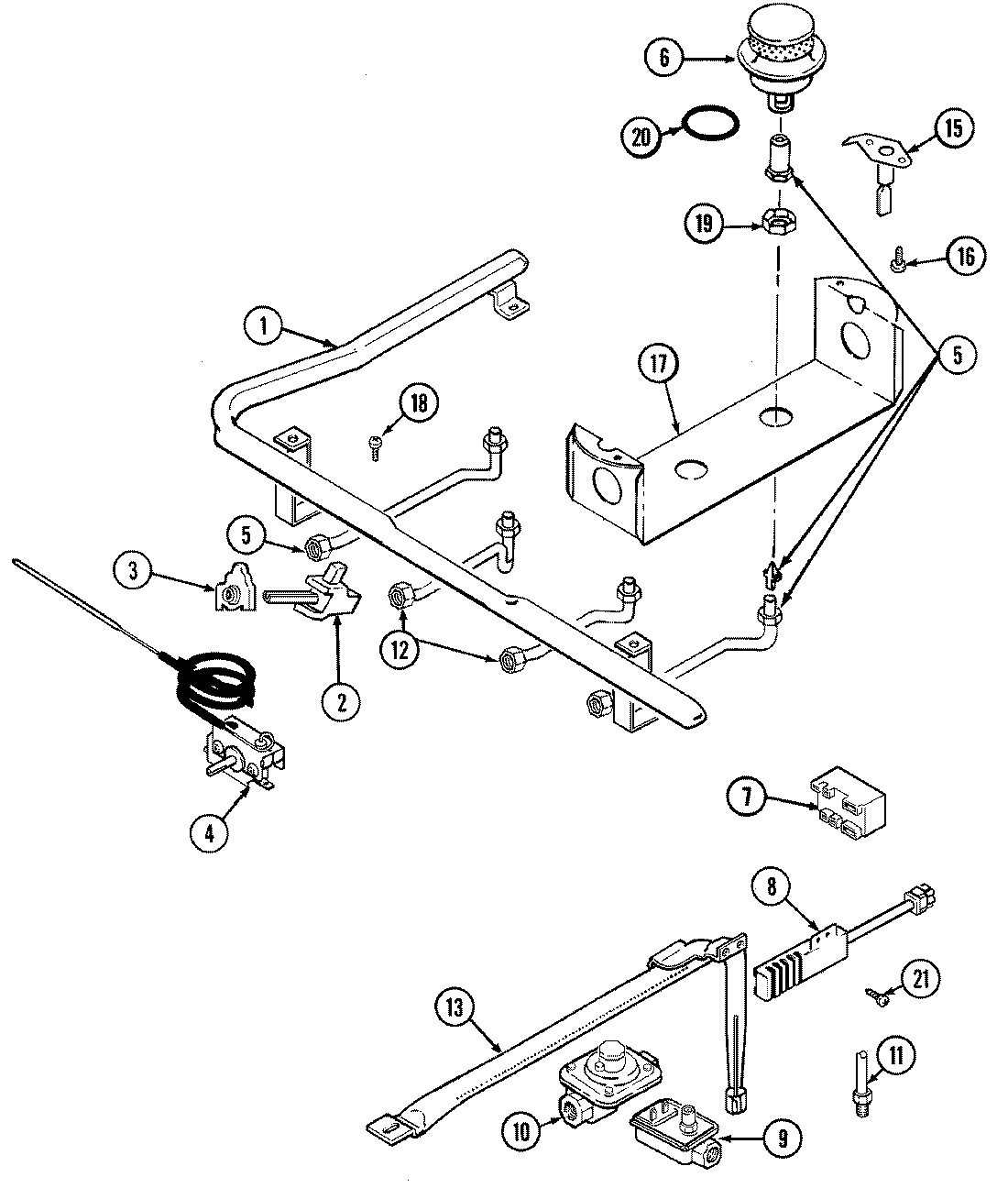

6157XTW 03 – GAS CONTROLS

Products

Position	Product
1	MAY 7513P160-60
2	MAY 7502P250-60
3	WP7403P279-60 Whirlpool Igniter Switch
4	MAY 4005F433-51
4	MAY 7404P087-60
4	MAY 7101P280-60
5	MAY 7507P087-60
6	MAY 3412D018-09
7	MAY 7431P023-60
7	MAY 3807F432-45
8	MAY 7432P076-60
9	MAY 7501P099-60
9	MAY 7103P130-60
10	MAY 7510P050-60
10	MAY 7507P123-60
10	MAY 8020P007-60
11	MAY 3414F104-44
12	MAY 7507P089-60
12	MAY 7507P086-60
13	MAY 3403D023-45
14	MAY 7101P290-60
15	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
16	MAY 7101P315-60
17	MAY 3807F451-45
18	MAY 7101P296-60
19	MAY 7103P119-60
20	MAY 7201P050-60
21	SCREW (10-24X5/16-NI)
22	MAY 5140D038-60
22	MAY 5125A312-60
