61S04PAW 02 – DOOR/DRAWER

61S04PAW 02 – DOOR/DRAWER

Written by

in

61S04PAW 02 – DOOR/DRAWER

Products

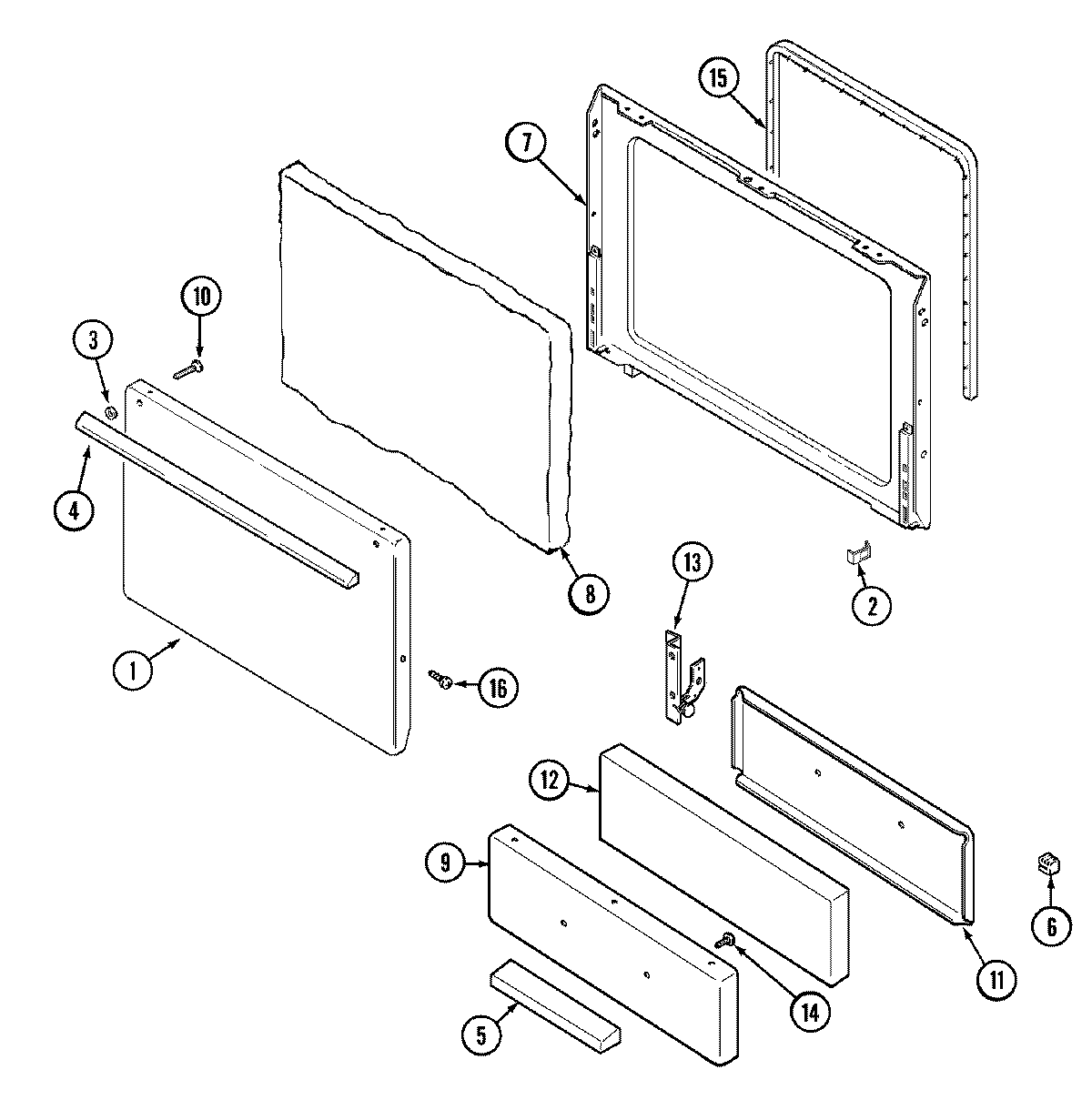

PositionProduct
1MAY 74002282
2CLIP, DOOR
3MAY 8010P084-60
4WP2411F013-70 Whirlpool Door Handle
5MAY 74001820
6MAY 8016P015-60
7NUT, SNAP (ROUND-WHT)
7MAY 74002396
7MAY 74003240
8MAY 4804F028-60
8MAY 4804F050-60
9MAY 74001729
10MAY 7101P080-60
11MAY 74002397
12MAY 74001814
13MAY 74002398
13SCREW
1474002481 Whirlpool Screw
15WP7212P043-60 Whirlpool Oven Door Seal Gasket
16WP98008544 Whirlpool Screw Assembly
