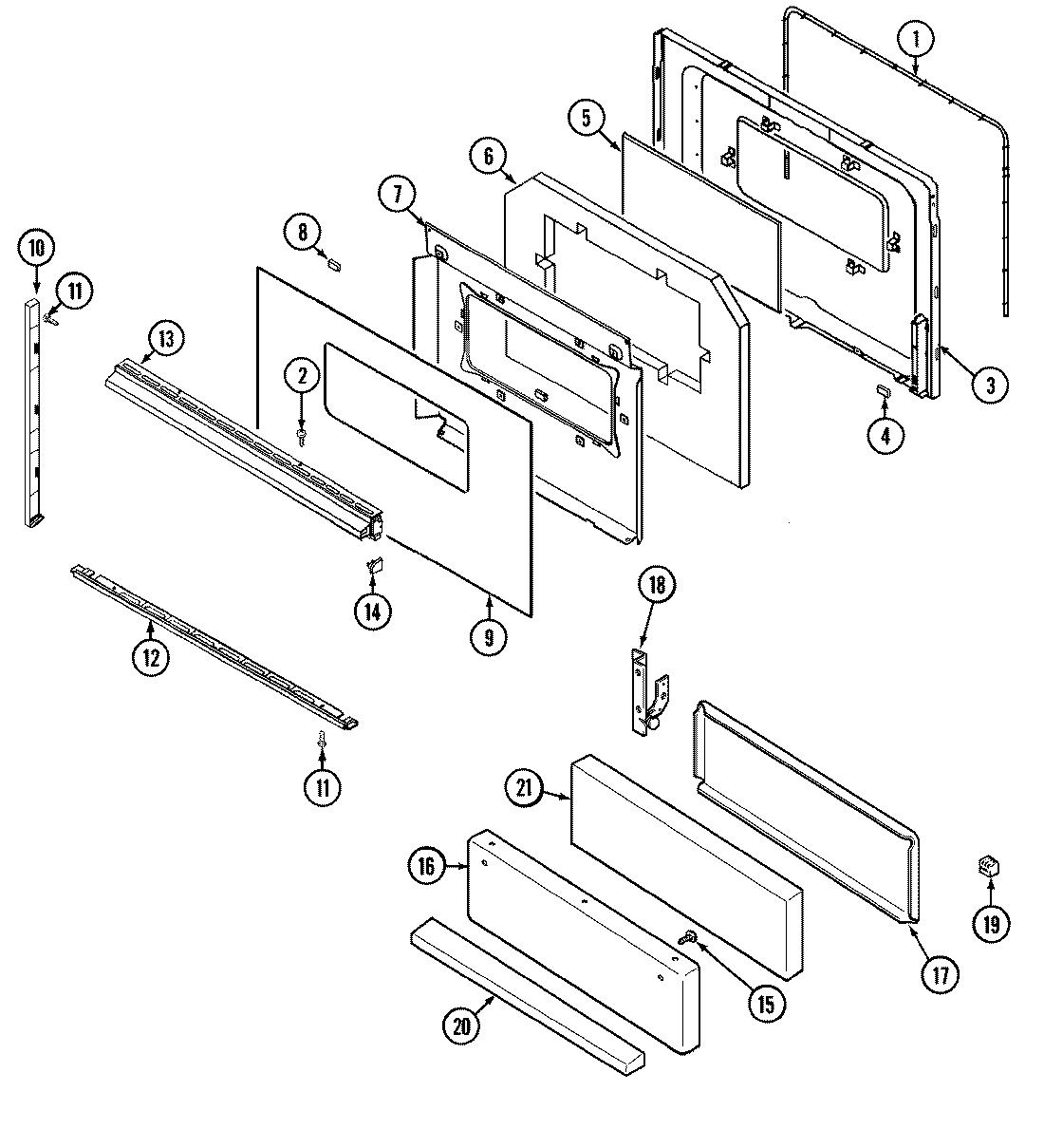

61S14XAW 02 – DOOR/DRAWER (61S14XAx)

61S14XAW 02 – DOOR/DRAWER (61S14XAx)

Products

PositionProduct
1WP7212P043-60 Whirlpool Oven Door Seal Gasket
2WP98008545 Whirlpool Screw
3MAY 74003248
3MAY 2402W213-19
4MAY 8010P085-60
5MAY 7902P319-60
6MAY 7002P158-60
7MAY 3601F240-80
7MAY 7101P209-60
8MAY 8270P095-60
9MAY 7902P321-60
10MAY 7744P055-60
10MAY 74003430
12MAY 7744P105-60
12MAY 74003432
13MAY 74003429
13MAY 7701P103-60
14NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
14MAY 7744P076-60
14MAY 7744P075-60
1574002481 Whirlpool Screw
16MAY 74002551
17MAY 74002397
18MAY 74002398
18SCREW
19MAY 8016P015-60
20WP2411F013-70 Whirlpool Door Handle
21MAY 74001814
