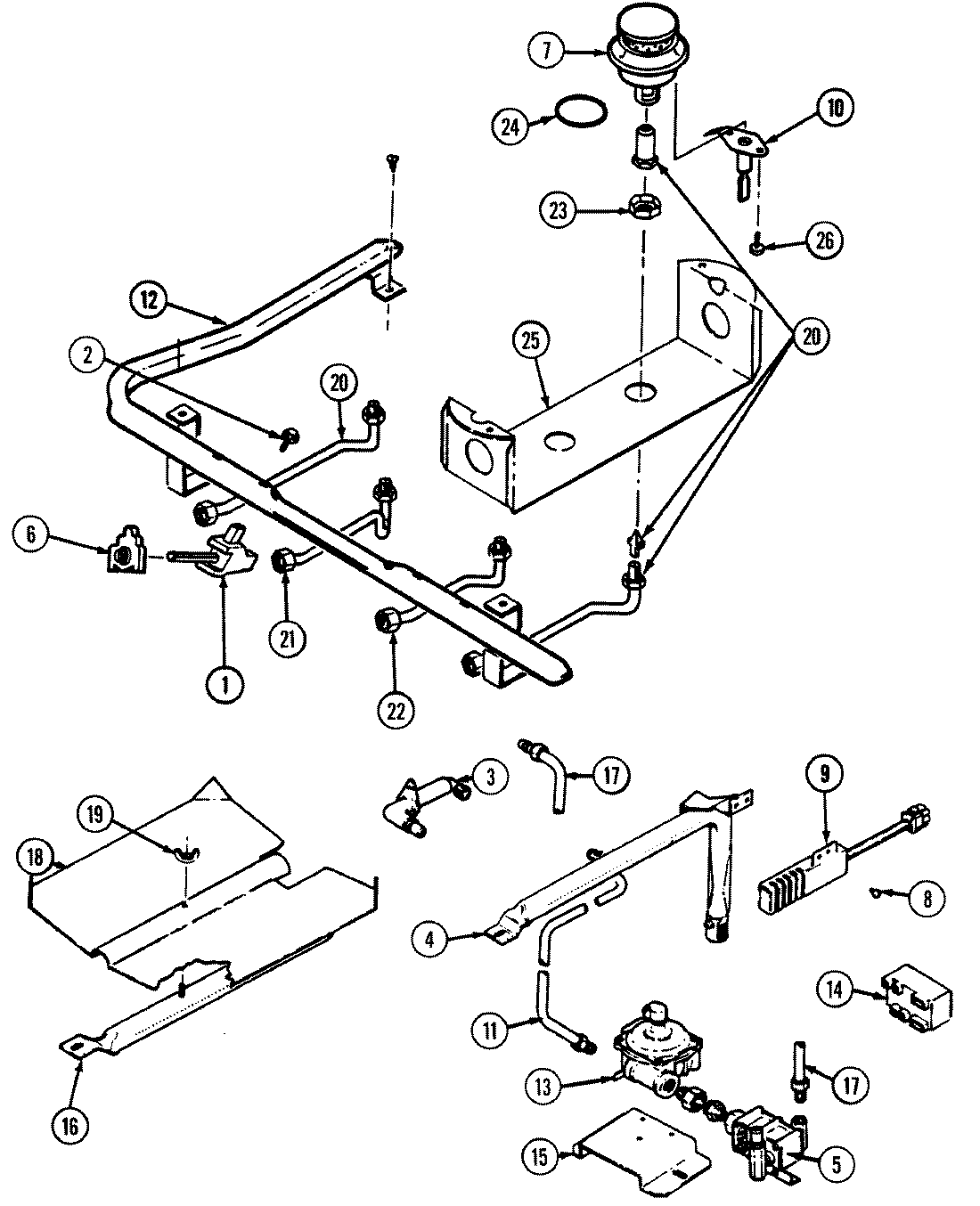

6458XRS 03 – GAS CONTROLS

6458XRS 03 – GAS CONTROLS

Products

PositionProduct
1MAY 7502P217-60
2MAY 7101P044-60
3MAY 7507P088-60
3MAY 3605F186-45
4MAY 3807F446-45
4MAY 3403D043-45
5WP74006427 Whirlpool Oven Valve
6WP7403P279-60 Whirlpool Igniter Switch
7MAY 3412D017-09
8SCREW (10-24X5/16-NI)
9MAY 7432P076-60
10NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
11MAY 3414F103-44
12MAY 7103P130-60
12MAY 7513P160-60
12MAY 7513P125-60
13MAY 7101P290-60
13MAY 7510P050-60
14MAY 7431P023-60
14MAY 3801F270-45
15MAY 8020P007-60
16MAY 3403D024-45
17MAY 3414F102-44
18MAY 3601F217-45
19NUT, WING
20MAY 7507P087-60
21MAY 7507P086-60
22MAY 7507P089-60
23MAY 7103P119-60
24MAY 7201P050-60
25MAY 3807F451-45
25MAY 3411F007-34
26MAY 5195D111-60
26MAY 5140D038-60
26MAY 7101P315-60
26MAY 5185D274-60
26MAY 5125A312-60
