6458XTS 01 – BODY – Aparts

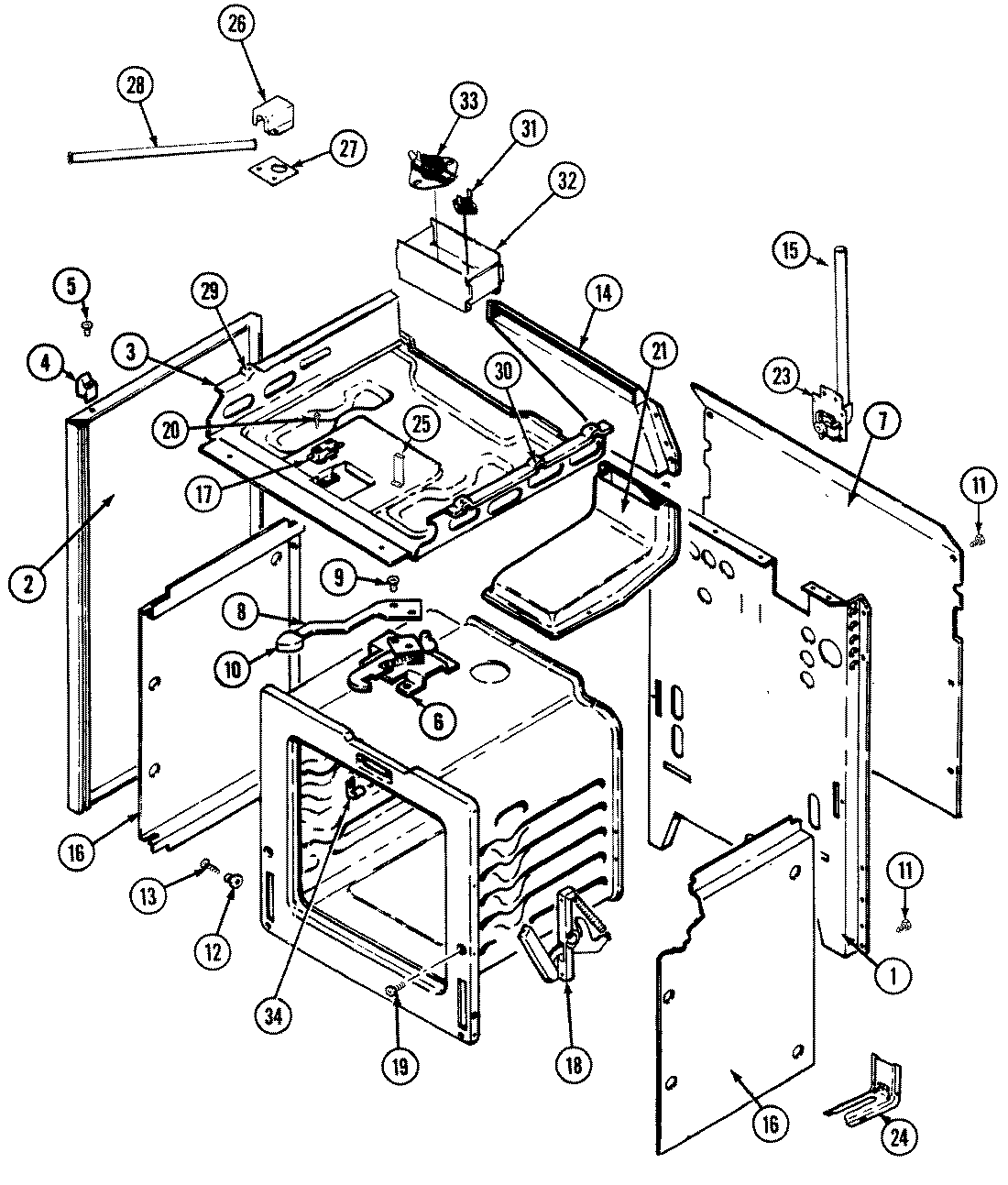

6458XTS 01 – BODY

Products

Position	Product
1	MAY 4002F188-80
2	MAY 2618F096-70
2	MAY 2618F095-70
3	MAY 4011F231-80
3	MAY 4011F223-80
4	SPACER, MAIN TOP (RT)
4	SPACER, MAIN TOP (LT)
5	MAY 7118P013-60
6	MAY 8002P027-60
6	MAY 4804F028-60
7	MAY 4005F355-51
8	MAY 8009P015-60
8	MAY 7109P015-60
9	SCREW, LEVER
10	MAY 7701P089-60
11	MAY 7101P290-60
12	MAY 8004P024-60
13	MAY 7101P300-60
14	MAY 7403P249-60
14	MAY 4022W004-45
15	MAY 7112P003-60
16	MAY 3804F103-51
17	MAY 7403P228-60
17	MAY 3801F267-45
18	MAY 7106P056-60
19	SCREW, HINGE
20	MAY 7101P031-60
21	MAY 4006W113-45
22	MAY 3807F451-45
23	MAY 7427P013-60
24	MAY 3801F218-51
24	MAY 7101P289-60
25	MAY 3801F292-51
26	MAY 4006F134-51
27	MAY 4011F156-51
28	MAY 7506P124-60
29	MAY 3604F173-51
30	MAY 3604F174-51
30	BAFFLE,VENT COVER
31	MAY 7403P004-60
31	MAY 7101P076-60
32	MAY 3807F420-51
33	MAY 8004P007-60
33	MAY 7403P275-60
34	WP7112P004-60 Whirlpool Thermal Clip
35	MAY 8026P021-60
