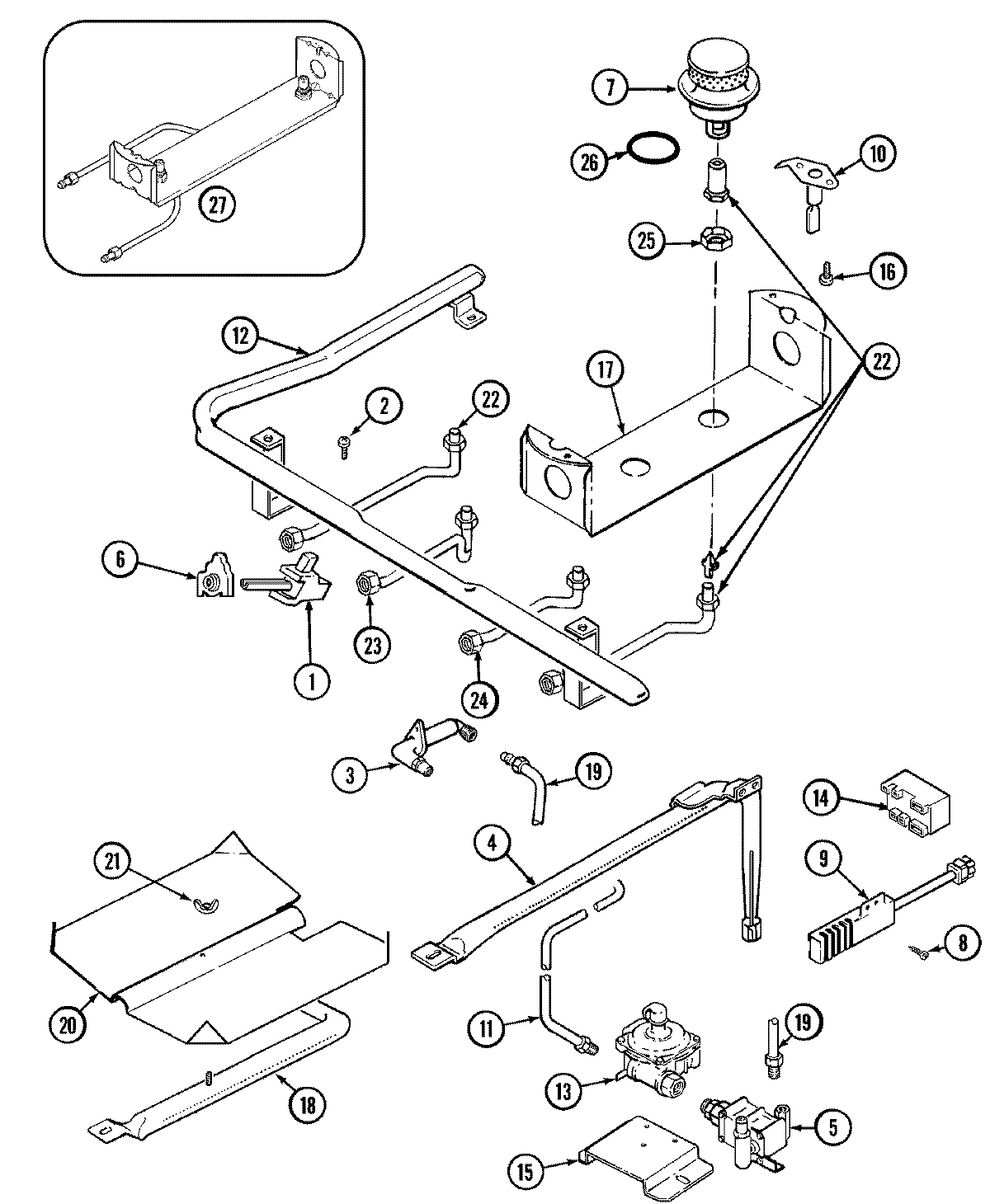

6498VTA 02 – GAS CONTROLS

Products

Position	Product
1	MAY 7502P251-60
2	MAY 7101P044-60
3	MAY 7507P088-60
3	MAY 3605F186-45
4	MAY 3403D043-45
4	MAY 3807F446-45
5	WP74006427 Whirlpool Oven Valve
6	WP7403P279-60 Whirlpool Igniter Switch
7	MAY 3412D018-09
8	SCREW (10-24X5/16-NI)
9	MAY 7432P076-60
10	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
11	MAY 3414F103-44
12	MAY 7103P130-60
12	MAY 7513P121-60
13	MAY 7510P050-60
13	MAY 7101P290-60
14	MAY 3801F270-45
14	MAY 7431P023-60
14	MAY 7431P027-60
15	MAY 8020P007-60
16	MAY 7101P315-60
17	MAY 3807F451-45
18	MAY 3403D024-45
19	MAY 3414F102-44
20	MAY 3601F217-45
21	NUT, WING
22	MAY 7507P087-60
23	MAY 7507P086-60
24	MAY 7507P089-60
25	MAY 7103P119-60
26	MAY 7201P050-60
27	MAY 5187D036-60
27	MAY 5187D037-60
27	MAY 5195D111-60
27	MAY 5140D038-60
27	MAY 5125A312-60
27	MAY 5185D274-60
27	MAY 3411F007-34
