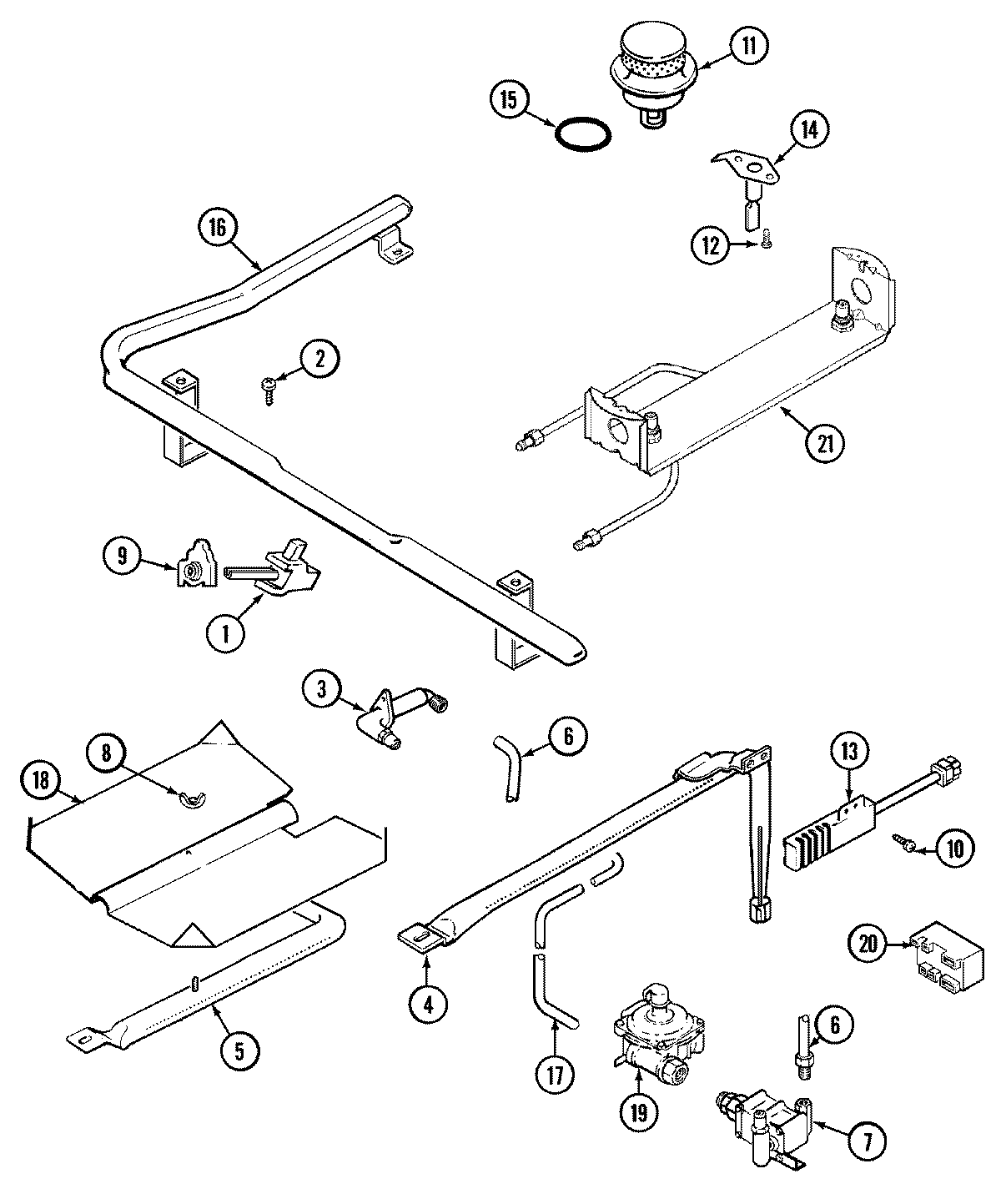

6498VVV 04 – GAS CONTROLS

Products

Position	Product
1	MAY 7502P251-60
2	MAY 7101P044-60
3	MAY 7507P088-60
3	MAY 3605F186-45
4	MAY 3403D043-45
4	MAY 3807F446-45
5	MAY 3403D024-45
6	MAY 3414F102-44
7	WP74006427 Whirlpool Oven Valve
8	NUT, WING
9	WP7403P279-60 Whirlpool Igniter Switch
10	WP3351614 Whirlpool Screw
11	MAY 3412D018-26
12	MAY 7101P315-60
13	MAY 4005F421-45
13	MAY 7432P076-60
14	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
15	MAY 7201P050-60
16	MAY 7513P121-60
16	MAY 7103P130-60
17	MAY 3414F103-44
18	MAY 3601F217-47
19	WP74006429 Whirlpool Regulator
20	MAY 74003288
20	MAY 7431P027-60
21	MAY 5187D036-60
21	MAY 5187D037-60
22	MAY 5140D038-60
22	MAY 5125A312-60
