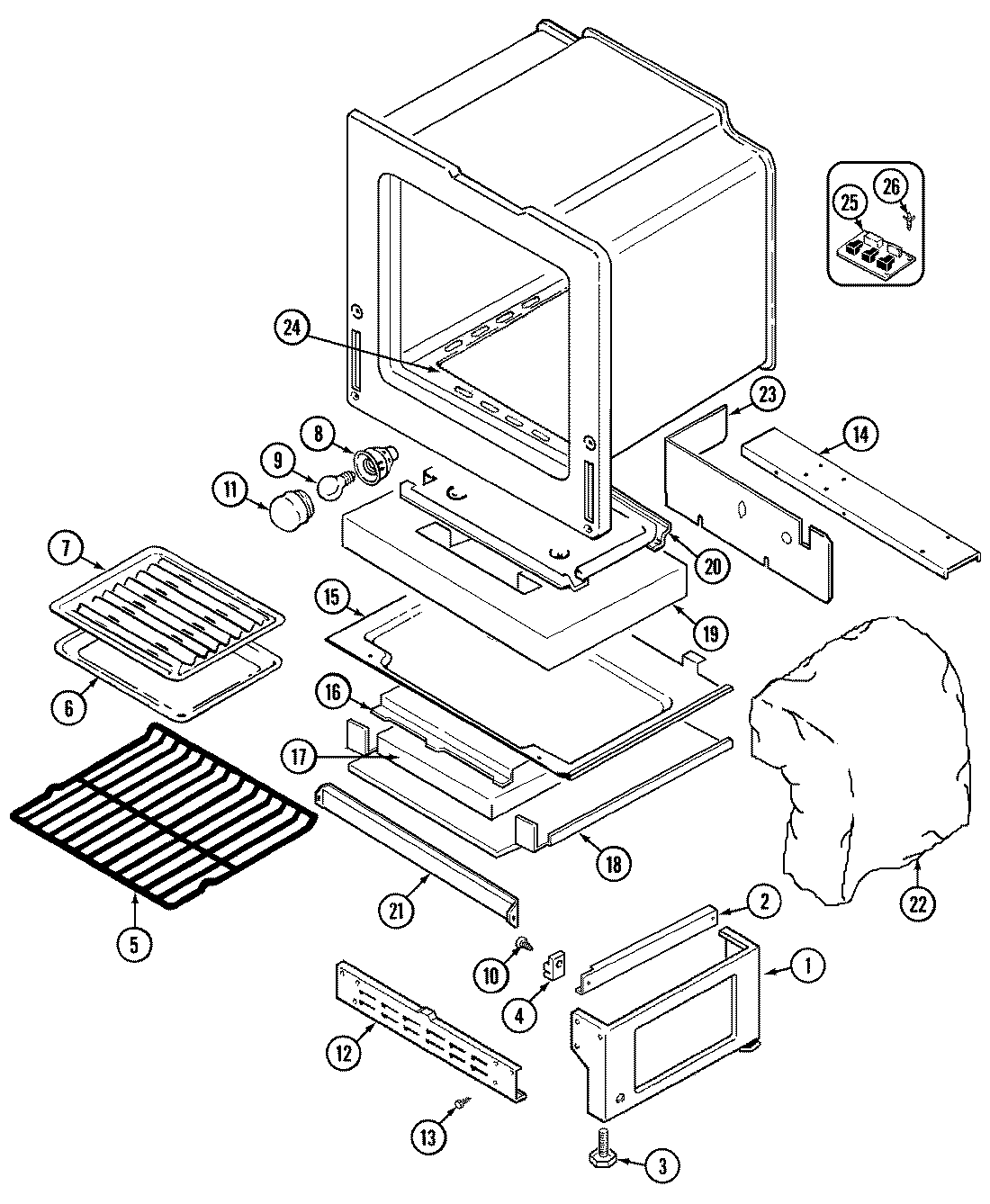

6498VVV 05 – OVEN/BASE
Written by
in
6498VVV 05 – OVEN/BASE
Products
Position
Product
1
MAY 4020W009-80
2
RUNNER, DRAWER
2
MAY 3406F028-51
3
MAY 7101P316-60
3
W11665456 Whirlpool Range Level Foot
4
MAY 74003566
4
MAY 8004P025-60
5
MAY 7801P040-60
6
MAY Y3401F02019
7
MAY Y3413F01619
8
MAY 74003125
8
WP7407P182-60 Whirlpool Lamp
9
RANGE ONLY 40W 120V APPL BULB
10
SCREW
11
WP9781049 Whirlpool Light Lens
12
MAY 4020F001-80
13
MAY 7101P290-60
14
MAY 3807F447-51
15
MAY 3804F109-51
16
MAY 3604F204-51
17
INSULATION, DRAWER & SHIELD
18
MAY 3604F205-51
19
MAY 4804F014-60
20
MAY 3401F024-45
21
BAFFLE, OVEN FRONT
21
MAY 3601F208-45
22
MAY 4804F030-60
22
MAY 4804F029-60
23
MAY 4005F429-51
24
MAY 3601F229-45
24
MAY 3804F010-50
24
MAY 5504M004-19
25
MAY 7428P020-60
25
MAY 74003168
26
MAY 8004P020-60
27
MAY 4005F420-80
←
