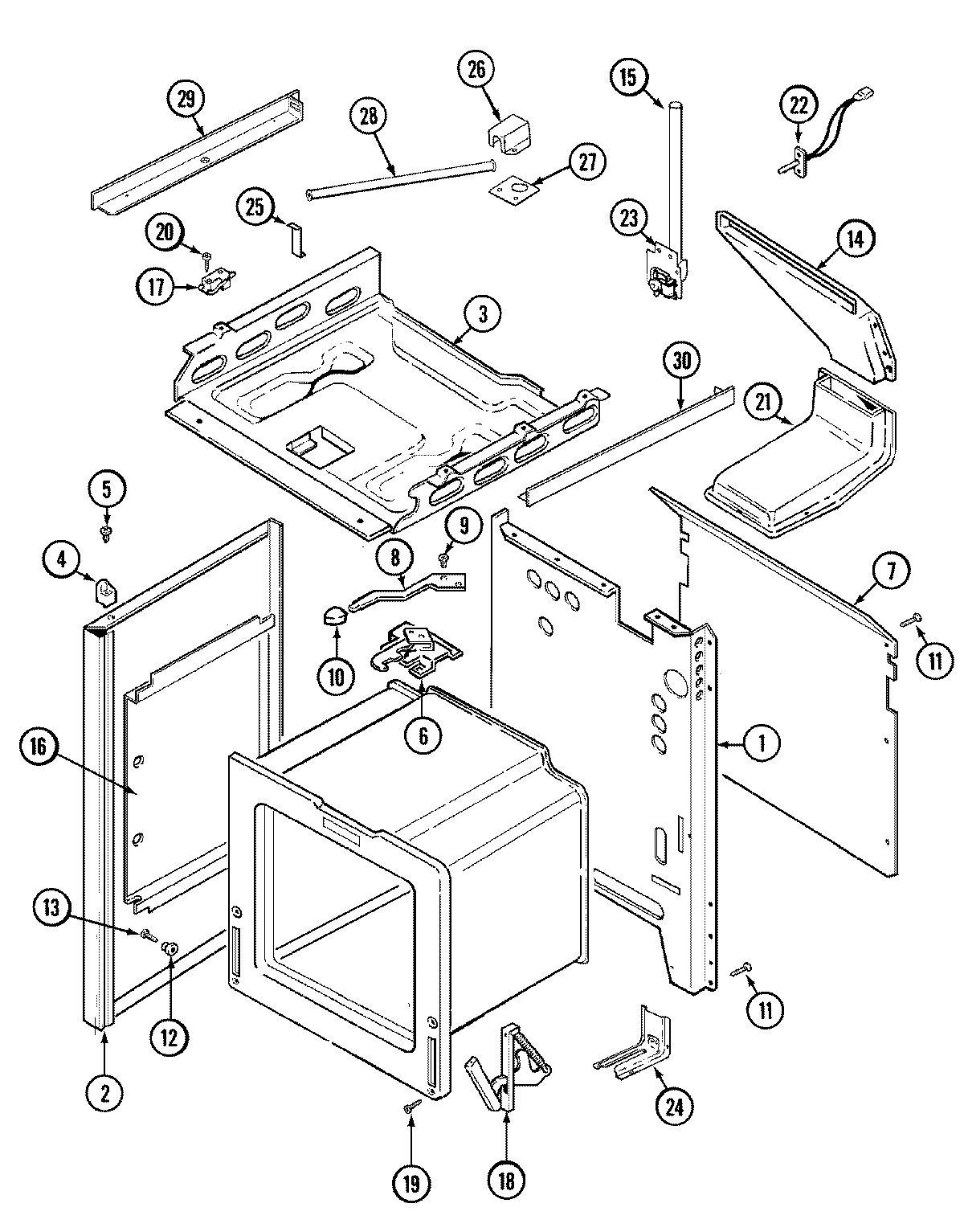

6498XVB 01 – BODY

Products

Position	Product
1	MAY 4002F211-80
2	MAY 2618F106-70
2	MAY 2618F107-70
3	MAY 4011F231-80
3	MAY 4011F250-80
4	SPACER, MAIN TOP (LT)
4	SPACER, MAIN TOP (RT)
5	MAY 7118P013-60
6	MAY 4804F028-60
6	MAY 8002P027-60
6	MAY 74001069
6	MAY 74001084
7	MAY 4005F355-51
8	MAY 74003005
8	MAY 8009P028-60
8	MAY 8009P025-60
8	MAY 7112P112-60
8	MAY 7109P015-60
9	SCREW, LEVER
11	MAY 7101P290-60
12	MAY 8004P024-60
13	MAY 7101P300-60
14	MAY 4022W009-45
14	MAY 74002333
14	MAY 7403P249-60
15	MAY 8026P021-60
16	MAY 3804F103-51
17	MAY 3801F267-45
17	MAY 7403P363-60
17	MAY 7003P063-60
17	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
17	MAY 7403P361-60
18	MAY 7106P056-60
18	WP74011140 Whirlpool Oven Hinge
19	SCREW, HINGE
20	MAY 7101P130-60
20	MAY 7101P330-60
21	MAY 4006W122-45
22	MAY 7430P009-60
23	MAY 7427P013-60
24	MAY 3801F218-51
24	MAY 7101P289-60
25	MAY 3801F292-51
26	MAY 4006F134-51
27	MAY 4011F156-51
28	MAY 7506P124-60
29	MAY 3604F173-51
30	MAY 3604F174-51
