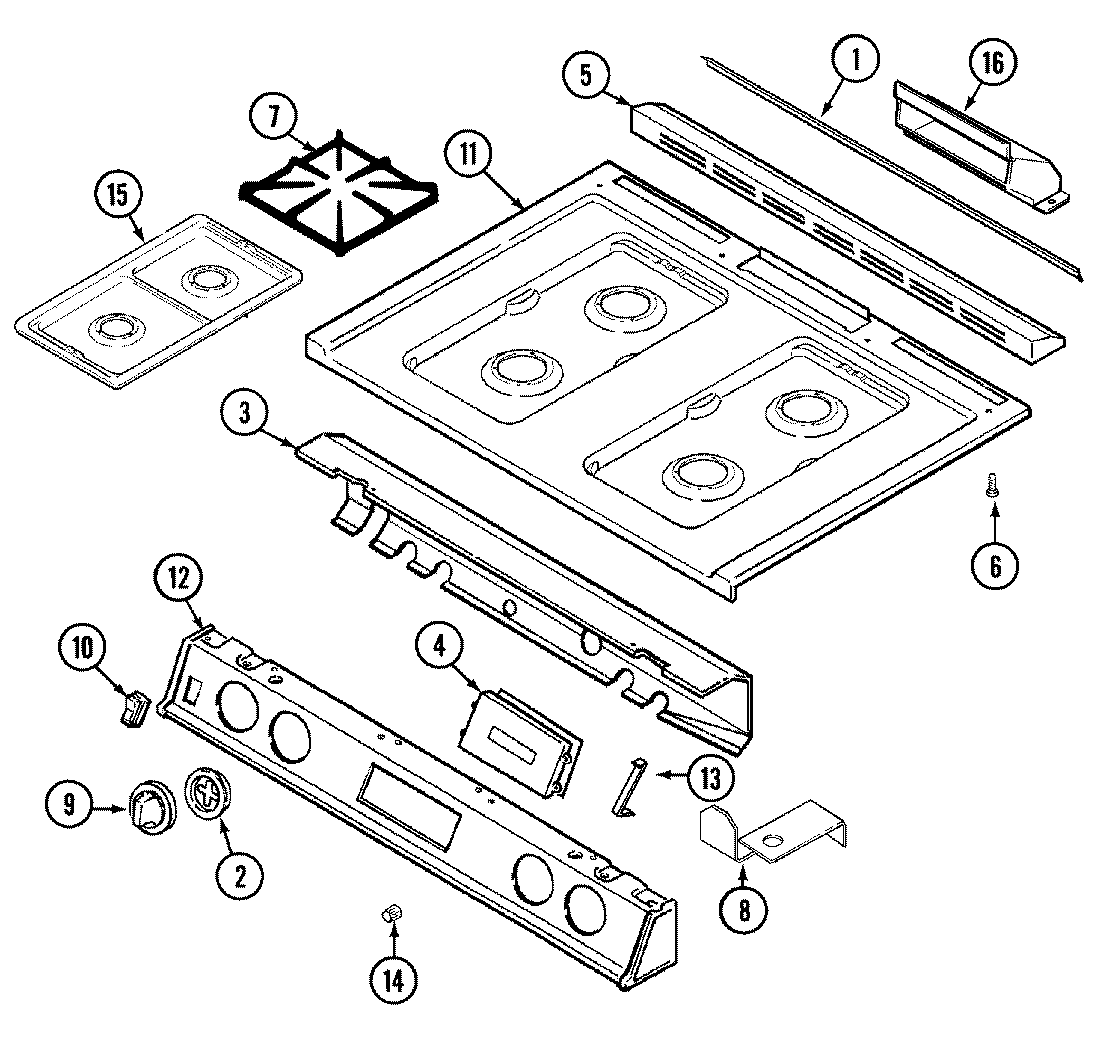

6498XVS 06 – TOP ASSEMBLY

Products

Position	Product
1	MAY 7201P061-60
2	WP7740P058-60 Whirlpool Knob Bezel
3	MAY 74002588
3	MAY 74001542
4	MAY 7601P276-60
4	MAY 74002299
5	MAY 4825D001-59
6	SCREW
7	MAY 74001653
7	MAY 2003W027-00
7	WP7518P464-60 Whirlpool Burner Grate
8	MAY 3801F318-51
9	WP74003781 Whirlpool Valve Knob
10	7403P067-60 Whirlpool Light Switch
11	MAY 2001W089-30
12	MAY 74003359
12	MAY 7712P196-60
13	SCREW (8BX3/8-NI)
13	MAY 3801F349-51
14	MAY 7711P431-60
14	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
15	MAY 74001575
15	MAY 5401A452-60
15	MAY 5170P228-60
15	MAY 5125A312-60
15	MAY 5195D105-60
16	MAY 16007437
16	WP59002061 Whirlpool Microwave Screw
16	BAFFLE,VENT COVER
16	MAY 8113P066-60
17	MAY 16000329
