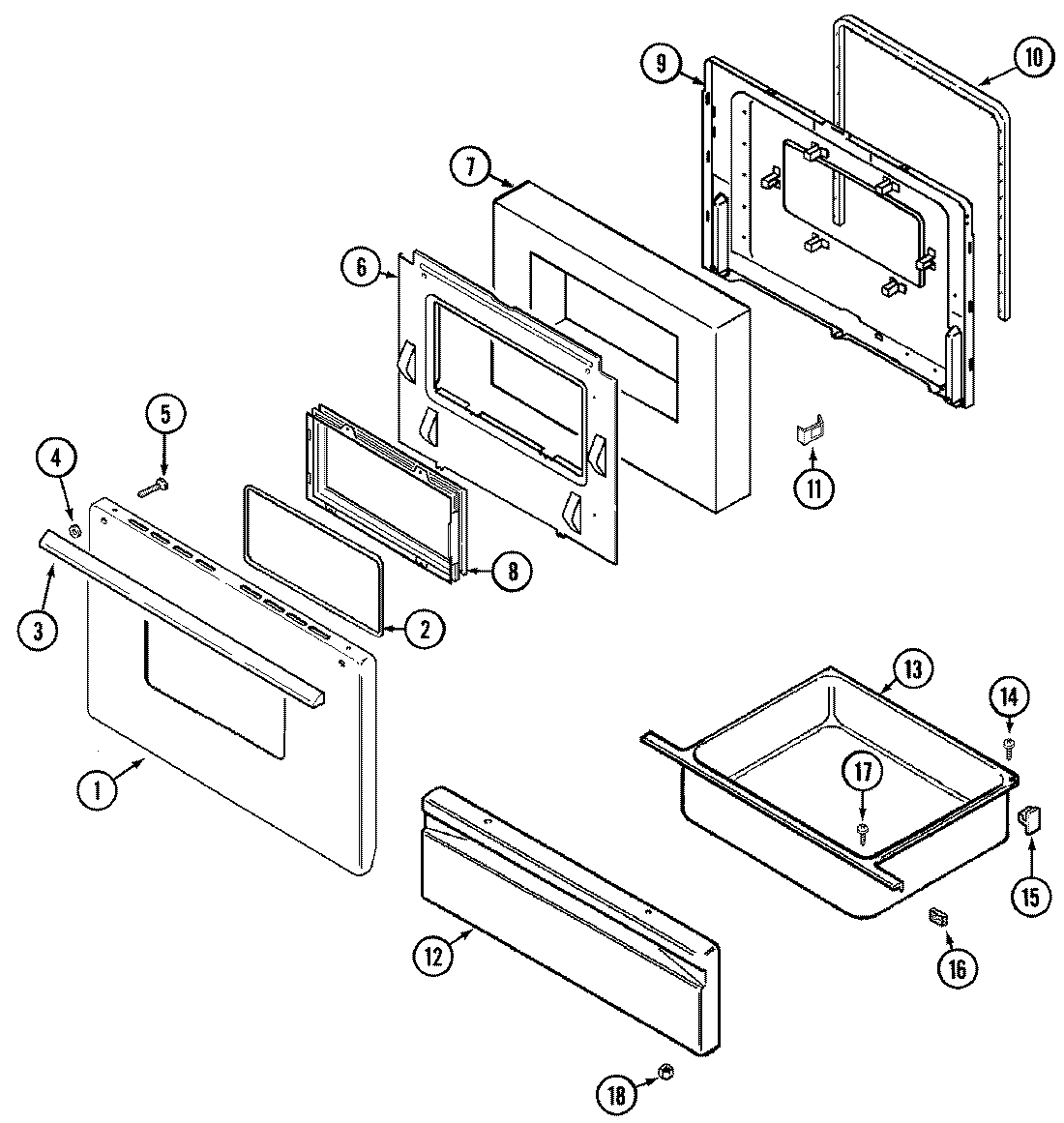

6551WUA 02 – DOOR/DRAWER (6551WUx)

6551WUA 02 – DOOR/DRAWER (6551WUx)

Written by

in

6551WUA 02 – DOOR/DRAWER (6551WUx)

Products

PositionProduct
1MAY 2401F121-74
2MAY 7201P017-60
3MAY 7701P030-60
3WP2411F013-70 Whirlpool Door Handle
4MAY 8010P084-60
5MAY 7101P080-60
6MAY 3601F236-47
7MAY 4804F050-60
8MAY 7907P015-60
9MAY 2402W212-19
9MAY 74003247
10WP7212P043-60 Whirlpool Oven Door Seal Gasket
11CLIP, DOOR
12MAY 2416F038-64
13MAY 3405F014-80
15MAY 74002312
15WP8004P026-60 Whirlpool Support
16MAY 7208P011-60
17SCREW
18WPW10131078 Whirlpool Nut Assembly
