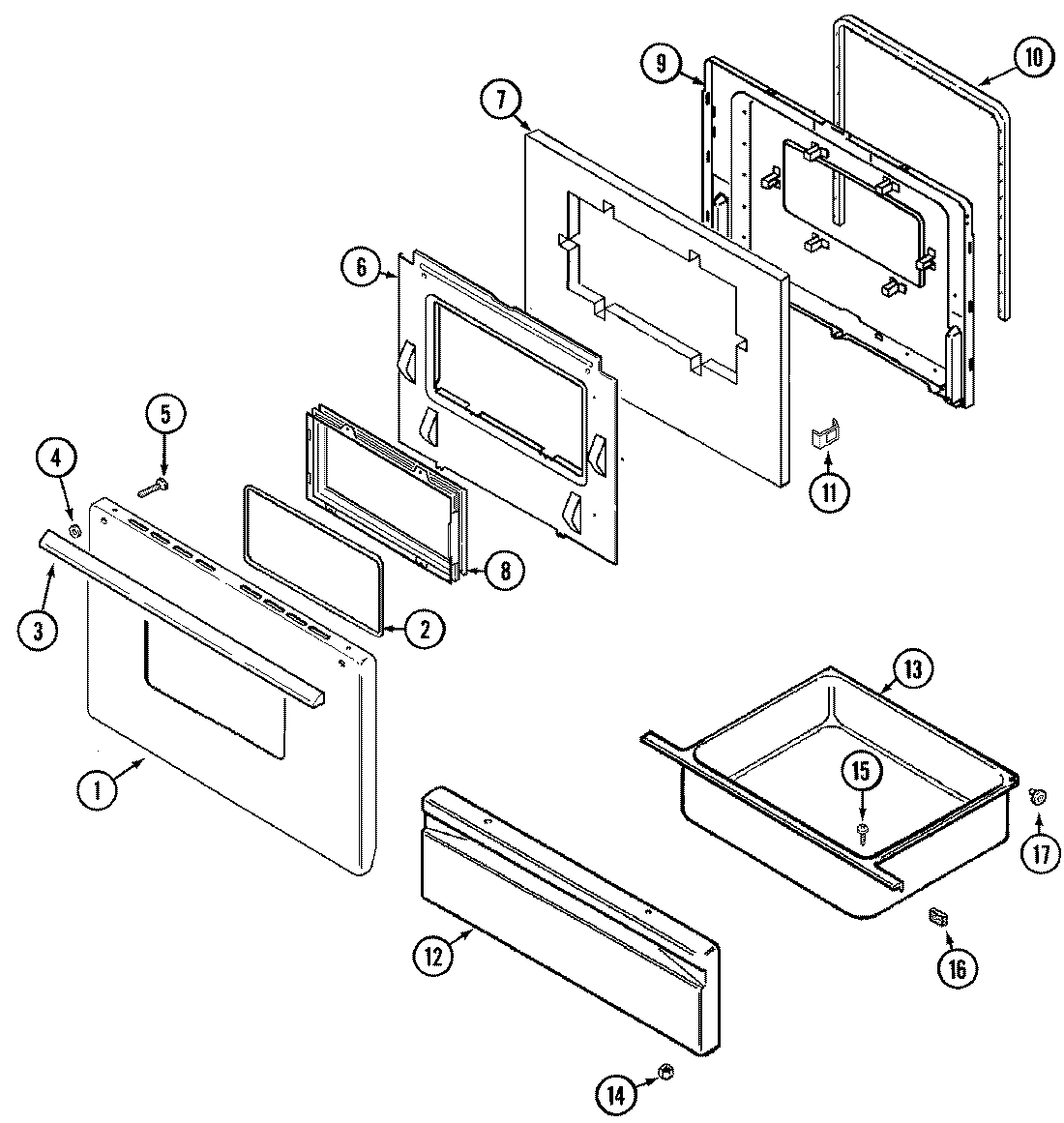

6551WUW 03 – DOOR/DRAWER (WUW SERIES 27)

6551WUW 03 – DOOR/DRAWER (WUW SERIES 27)

Written by

in

6551WUW 03 – DOOR/DRAWER (WUW SERIES 27)

Products

PositionProduct
1MAY 2401F121-71
2MAY 7201P017-60
3WP2411F013-70 Whirlpool Door Handle
4MAY 8010P084-60
5WP3387230 Whirlpool Screw
6MAY 3601F236-51
7MAY 4804F050-60
8MAY 7907P015-60
8SCREW
9MAY 74003247
10WP7212P043-60 Whirlpool Oven Door Seal Gasket
11CLIP, DOOR
12PANEL, DRAWER (WHT)
13MAY 71003042
14WPW10131078 Whirlpool Nut Assembly
15WP7101P072-60 Whirlpool Screw
16MAY 7208P011-60
17MAY 74003566
17WP488130 Whirlpool Air Conditioner Nut
