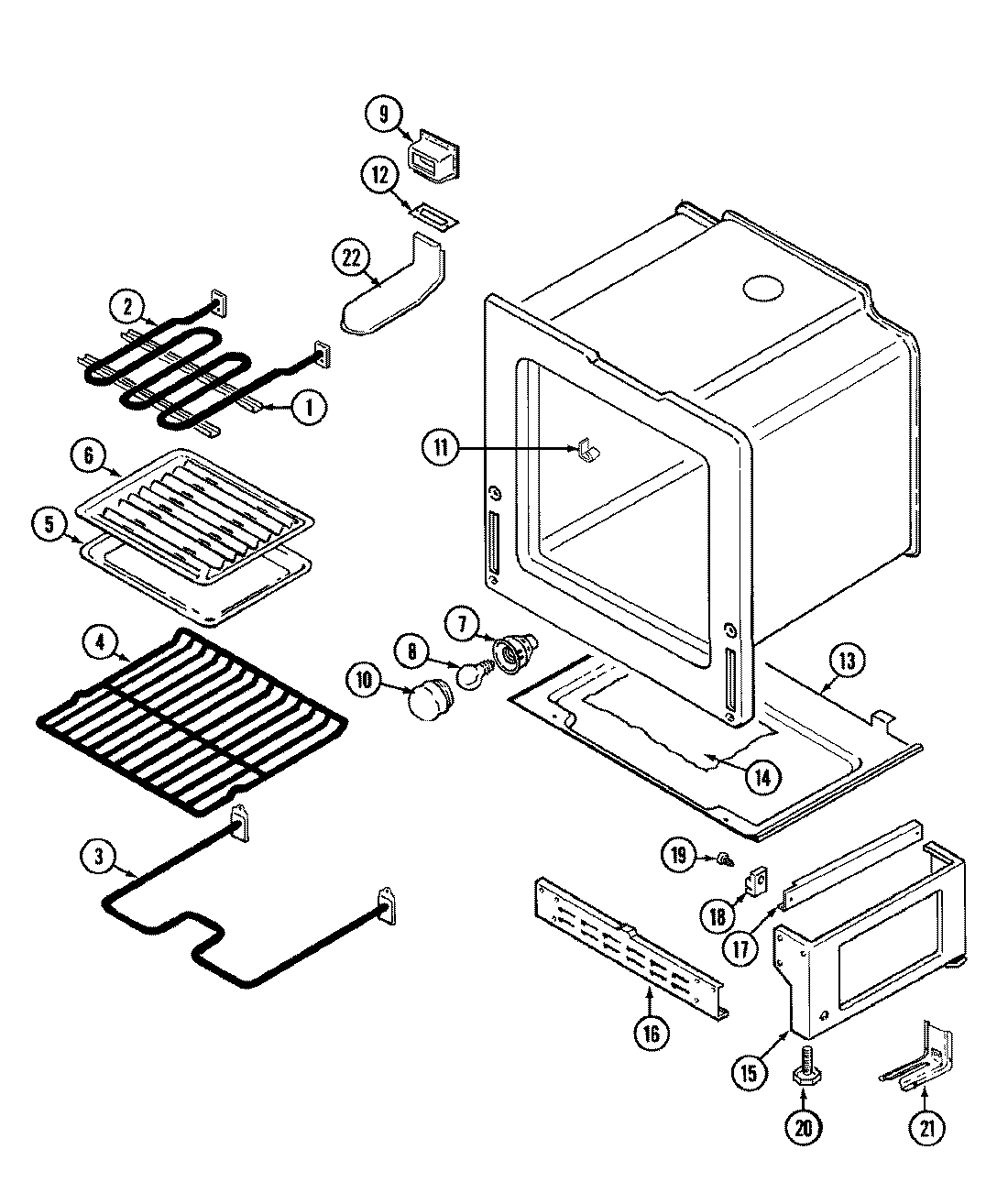

6551XUB 04 – OVEN/BASE

Products

Position	Product
1	MAY 3807F389-45
2	MAY 7406P072-60
3	WP74003019 Whirlpool Oven Bake Element
4	WPW10282492 Whirlpool Oven Rack
5	MAY Y3401F02019
6	MAY Y3413F01619
7	MAY 74003125
7	WP7407P182-60 Whirlpool Lamp
7	SCREW
8	MAY Y707319
9	MAY 3826W014-45
10	WP9781049 Whirlpool Light Lens
11	WP7112P004-60 Whirlpool Thermal Clip
12	MAY 7201P060-60
13	MAY 3804F112-51
14	MAY 8312P058-60
15	MAY 74003003
15	MAY 74001705
16	MAY 4020F001-80
17	MAY 3406F028-51
17	RUNNER, DRAWER
18	MAY 74002312
18	WP488130 Whirlpool Air Conditioner Nut
18	MAY 74003566
19	MAY 74001449
19	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
20	MAY 4005F420-80
20	W11665456 Whirlpool Range Level Foot
20	MAY 7101P316-60
21	MAY 74002311
21	WP7101P485-60 Whirlpool Anchor Tip
22	MAY 4006W112-45
