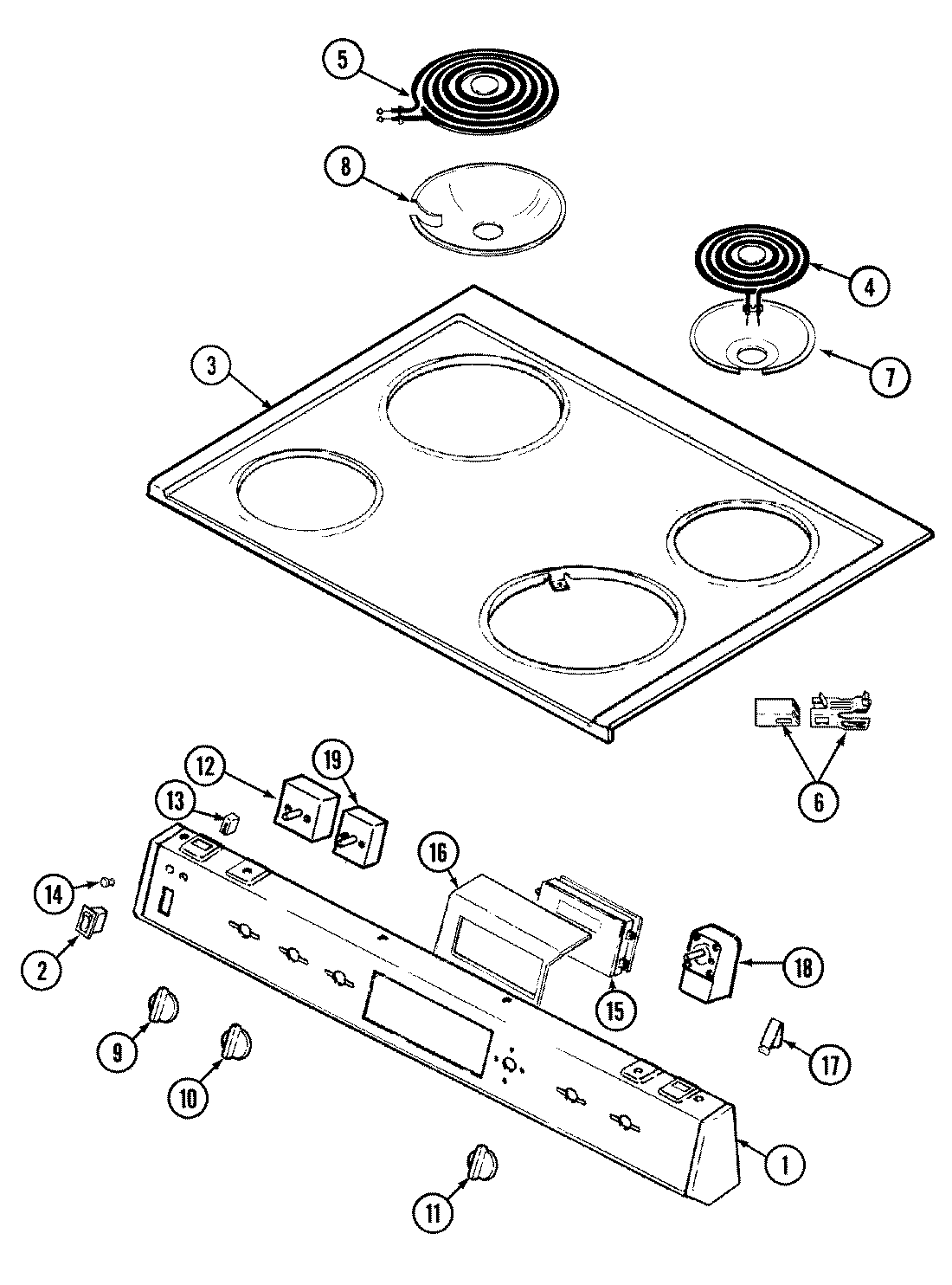

6551XUB 05 – TOP ASSEMBLY

Products

Position	Product
1	MAY 74003231
1	MAY 7722P127-60
2	7403P067-60 Whirlpool Light Switch
3	MAY 7706P301-60
3	MAY 74001246
4	MAY 74004090
4	WPW10259868 Whirlpool Surface Heating Element
5	MAY 74004089
5	MAY 12001230
6	MAY 7118P013-60
6	MAY 1430306K
7	WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
8	MAY Y04100393
9	WP7737P030-60 Whirlpool Knob Switch
10	MAY 7739P041-60
11	MAY 7735P036-60
12	WP7403P239-60 Whirlpool Oven Switch
12	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
13	W10852510 Whirlpool Indicator Light
14	W11690131 Whirlpool Light Lens
15	MAY 7602P119-60
16	MAY 3801F332-45
16	SCREW (8BX3/8-NI)
16	MAY 74003890
17	MAY 7112P087-60
18	MAY 7404P072-60
18	SCREW
19	WP7403P255-60 Whirlpool Selector Switch
20	MAY 5195D094-60
20	MAY 74001588
21	MAY 8113P023-60
