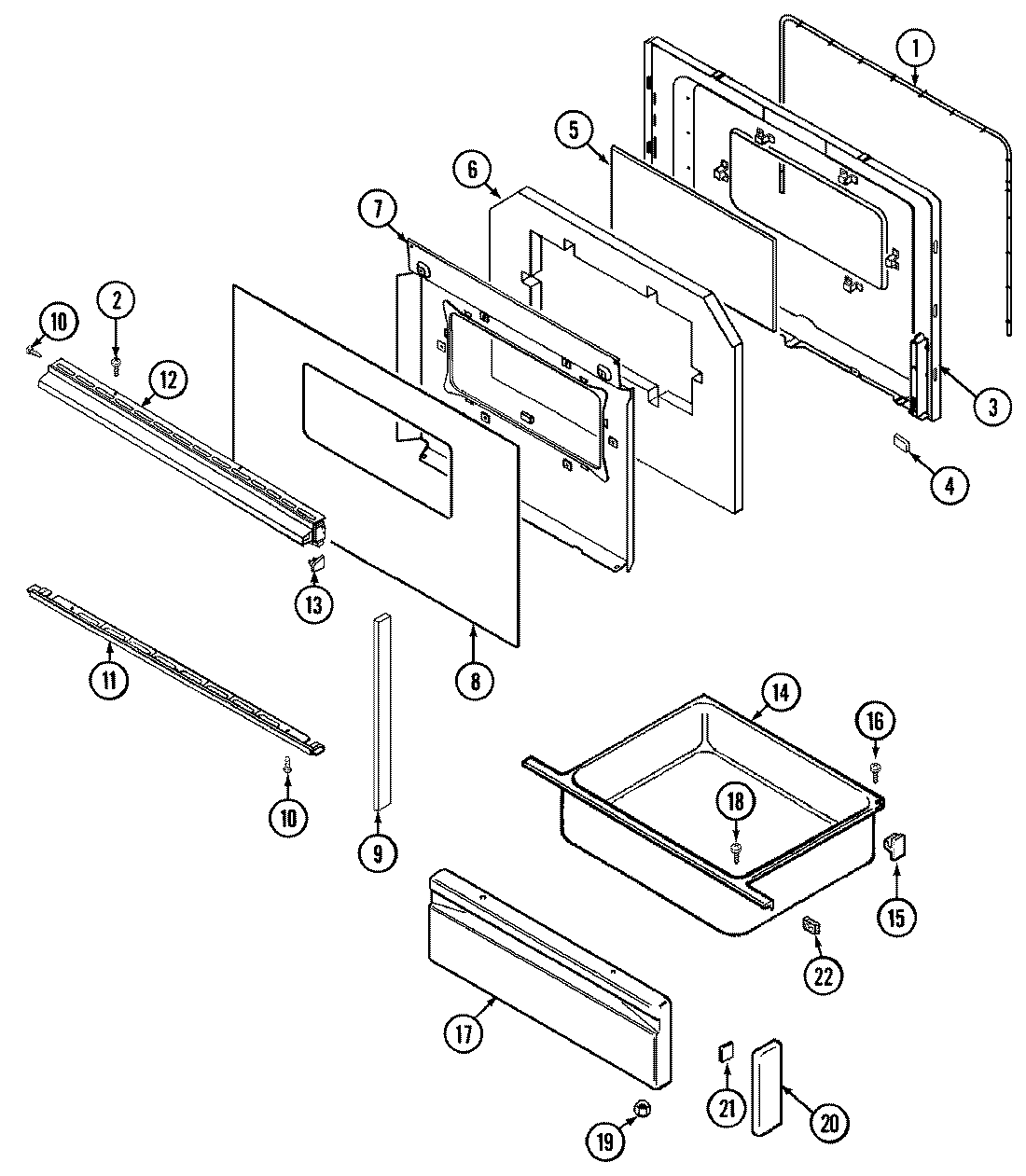

6551XUW 02 – DOOR/DRAWER (6551XUx)

6551XUW 02 – DOOR/DRAWER (6551XUx)

Written by

in

6551XUW 02 – DOOR/DRAWER (6551XUx)

Products

PositionProduct
1WP7212P043-60 Whirlpool Oven Door Seal Gasket
2WP98008545 Whirlpool Screw
3MAY 74003248
3MAY 74002460
4MAY 8010P085-60
5MAY 7902P319-60
6MAY 7002P158-60
7MAY 3601F240-80
8MAY 7902P321-60
9MAY 7744P055-60
9MAY 74002084
11MAY 7744P105-60
12MAY 7701P144-60
12MAY 7701P103-60
13MAY 74002540
13MAY 7744P075-60
13MAY 7744P076-60
13MAY 74002539
14MAY 3405F018-80
15WP8004P026-60 Whirlpool Support
16SCREW
17MAY 2416F038-65
18MAY 7101P037-60
19WPW10131078 Whirlpool Nut Assembly
20MAY 7744P068-60
21TAPE
21NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
22WP854334 Whirlpool Air Conditioner Sealing Strip
