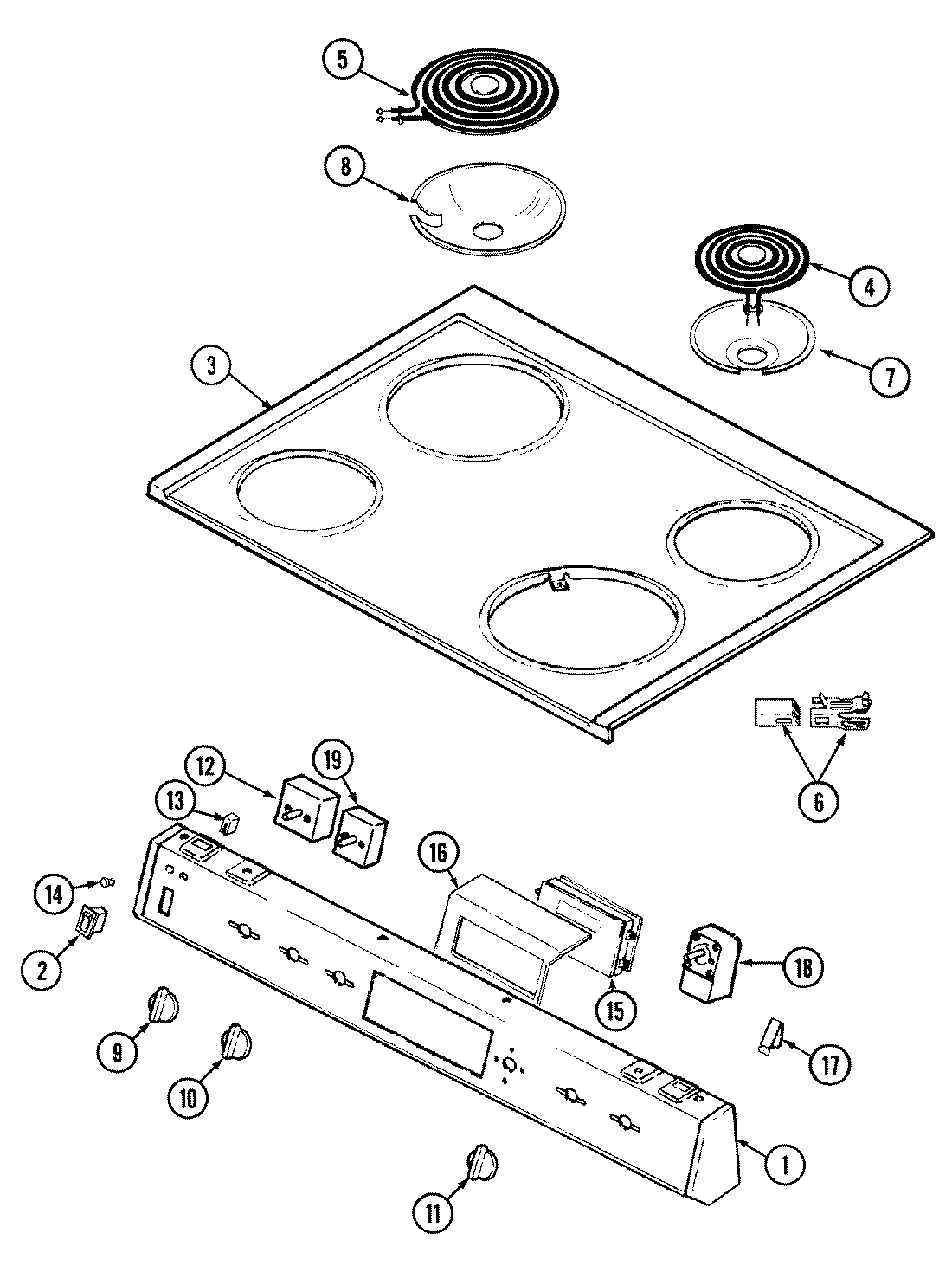

6551XUW 04 – TOP ASSEMBLY

6551XUW 04 – TOP ASSEMBLY

Written by

in

6551XUW 04 – TOP ASSEMBLY

Products

PositionProduct
1MAY 7722P127-60
1MAY 74003231
27403P067-60 Whirlpool Light Switch
3MAY 2002W084-81
3MAY 7706P301-60
4WPW10259868 Whirlpool Surface Heating Element
4MAY Y04000032
5MAY 7406P080-60
5MAY Y04000031
6MAY 1430306K
6MAY 7118P013-60
7MAY 7725P008-60
7WPW10196406 Whirlpool 6" Chrome Drip Bowl
8DRIP BOWL 8" W/HOLE CHROME
8MAY 7725P009-60
9WP7737P030-60 Whirlpool Knob Switch
10MAY 7739P041-60
11MAY 7735P036-60
12WP7403P238-60 Whirlpool Infinite Switch (Small Element)
12WP7403P239-60 Whirlpool Oven Switch
13W10852510 Whirlpool Indicator Light
14W11690131 Whirlpool Light Lens
15MAY 7602P119-60
16SCREW (8BX3/8-NI)
16MAY 3801F332-45
17MAY 7112P087-60
18SCREW
18MAY 7404P072-60
19WP7403P255-60 Whirlpool Selector Switch
20MAY 74001588
20MAY 5195D094-60
21MAY 8113P023-60
