66514815N613 02 – DOOR PANEL PARTS

66514815N613 02 – DOOR PANEL PARTS

Written by

in

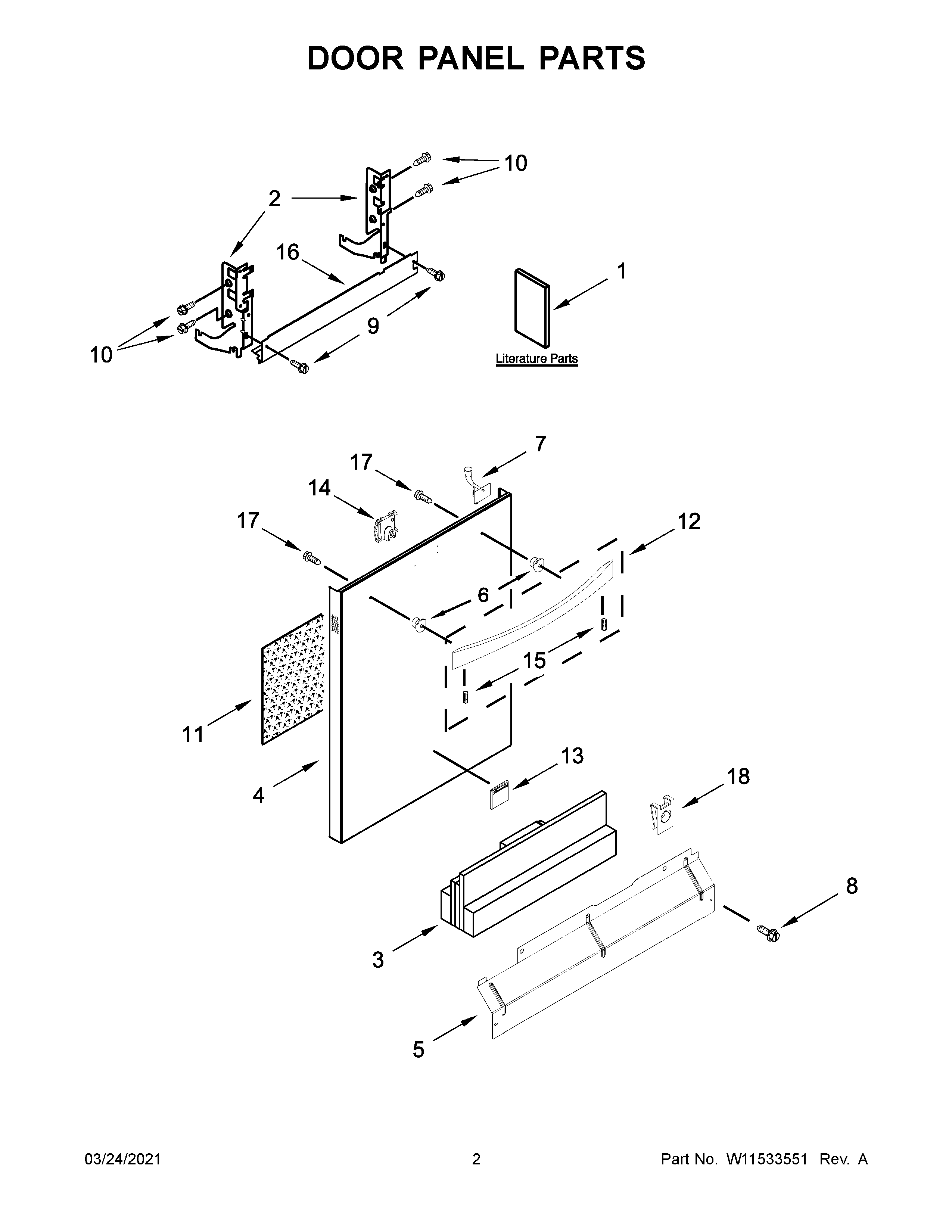

66514815N613 02 – DOOR PANEL PARTS

Products

PositionProduct
1CTECH SHEET
1INSTALLATION INSTRUCTIONS
1AENERGY GUIDE
1BUSE & CARE GUIDE
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W11223838 Whirlpool Shield
4W11435873 Whirlpool Panel
5W10909064 Whirlpool Dishwasher Black Access Panel
6W11157086 Whirlpool Dishwasher Door Handle Stud
7W10901145 Whirlpool Dishwasher Indicator Light
8WP302868 Whirlpool Screw
9WP489069 Whirlpool Compactor Screw
10WP3400071 Whirlpool Screw
11W11126003 Whirlpool Dishwasher Insulation Pad
12W11558980 Whirlpool Handle Assembly
13NAMEPLATE (STAINLESS)
14W10692757 Whirlpool Dishwasher Nut Assembly
15W11126057 Whirlpool Screw
16W10850371 Whirlpool Dishwasher Door Brace
17W10826179 Whirlpool Dishwasher Screw
18W10910629 Whirlpool Dishwasher Nut
