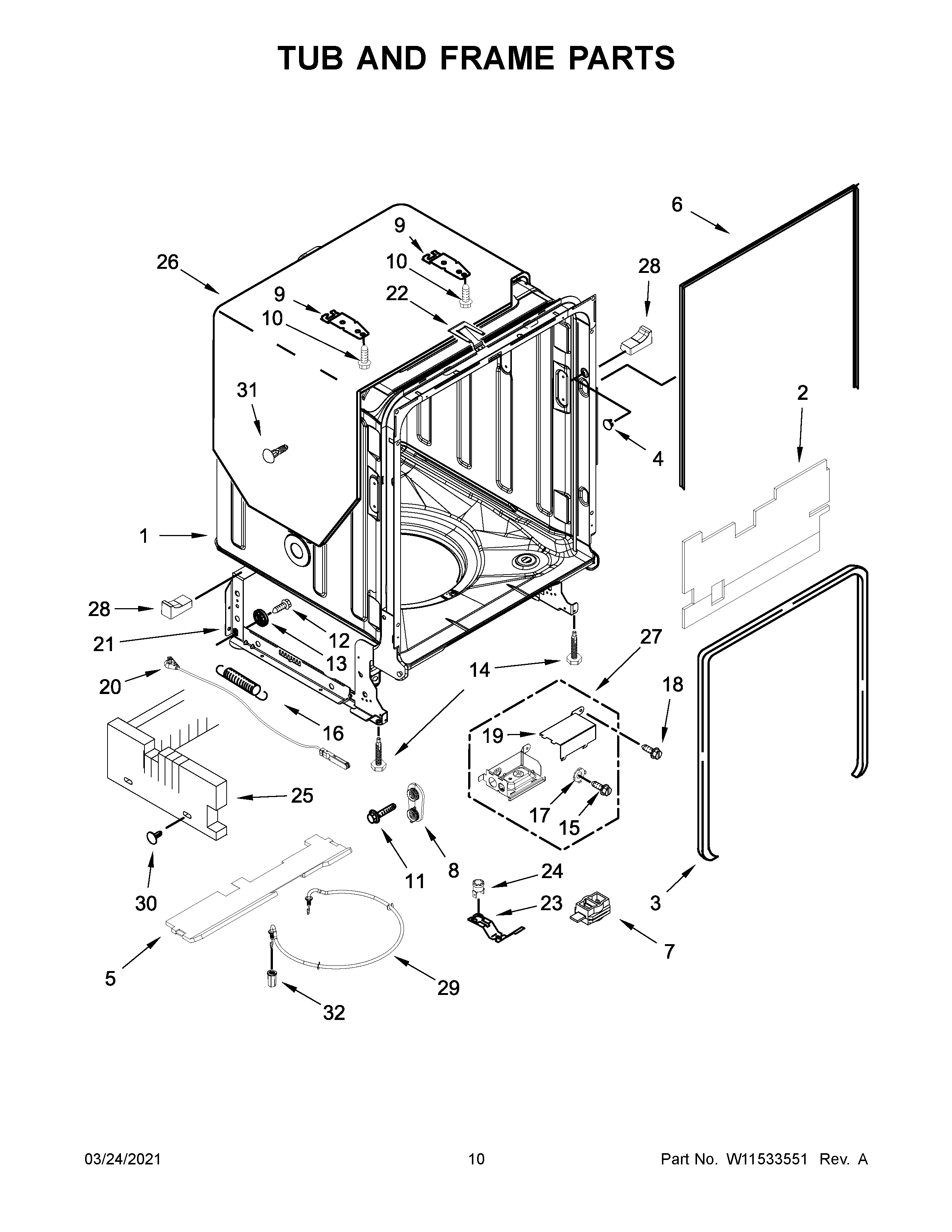

66514815N613 06 – TUB AND FRAME PARTS

Products

Position	Product
1	W10713320 Whirlpool Dishwasher Tub
2	W10380173 Whirlpool Insulation
3	SEAL
4	W10795980 Whirlpool Cap
5	W11747584 Whirlpool Insulation Pad
6	W11177741 Whirlpool Dishwasher Door Gasket
7	W10292870 Whirlpool Dishwasher Housing
8	WPW10084086 Whirlpool Dishwasher Mount
9	WP8269145 Whirlpool Dishwasher Mounting Bracket
10	WP308685 Whirlpool Microwave Screw
11	WP3400074 Whirlpool Dishwasher Screw
12	WPW10348411 Whirlpool Roller Wheel Screw
13	WPW10190778 Whirlpool Dishwasher Wheel
14	8193716 Whirlpool Leveling Leg
15	WP3400014 Whirlpool Dishwasher Screw
16	SPRING
17	WP3378128 Whirlpool Dishwasher Washer
18	WP3400892 Whirlpool Dishwasher Screw
19	W10847918 Whirlpool Dishwasher Cover
20	8194001 Whirlpool Dishwasher Door Balance Link Kit
21	WPW10681564 Whirlpool Dishwasher Support
22	WPW10544004 Whirlpool Dishwasher Strike
23	W10300703 Whirlpool Dishwasher Bracket Stat
24	WPW10195091 Whirlpool Thermostat
25	W10750120 Whirlpool Shield
26	W10877094 Whirlpool Shield
27	W11167239 Whirlpool Dishwasher Cover Assembly
28A	W10195631 Whirlpool Dishwasher Tank Spacer
28	W10195630 Whirlpool Dishwasher Spacer
29	W10703867 Whirlpool Dishwasher Heating Element
30	WPW10486051 Whirlpool Dishwasher Retainer
31	WP304666 Whirlpool Dishwasher Retainer
32	WPW10687139 Whirlpool Dishwasher Terminal Nut
