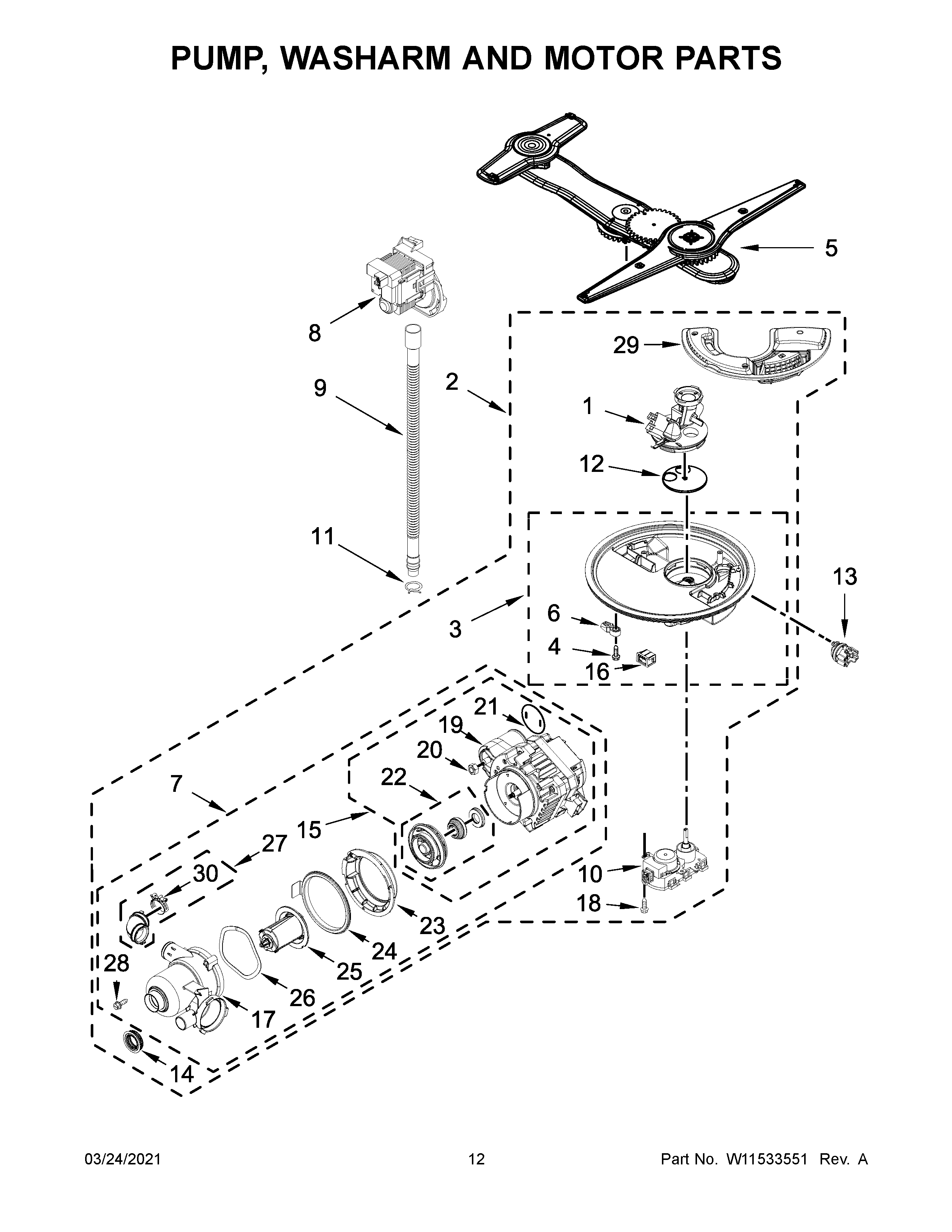

66514815N613 07 – PUMP, WASHARM AND MOTOR PARTS

66514815N613 07 – PUMP, WASHARM AND MOTOR PARTS

Written by

in

66514815N613 07 – PUMP, WASHARM AND MOTOR PARTS

Products

PositionProduct
1W10463895 Whirlpool Dishwasher Cover
2W10902330 Whirlpool Pump and Motor
3W10832796 Whirlpool Sump
4WPW10348407 Whirlpool Dishwasher Screw
5W10859935 Whirlpool Spray Arm Assembly
6WPW10372113 Whirlpool Dishwasher Sump Tab
7W10902589 Whirlpool Dishwasher Pump & Motor Assembly
8PUMP-DRAIN
98269144A Whirlpool Dishwasher Drain Hose
10W10537869 Whirlpool Dishwasher Motor
11WP285655 Whirlpool Hose Clamp
12WPW10476221 Whirlpool Dishwasher Diffuser
13W11084121 Whirlpool Sensor Turbidity
14WPW10538166 Whirlpool Grommet Pump
15W10907617 Whirlpool Pump Assembly
16W10647236 Whirlpool Support
17W10708008 Whirlpool Pump Cover
18WP9741232 Whirlpool Dishwasher Screw
19W11662065 Whirlpool Dishwasher Capacitor
208533949 Whirlpool Dishwasher Nut
21SHIELD, CAPACITOR
22W10783130 Whirlpool Impeller
23W10723279 Whirlpool Volute
24W10380239 Whirlpool Ring
25FILTR-PUMP
26W10772270 Whirlpool Spring Assembly
27W10730897 Whirlpool Hose Assembly
28W10467002 Whirlpool Screw
29W10832799 Whirlpool Screen
30W10783615 Whirlpool Dishwasher Clamp
