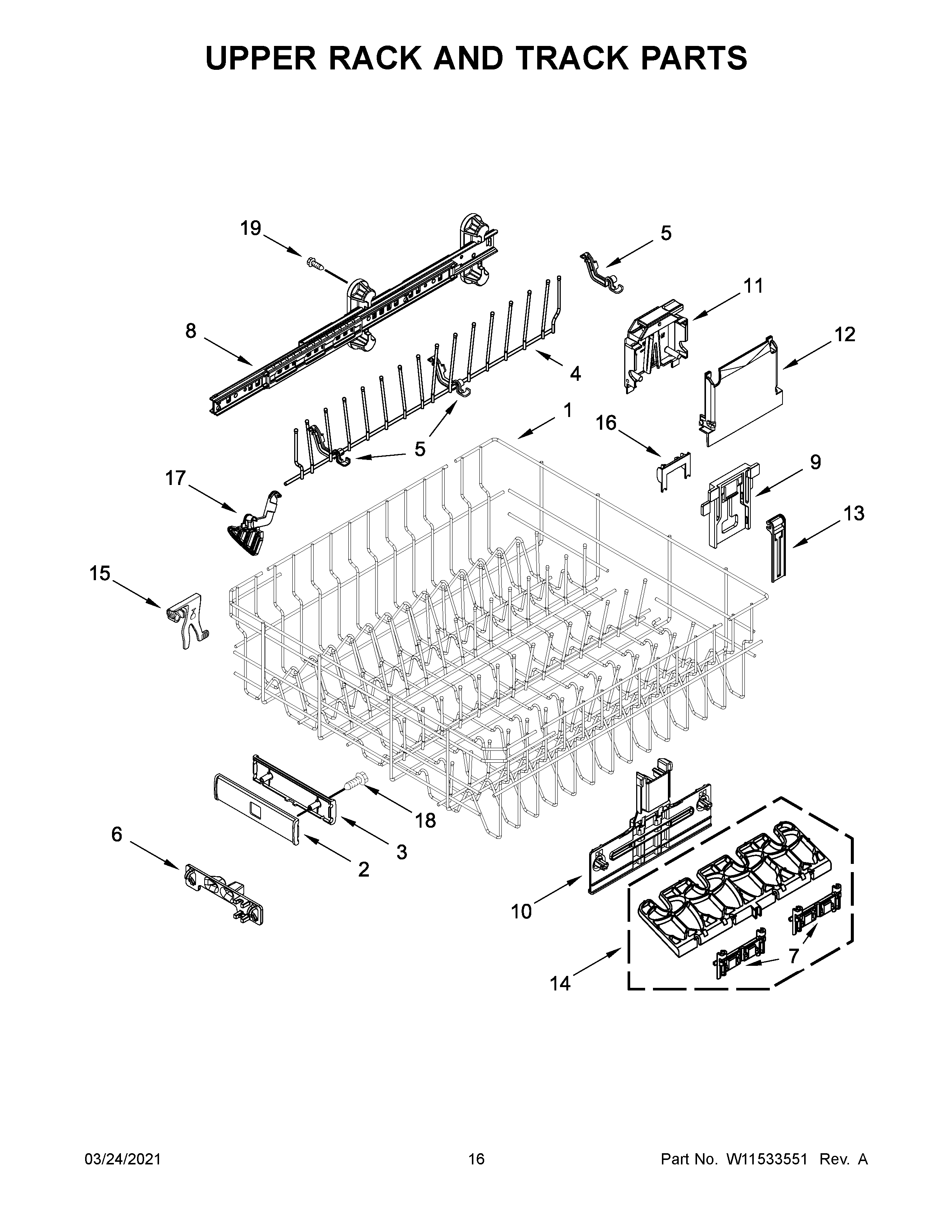

66514815N613 09 – UPPER RACK AND TRACK PARTS

66514815N613 09 – UPPER RACK AND TRACK PARTS

Written by

in

66514815N613 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W10727422 Whirlpool Dishwasher Dishrack
2W10380200 Whirlpool Dishwasher Handle
3W10810443 Whirlpool Dishwasher Handle
4W10727426 Whirlpool Dishwasher Rack Tine
5WPW10082853 Whirlpool Dishwasher Tine Pivot Clip
6WPW10077840 Whirlpool Dishwasher Positioner
7WPW10082649 Whirlpool Dishwasher Cup Shelf
8W11231659 Whirlpool Dishwasher Track
8AW11231657 Whirlpool Dishwasher Track
9WPW10195840 Whirlpool Dishwasher Adjuster Arm Positioner Clip
10WPW10546503 Whirlpool Dishwasher Upper Rack Adjuster
11WPW10588164 Whirlpool Left Hand Housing Rack Adjuster
11AWPW10588165 Whirlpool Adjuster Housing
12COVER
13WPW10195839 Whirlpool Dishwasher Rack Adjuster
14WPW10082848 Whirlpool Clip
15WPW10158385 Whirlpool Dishwasher Cup Holder
16WPW10250160 Whirlpool Clip
17W10919676 Whirlpool Dishwasher Dispenser Guard Clip
18WP9741232 Whirlpool Dishwasher Screw
19WPW10309090 Whirlpool Dishwasher Screw
