665AH-CVW 03 – DOOR/DRAWER – Aparts

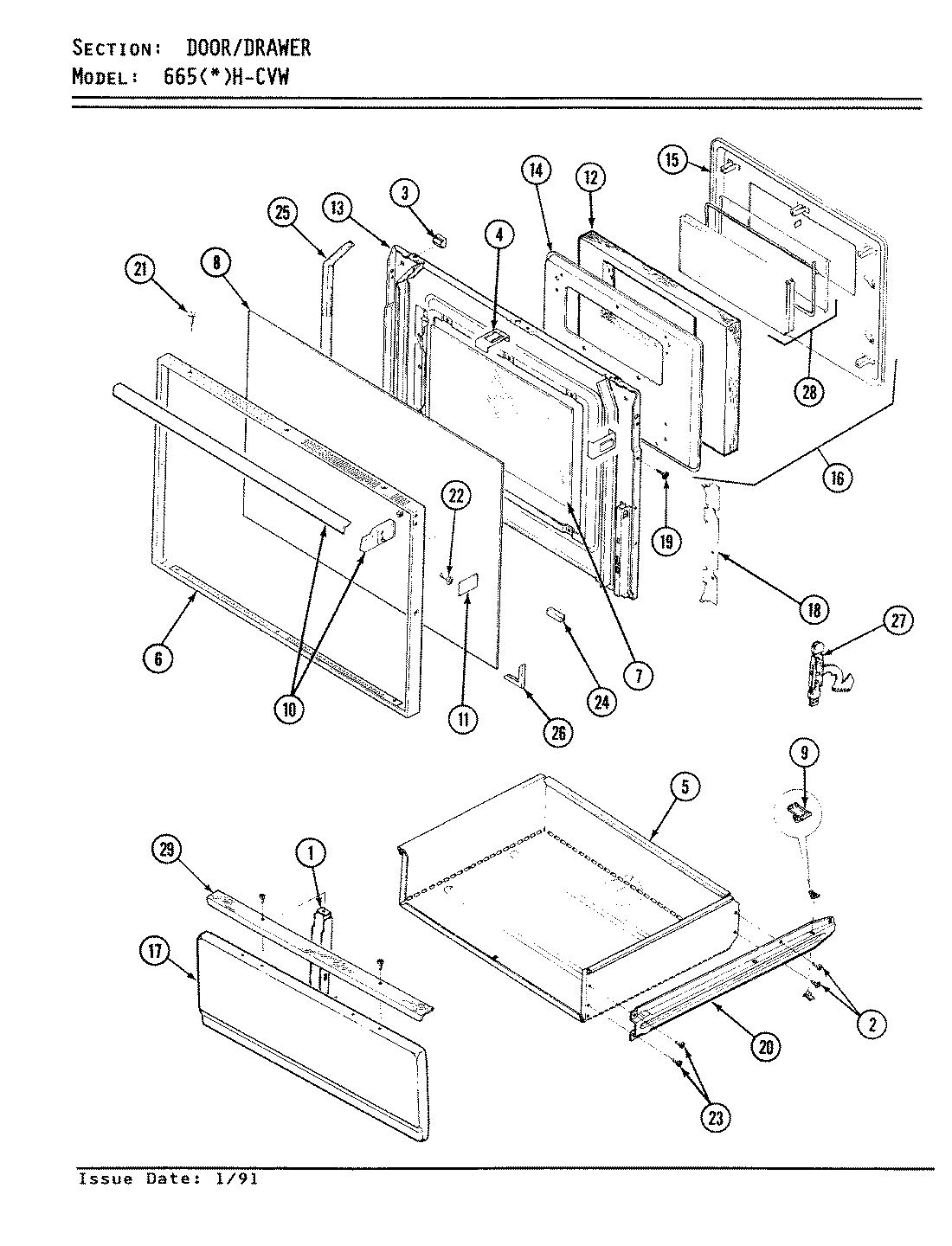

665AH-CVW 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 3802F044-51
1	SCREW
2	MAY 7101P272-60
3	MAY 8003P009-60
4	CLIP, DOOR
5	MAY 3405F008-80
6	MAY 7706P243-60
7	MAY 7902P097-60
8	MAY 7902P276-60
9	MAY 8016P009-60
9	MAY 8016P004-60
10	MAY 7701P047-60
11	MAY 7728P068-60
12	MAY 4804F006-60
13	MAY 2402W173-15
13	WP7103P114-60 Whirlpool Snap Nut
13	MAY 8114P274-60
13	MAY 2402W173-19
14	MAY 2410F016-51
15	MAY 2410W041-19
15	MAY 2410W041-15
16	MAY 2410A041-15
16	MAY 2410A041-19
17	MAY 2416F006-74
18	MAY 3804F051-80
19	MAY 7107P015-60
20	MAY 3406F026-80
21	WP7101P126-60 Whirlpool Screw
22	MAY 7101P123-60
23	MAY 7101P061-60
24	MAY 7208P011-60
25	MAY 7208P002-60
26	MAY 8010P045-60
27	MAY 3420A033-34
28	MAY 5700A091-60
28	MAY 7201P018-60
28	MAY 3804F022-45
28	MAY 7902S303-60
29	MAY 2411F001-74
30	MAY 3801F031-51
