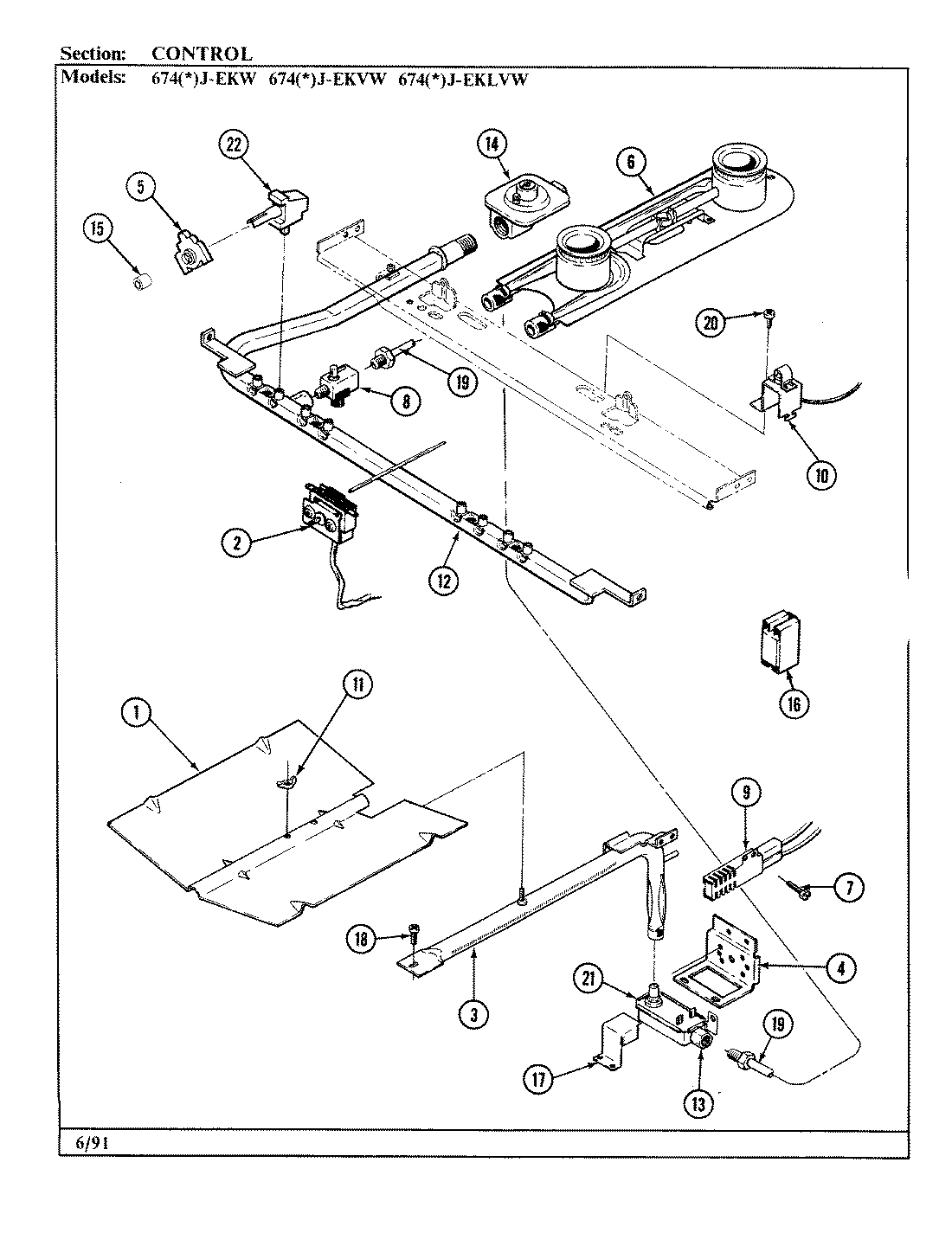

| 1 | MAY 4002F124-45 |
| 1 | MAY 4005F304-51 |
| 2 | MAY 3601W124-23 |
| 3 | MAY 4011F161-80 |
| 4 | MAY 2205F012-23K |
| 5 | MAY 7408P002-60 |
| 5 | MAY 4005F088-80 |
| 6 | MAY 2201F034-23 |
| 7 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 8 | MAY 7212P001-60 |
| 9 | MAY 4001F016-23 |
| 10 | MAY 7407P026-60 |
| 11 | MAY 4009F045-45 |
| 12 | MAY 3401F004-23 |
| 13 | MAY 7801P030-60 |
| 14 | MAY 3807F205-45 |
| 15 | MAY 7101P061-60 |
| 15 | MAY 3404A014-51 |
| 15 | MAY 3404A013-51 |
| 15 | WP4159193 Whirlpool Screw |
| 16 | MAY 3801F022-45 |
| 17 | WP7112P004-60 Whirlpool Thermal Clip |
| 18 | MAY 3413F002-23 |
| 19 | BUSHING, SNAP |
| 19 | MAY 7401P012-60 |
| 19 | MAY 7402P014-60 |
| 20 | MAY 8112P053-60 |
