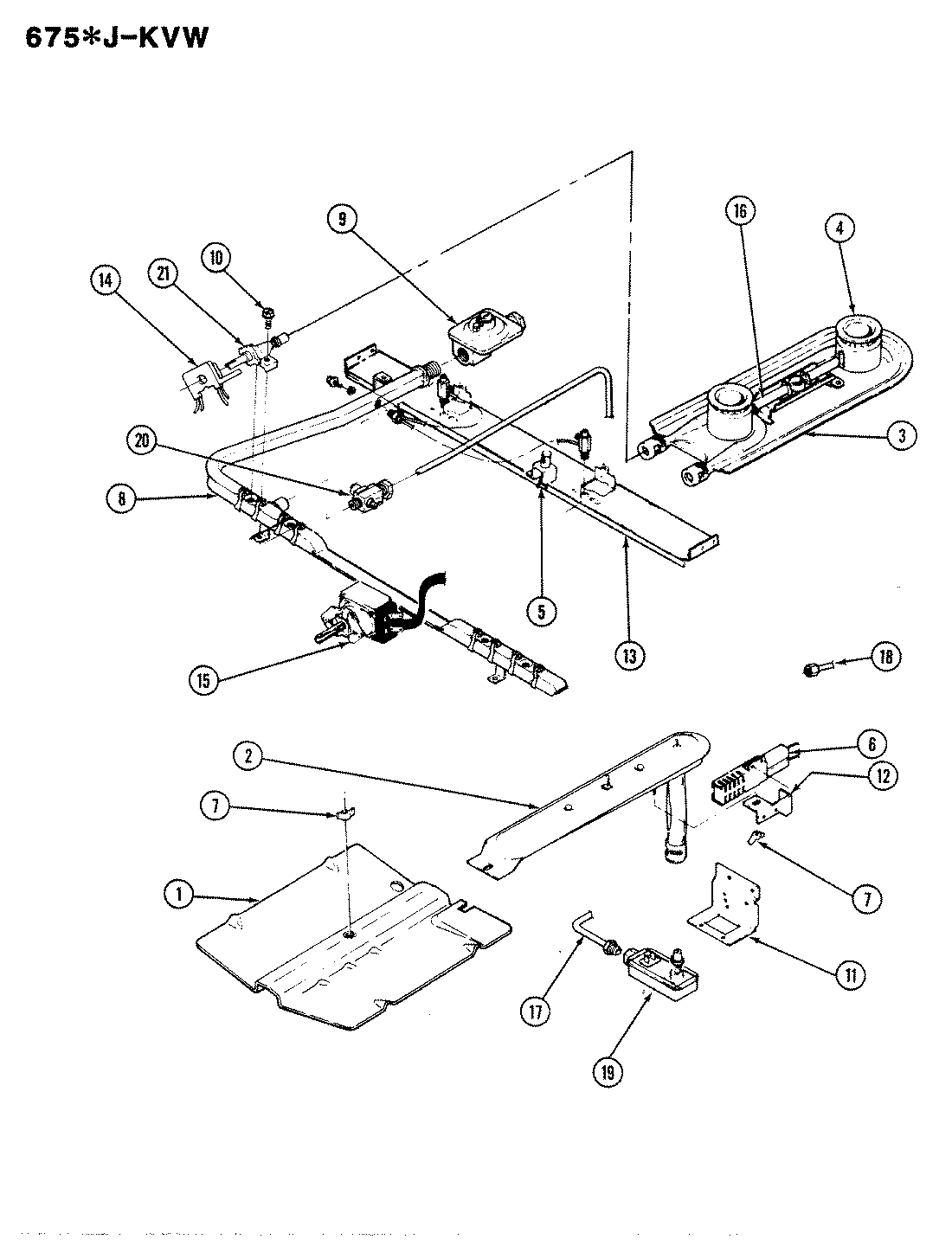

675WJ-KVW 03 – CONTROL SYSTEM

Products

Position	Product
1	MAY 3601F099-45
2	MAY 7505P101-60
3	MAY 3412A004-23
4	MAY 7504P001-60
4	MAY 4005F304-51
4	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
5	MAY 7432P015-60
5	MAY 7432P008-60
6	MAY 7431P006-60
6	MAY 7432P052-60
6	MAY 7733P038-60
6	MAY 7711P173-60
6	MAY 7711P185-60
6	WP7731P018-60 Whirlpool Knob
6	MAY 7432P062-60
7	NUT, WING
8	MAY 7513P043-60
8	MAY 3830F006-45
9	MAY 7510P002-60
10	MAY 7101P043-60
11	MAY 3807F120-34
12	MAY 3801F007-45
13	MAY 3807F221-80
14	MAY 7403P041-60
15	MAY 7515P008-60
16	MAY 7506P006-60
17	3/8 X 72 TUBING
18	MAY 0931202
19	MAY 7501P017-60
20	MAY 7502P002-60
21	MAY 7502P031-60
21	MAY 7502P111-60
