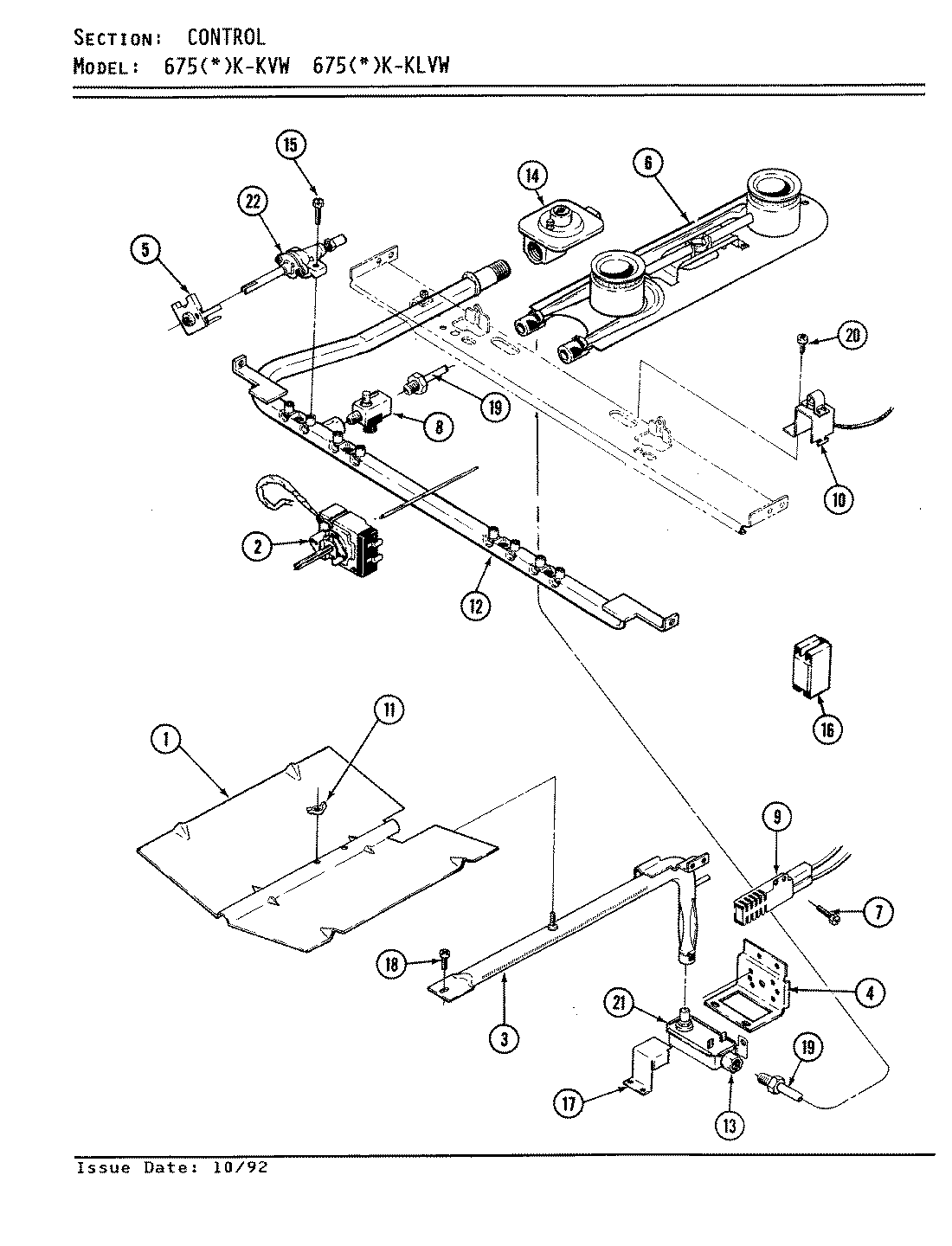

675WK-KLVW 03 – CONTROL SYSTEM

Products

Position	Product
1	MAY 3601F181-45
2	MAY 7515P008-60
2	MAY 7404P062-60
2	MAY 7404P063-60
2	MAY 3604F030-51
3	MAY 3403D027-45
3	MAY 3403A015-45
3	MAY 7505P101-60
4	MAY 3807F120-34
5	MAY 7403P285-60
5	MAY 7403P259-60
5	MAY 7403P216-60
5	WP7403P190-60 Whirlpool Switch
6	MAY 3412A004-70
6	MAY 3412A004-23
7	SCREW (10-24X5/16-NI)
8	MAY 7502P002-60
9	MAY 7401P018-60
9	MAY 7432P062-60
10	MAY 7432P015-60
10	MAY 7432P008-60
11	NUT, WING
12	MAY 7513P043-60
12	MAY 7513P101-60
13	MAY 1555251
14	MAY 7510P002-60
15	MAY 7101P296-60
15	MAY 7101P043-60
16	MAY 7431P006-60
17	MAY 4005F173-51
18	MAY 7101P061-60
19	MAY 3414F049-44
20	MAY 7118P004-60
21	MAY 7501P017-60
21	MAY 7501P108-60
22	MAY 7502P222-60
22	MAY 7214P003-60
22	MAY 7502P132-60
22	MAY 7502P109-60
