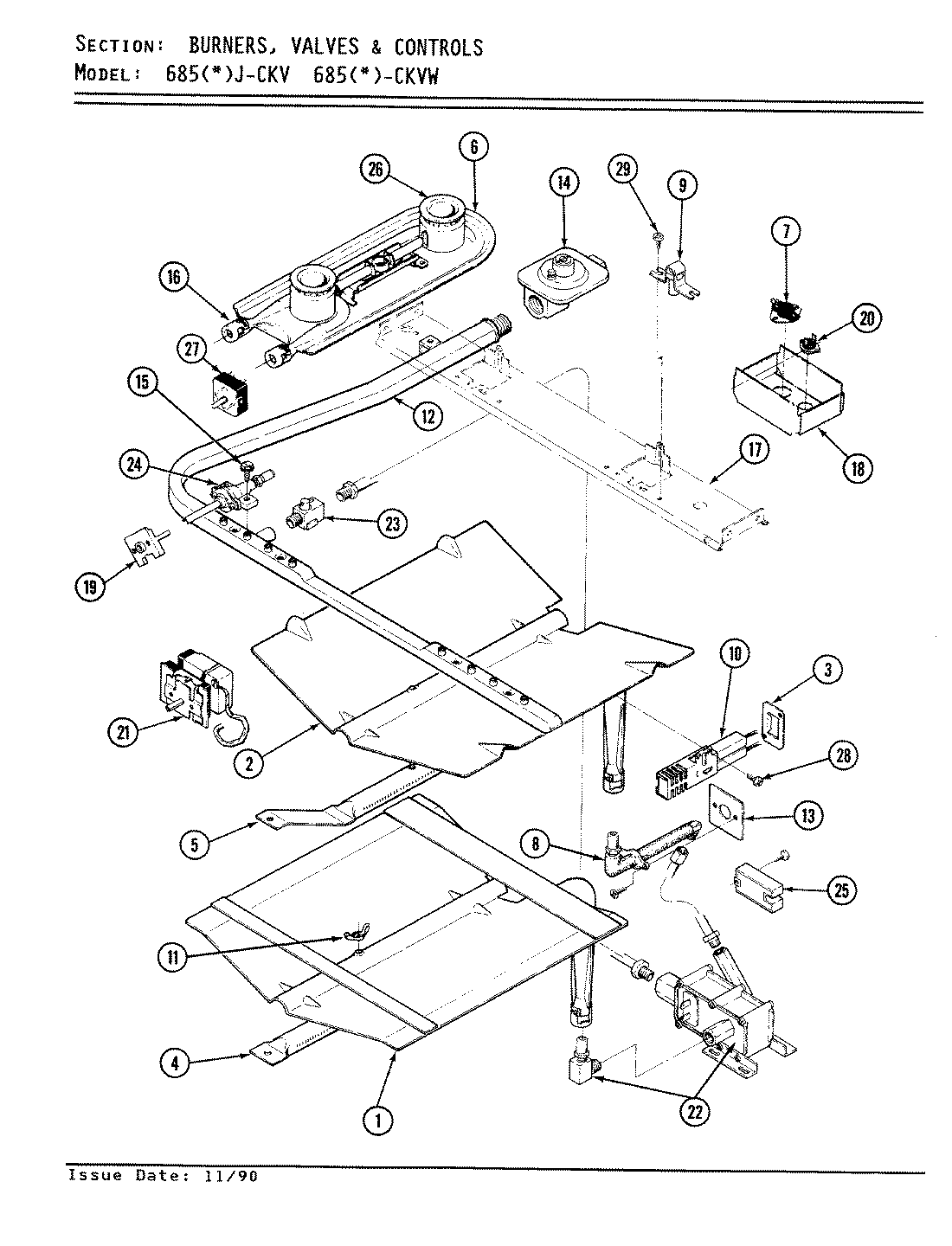

685WJ-CKV 03 – CONTROL SYSTEM
Written by
in
685WJ-CKV 03 – CONTROL SYSTEM
Products
Position
Product
1
MAY 3601W184-15
1
MAY 3601W184-19
2
MAY 3601F181-45
3
MAY 3801F179-45
3
MAY 7101P061-60
4
MAY 3403A015-45
4
MAY 3403D027-45
4
MAY 7505P101-60
5
MAY 7505P100-60
5
MAY 3403A016-45
5
MAY 3403D028-45
6
MAY 3412A004-23
6
MAY 3412A004-70
7
MAY 7403P187-60
7
MAY 7403P004-60
8
MAY 7507P028-60
9
MAY 7432P015-60
9
MAY 7432P008-60
10
MAY 7432P052-60
10
MAY 7432P067-60
11
NUT, WING
12
MAY 7513P044-60
12
MAY 7513P013-60
13
MAY 3605F019-45
14
MAY 7510P004-60
15
MAY 7101P043-60
15
MAY 7101P296-60
16
MAY 3411F004-34
17
MAY 3807F347-51
18
MAY 3807F219-51
19
WP7403P190-60 Whirlpool Switch
19
MAY 7403P216-60
19
MAY 7403P259-60
19
MAY 7403P285-60
20
MAY 7403P091-60
21
MAY 3414F048-44
21
MAY 7515P020-60
21
MAY 7404P064-60
21
MAY 3414F057-44
22
MAY 7103P121-60
22
MAY 7501P091-60
22
MAY 7501P034-60
22
MAY 7501P095-60
23
MAY 7502P002-60
24
MAY 7502P109-60
24
MAY 7502P132-60
24
MAY 7502P222-60
24
MAY 7214P003-60
25
MAY 7431P006-60
26
MAY 7504P001-60
27
MAY 7101P279-60
27
MAY 7403P092-60
28
SCREW (10-24X5/16-NI)
29
MAY 7118P004-60
←
