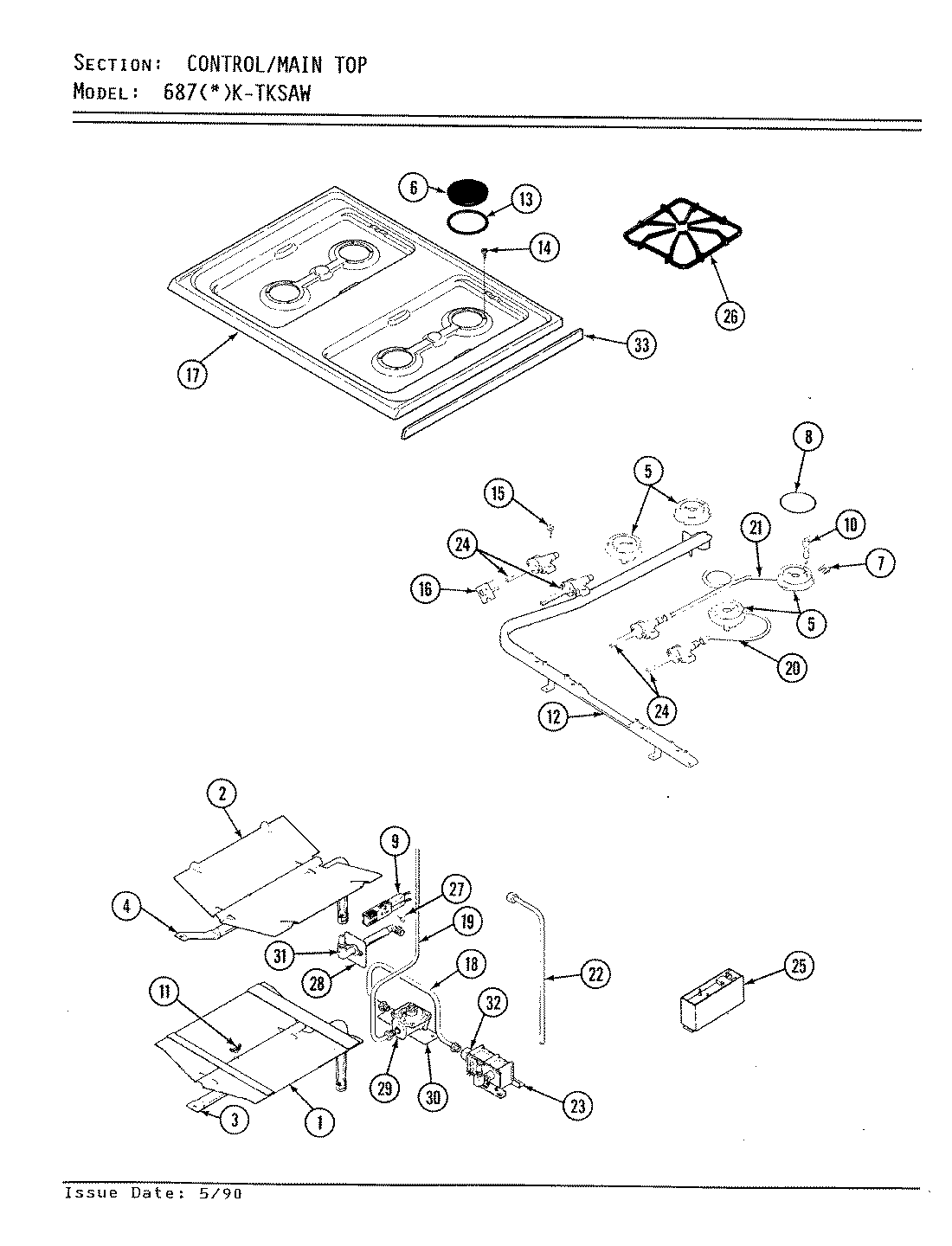

687AK-TKSAW 03 – CONTROL PANEL/TOP ASSY.
Written by
in
687AK-TKSAW 03 – CONTROL PANEL/TOP ASSY.
Products
Position
Product
1
MAY 3601W184-15
2
MAY 3601F181-45
3
MAY 7505P101-60
3
MAY 3403A015-45
3
MAY 3403D027-45
4
MAY 3403A016-45
4
MAY 3403D028-45
4
MAY 7505P100-60
5
MAY 5110A825-60
5
MAY 5110A824-60
5
MAY 5415A015-60
5
MAY 7505P187-60
5
MAY 5415A016-60
5
MAY 7505A155-60
5
MAY 5111A095-60
5
MAY 5111A096-60
6
MAY 7504P005-60
7
MAY 7112P072-60
8
MAY 7201P037-60
9
MAY 7432P067-60
10
MAY 7432P053-60
11
NUT, WING
12
MAY 7513P093-60
12
MAY 7513P104-60
13
MAY 2014F001-60
13
MAY 2014F001-00
14
MAY 7101P256-60
15
MAY 7101P043-60
15
MAY 7101P296-60
16
MAY 7403P216-60
16
WP7403P190-60 Whirlpool Switch
16
MAY 7403P258-60
17
MAY 2001F063-84
17
MAY 2001F063-86
17
MAY 2001F063-90
18
MAY 7506P075-60
19
MAY 7507P053-60
19
MAY 7506P101-60
20
MAY 7506P076-60
21
MAY 7506P077-60
22
MAY Y0936103
23
MAY 7501P034-60
23
MAY 7501P095-60
23
MAY 7501P091-60
24
MAY 7502P100-60
24
MAY 7214P003-60
24
MAY 7502P141-60
25
MAY 3801F205-45
25
MAY 7431P016-60
25
MAY 7431P017-60
26
MAY 7518P017-60
26
MAY 7518P009-60
27
SCREW (10-24X5/16-NI)
28
MAY 3605F019-45
29
MAY 7510P040-60
29
MAY 7510P028-60
30
MAY 3801F191-45
31
MAY 7507P028-60
32
MAY 1555251
33
MAY 7746P025-60
33
MAY 7746P026-60
33
MAY 7103P064-60
33
WP7101P072-60 Whirlpool Screw
←
