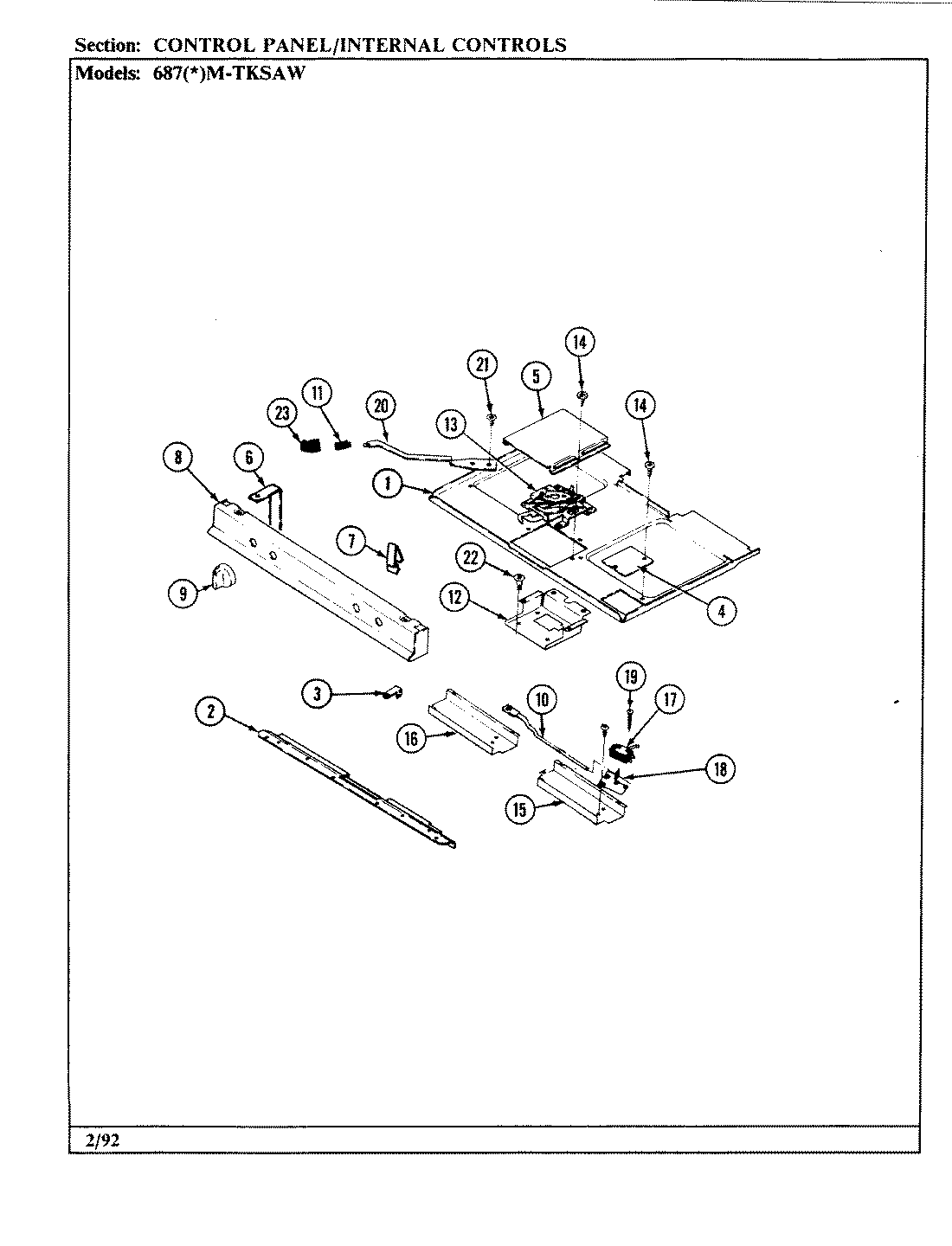

687AM-TKSAW 03 – CONTROL PANEL/INTERNAL CONTROLS
Written by
in
687AM-TKSAW 03 – CONTROL PANEL/INTERNAL CONTROLS
Products
Position
Product
1
MAY 4011F200-80
2
MAY 4012F020-80
2
WP98008545 Whirlpool Screw
3
MAY 3801F047-34
3
MAY 3801F049-34
4
MAY 4005F139-51
5
MAY 4005F137-80
6
MAY 3807F431-45
7
MAY 7112P087-60
8
MAY 7118P004-60
8
MAY 7712P146-60
8
MAY 3604F132-51
9
MAY 7733P065-60
10
MAY 7807P012-60
11
MAY 7112P003-60
12
MAY 3807F408-45
13
MAY 8002P021-60
13
MAY 3604F159-45
14
MAY 7101P061-60
15
MAY 3818F027-45
16
MAY 3818F049-45
17
MAY 7003P019-60
17
MAY 7003P039-60
17
MAY 7403P099-60
18
MAY 3807F434-45
19
MAY 7101P031-60
20
MAY 8009P019-60
21
MAY 7101P018-60
22
MAY 7116P003-60
23
MAY 7701P088-60
←
