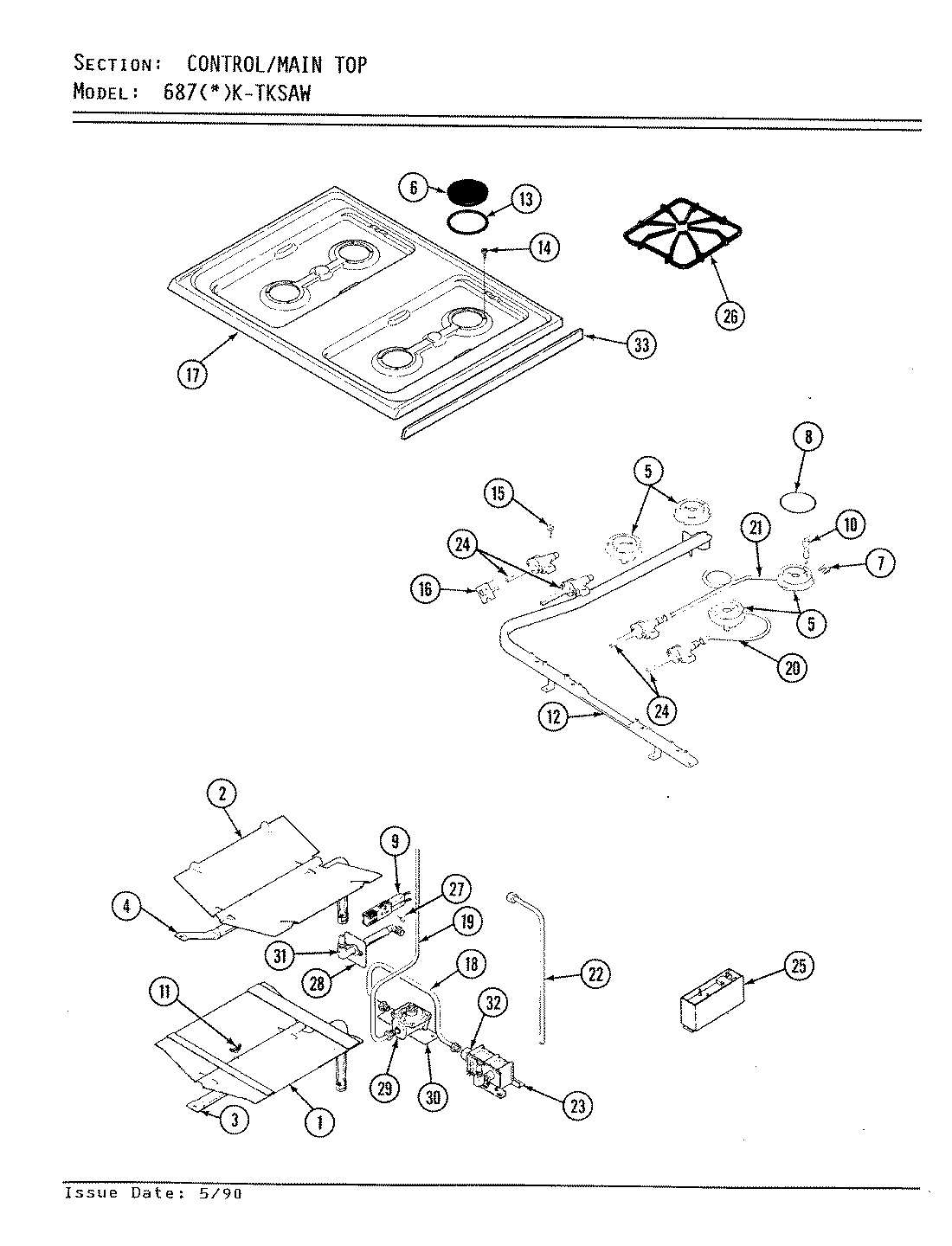

  • 687WK-TKSAW 03 – CONTROL PANEL/TOP ASSY.

687WK-TKSAW 03 – CONTROL PANEL/TOP ASSY.

687WK-TKSAW 03 – CONTROL PANEL/TOP ASSY.

Products

PositionProduct
1MAY 3601W184-15
2MAY 3601F181-45
3MAY 7505P101-60
3MAY 3403A015-45
3MAY 3403D027-45
4MAY 3403A016-45
4MAY 3403D028-45
4MAY 7505P100-60
5MAY 5110A825-60
5MAY 5110A824-60
5MAY 5415A015-60
5MAY 7505P187-60
5MAY 5415A016-60
5MAY 7505A155-60
5MAY 5111A095-60
5MAY 5111A096-60
6MAY 7504P005-60
7MAY 7112P072-60
8MAY 7201P037-60
9MAY 7432P067-60
10MAY 7432P053-60
11NUT, WING
12MAY 7513P093-60
12MAY 7513P104-60
13MAY 2014F001-60
13MAY 2014F001-00
14MAY 7101P256-60
15MAY 7101P043-60
15MAY 7101P296-60
16MAY 7403P216-60
16WP7403P190-60 Whirlpool Switch
16MAY 7403P258-60
17MAY 2001F063-86
17MAY 2001F063-90
17MAY 2001F063-81
18MAY 7506P075-60
19MAY 7506P101-60
19MAY 7507P053-60
20MAY 7506P076-60
21MAY 7506P077-60
22MAY Y0936103
23MAY 7501P095-60
23MAY 7501P034-60
23MAY 7501P091-60
24MAY 7502P141-60
24MAY 7214P003-60
24MAY 7502P100-60
25MAY 7431P017-60
25MAY 3801F205-45
25MAY 7431P016-60
26MAY 7518P009-60
26MAY 7518P017-60
27SCREW (10-24X5/16-NI)
28MAY 3605F019-45
29MAY 7510P040-60
29MAY 7510P028-60
30MAY 3801F191-45
31MAY 7507P028-60
32MAY 1555251
33MAY 7746P025-60
33MAY 7746P026-60
33WP7101P072-60 Whirlpool Screw
33MAY 7103P064-60
