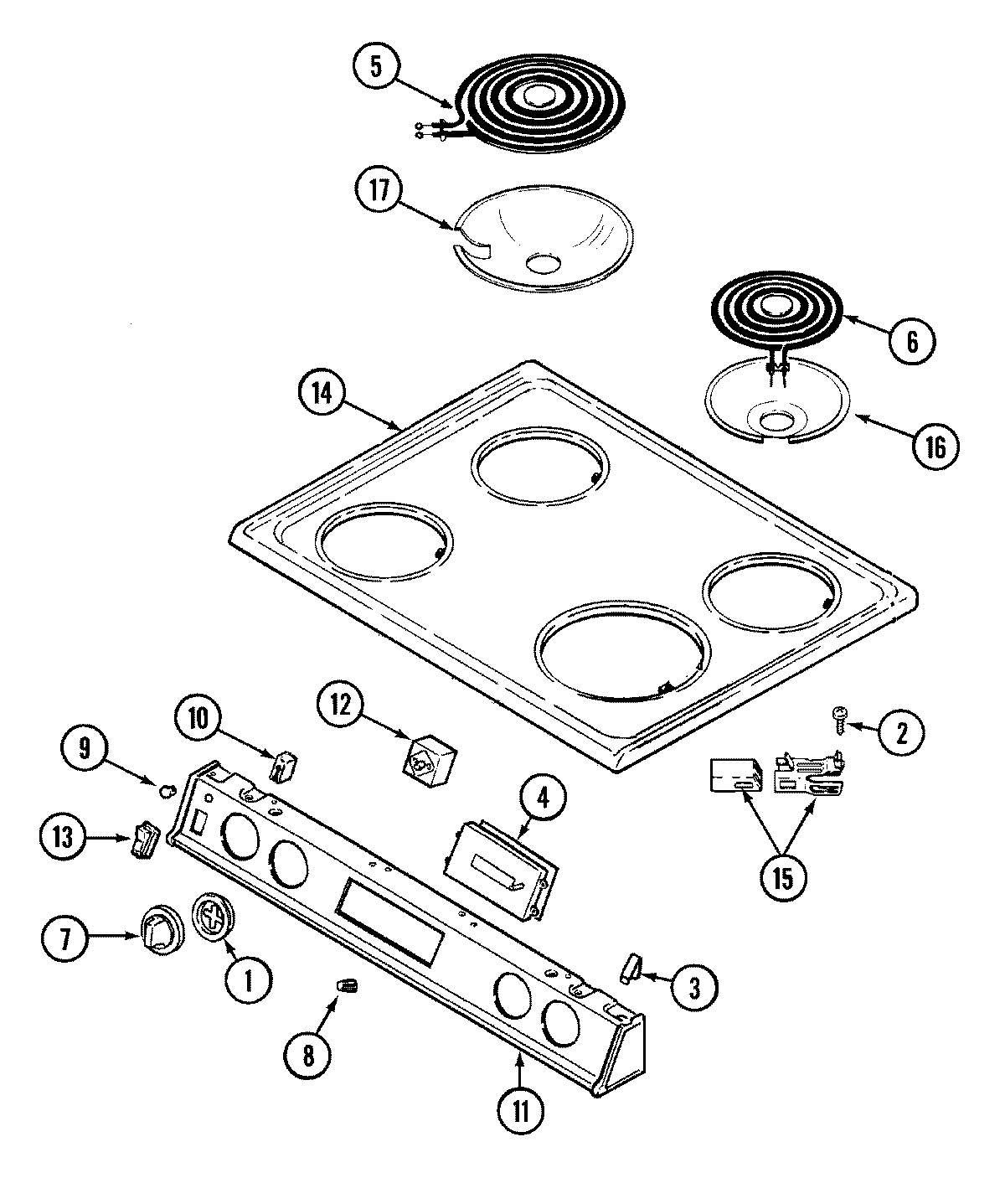

6892XVS 06 – TOP ASSEMBLY

Products

Position	Product
1	MAY 7740P020-60
2	SCREW
3	MAY 7112P087-60
4	SCREW (8BX3/8-NI)
4	MAY 74002271
4	MAY 7601P278-60
4	MAY 74003191
4	MAY 7101P346-60
5	MAY 74004089
5	MAY 74001774
5	MAY 7406P037-60
6	MAY 74004090
6	MAY 7406P039-60
6	MAY 74001776
7	MAY 7731P082-60
8	WP7711P492-60 Whirlpool Clock Knob
8	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
9	W11690131 Whirlpool Light Lens
10	W10852510 Whirlpool Indicator Light
11	MAY 74003008
11	MAY 7722P134-60
12	SCREW
12	WP7403P239-60 Whirlpool Oven Switch
12	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
13	7403P067-60 Whirlpool Light Switch
14	MAY 2002W106-30
15	MAY 1430306K
16	WPW10196406 Whirlpool 6" Chrome Drip Bowl
16	MAY 7725P048-60
17	MAY 7725P047-60
17	DRIP BOWL 8" W/HOLE CHROME
19	MAY 5195D103-60
19	MAY 5170P228-60
19	MAY 74001583
20	MAY 8113P068-60
20	MAY 8113P026-60
21	MAY 16000329
