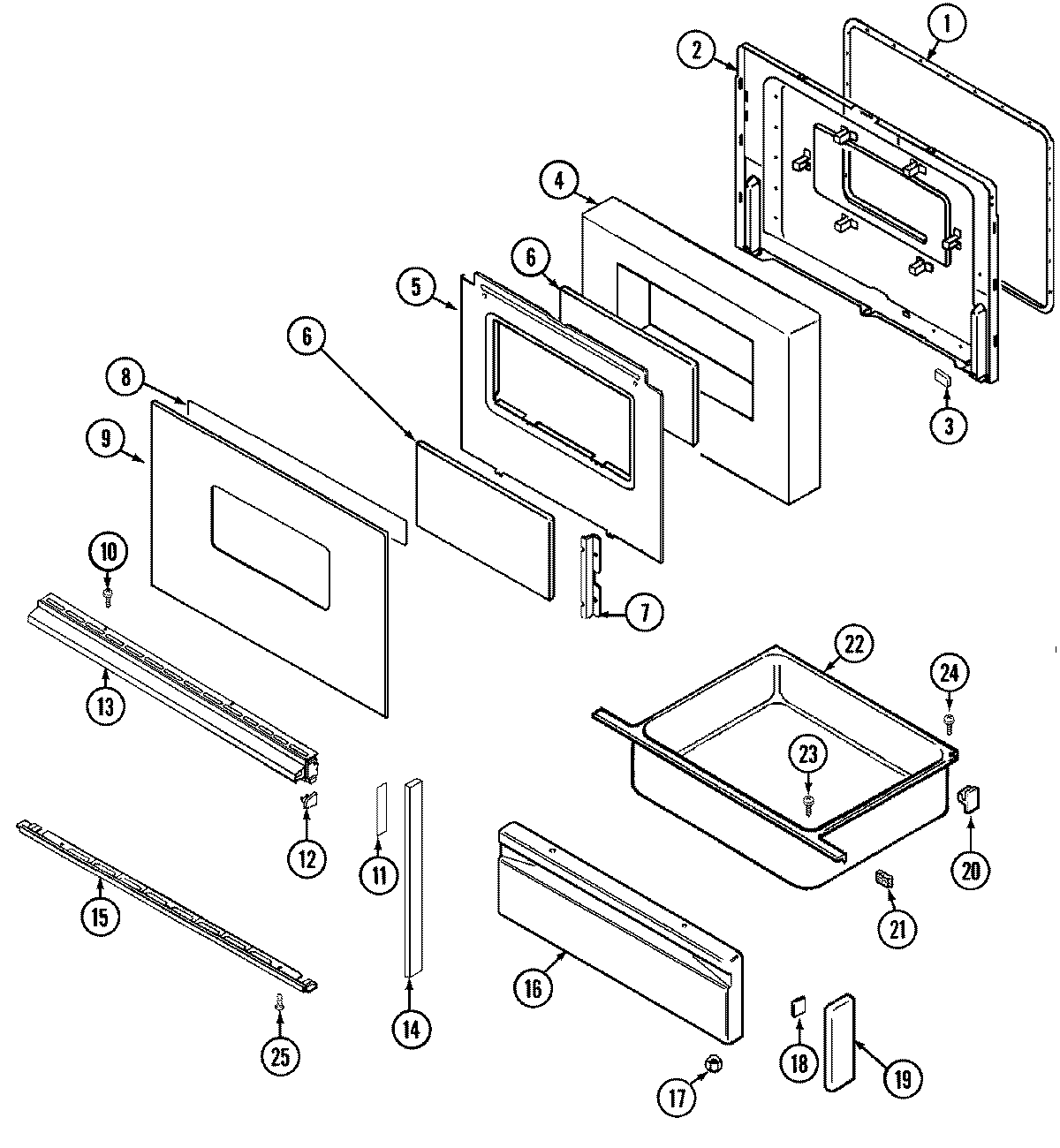

| 1 | GASKT-DOOR OVEN |
| 2 | MAY 2402W209-19 |
| 3 | MAY 8010P085-60 |
| 4 | MAY 74001842 |
| 5 | MAY 7101P290-60 |
| 5 | MAY 74001843 |
| 6 | MAY 74001841 |
| 7 | MAY 74001844 |
| 8 | MAY 8270P078-60 |
| 9 | MAY 7902P358-60 |
| 10 | WP74009541 Whirlpool Screw Assembly |
| 11 | MAY 8270P048-60 |
| 12 | MAY 74002539 |
| 12 | MAY 7744P075-60 |
| 12 | MAY 74002540 |
| 12 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 12 | MAY 7744P076-60 |
| 13 | MAY 7701P115-60 |
| 13 | MAY 74001172 |
| 14 | MAY 74002343 |
| 14 | MAY 7744P085-60 |
| 15 | MAY 7744P104-60 |
| 16 | MAY 2416F038-64 |
| 17 | WPW10131078 Whirlpool Nut Assembly |
| 18 | TAPE |
| 19 | MAY 74002806 |
| 19 | MAY 7744P112-60 |
| 20 | WP8004P026-60 Whirlpool Support |
| 21 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 22 | MAY 3405F018-80 |
| 23 | WP7101P072-60 Whirlpool Screw |
| 24 | SCREW |
