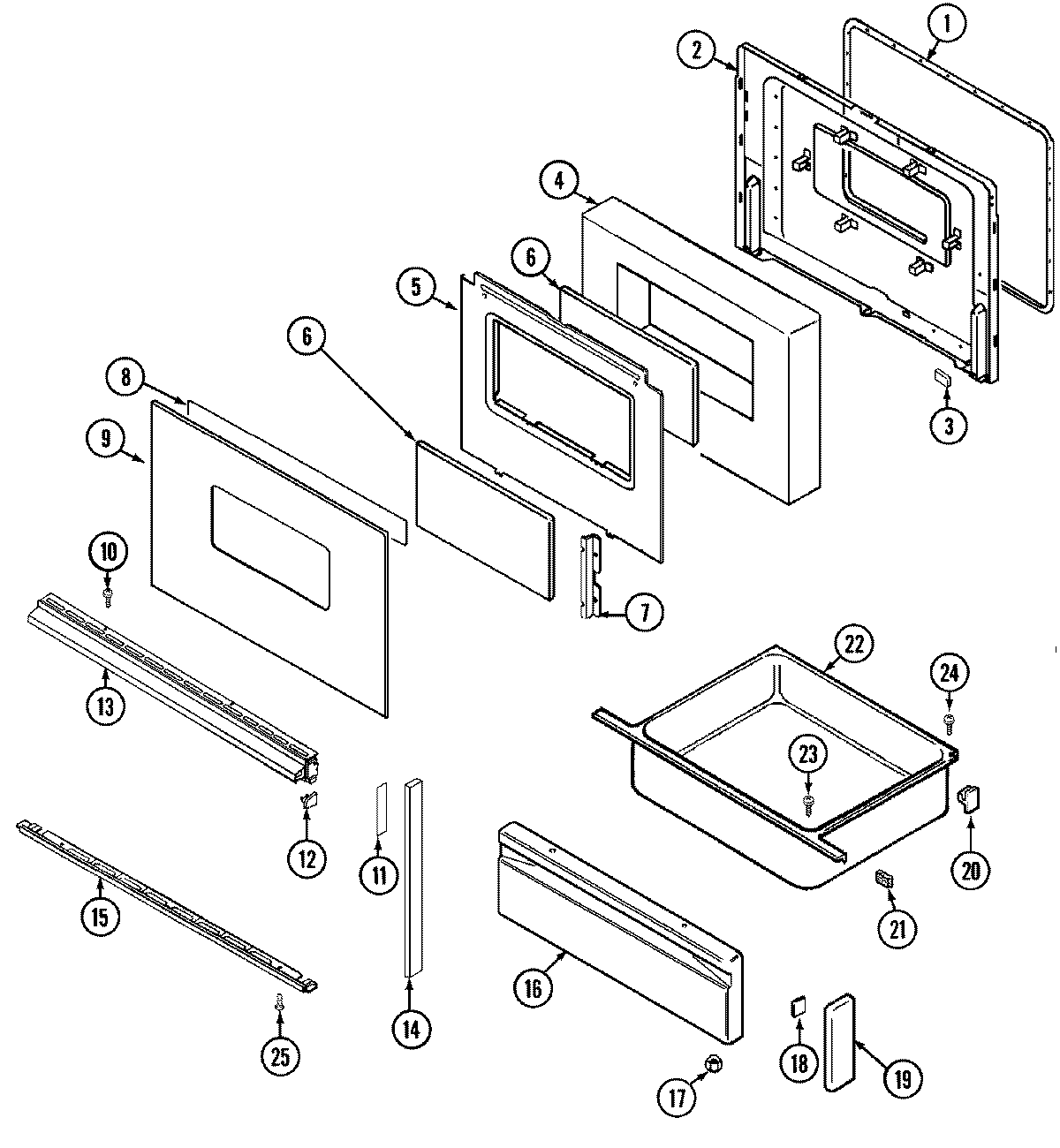

6896VVV 02 – DOOR/DRAWER

Products

Position	Product
1	GASKT-DOOR OVEN
2	MAY 2402W209-19
3	MAY 8010P085-60
4	MAY 74001842
5	MAY 7101P290-60
5	MAY 74001843
6	MAY 74001841
7	MAY 74001844
8	MAY 8270P078-60
9	MAY 7902P328-60
10	WP98008544 Whirlpool Screw Assembly
11	MAY 8270P048-60
12	MAY 74002738
12	MAY 7744P076-60
12	MAY 7744P075-60
12	MAY 74002739
12	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
13	MAY 74001171
13	MAY 7701P105-60
14	MAY 7744P065-60
14	MAY 74002342
15	MAY 7744P103-60
16	MAY 2416F038-62
17	WPW10131078 Whirlpool Nut Assembly
18	TAPE
19	MAY 7744P067-60
19	MAY 74002804
20	WP8004P026-60 Whirlpool Support
21	WP854334 Whirlpool Air Conditioner Sealing Strip
22	MAY 3405F018-80
23	WP7101P072-60 Whirlpool Screw
24	SCREW
