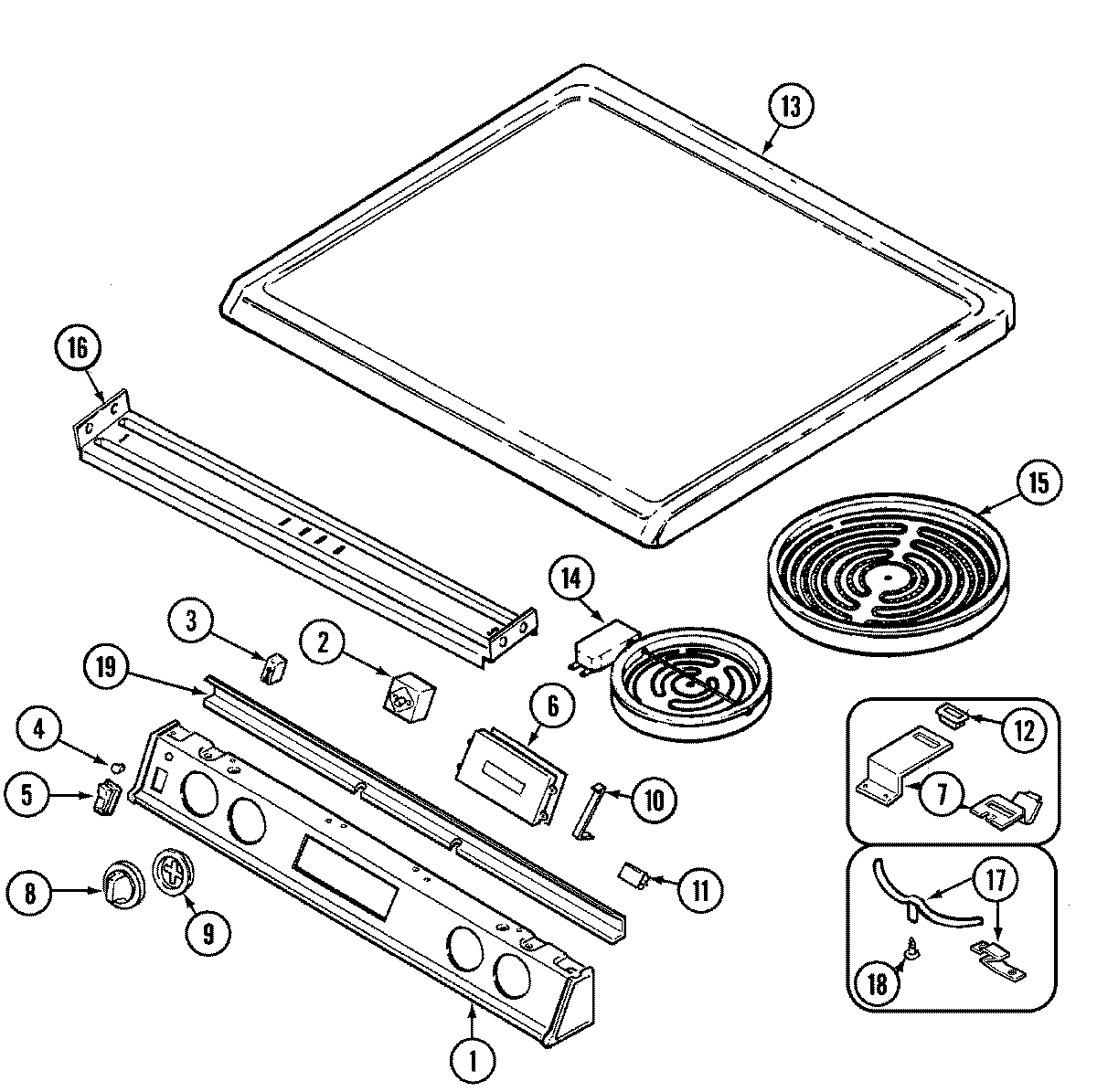

6896VVV 05 – TOP ASSEMBLY

Products

Position	Product
1	MAY 74003009
1	MAY 7722P135-60
2	WP7403P239-60 Whirlpool Oven Switch
2	SCREW
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3	W10852510 Whirlpool Indicator Light
4	W11690131 Whirlpool Light Lens
5	MAY 7403P200-60
6	MAY 7101P346-60
6	MAY 74002001
7	MAY 74002978
7	MAY 3801F312-45
8	MAY 7731P081-60
9	MAY 7740P023-60
10	MAY 3801F349-51
10	SCREW (8BX3/8-NI)
11	MAY 7112P087-60
12	MAY 74003043
12	MAY 7407P098-60
13	MAY 74003022
13	WP74003976 Whirlpool Screw
13	MAY 5706S056-81
14	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
14	MAY Y04000064
15	W10823707 Whirlpool Range Radiant Surface Element 8"
15	MAY 74002652
15	MAY Y04000063
16	SCREW
16	MAY 3807F390-45
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
17	MAY 8004P015-60
17	MAY 74002976
18	SCREW, 8 X 1/2
18	WP59002061 Whirlpool Microwave Screw
19	MAY 74002647
20	MAY 5170P228-60
20	MAY 5175D075-60
20	MAY 74002197
20	MAY 74002330
20	MAY 74002196
20	MAY 5175D076-60
20	MAY 74001583
21	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
21	WA906B Whirlpool Cooktop Glass Scraper
22	MAY 74001994
23	MAY 16000327
