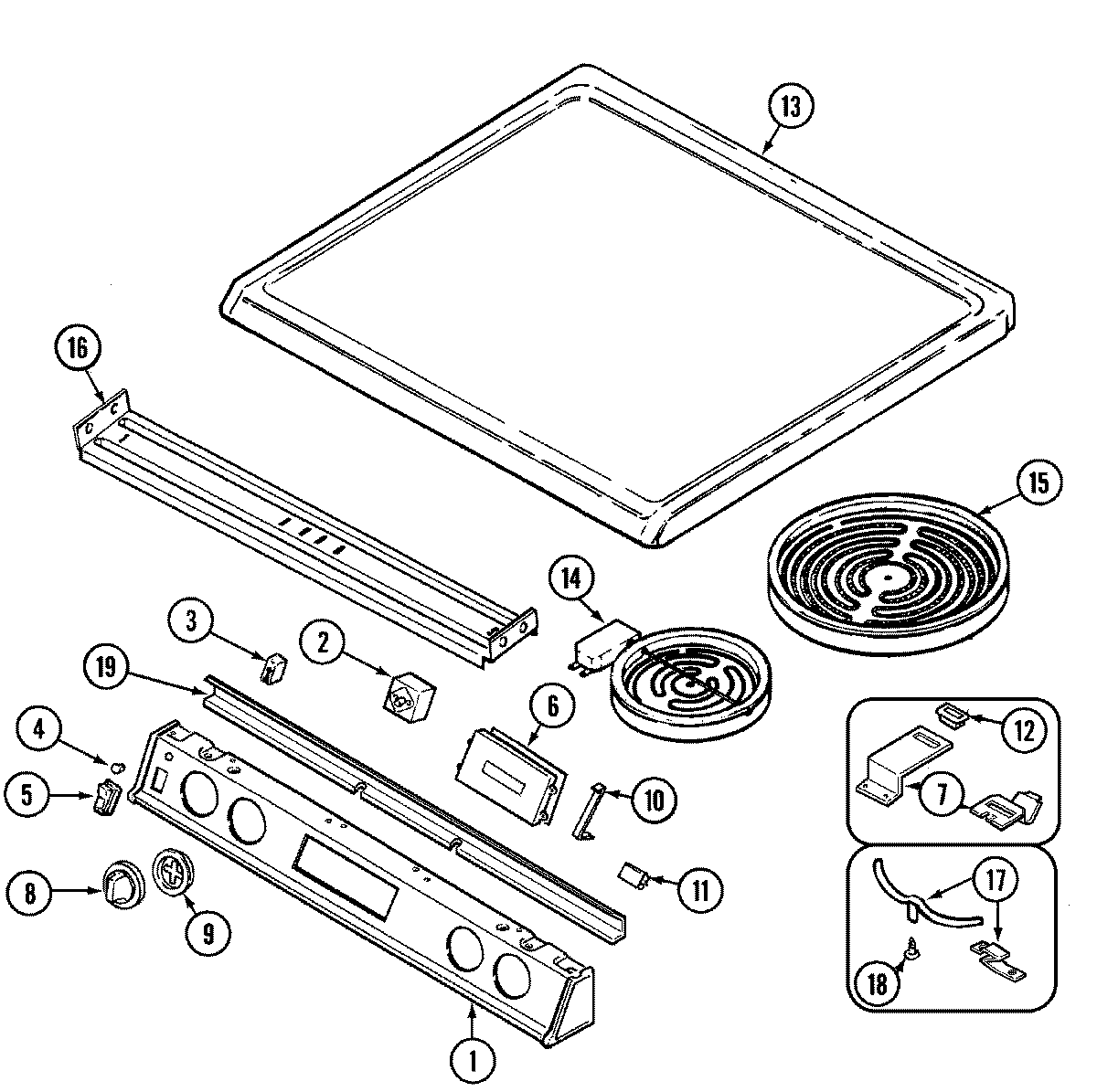

6896XVB 05 – TOP ASSEMBLY

Products

Position	Product
1	MAY 7722P134-60
1	MAY 74003008
2	SCREW
2	WP7403P239-60 Whirlpool Oven Switch
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3	W10852510 Whirlpool Indicator Light
4	W11690131 Whirlpool Light Lens
5	7403P067-60 Whirlpool Light Switch
6	MAY 74001992
6	MAY 7101P346-60
7	MAY 3801F312-45
7	MAY 74002978
8	MAY 7731P082-60
9	MAY 7740P020-60
10	MAY 3801F349-51
10	SCREW (8BX3/8-NI)
11	MAY 7112P087-60
12	MAY 74003043
12	MAY 7407P098-60
13	WP74003976 Whirlpool Screw
13	MAY 74003027
13	MAY 74001771
14	MAY Y04000064
14	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
15	W10823707 Whirlpool Range Radiant Surface Element 8"
15	MAY Y04000063
15	MAY 74002652
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
16	SCREW
16	MAY 3807F390-45
17	MAY 74002976
17	MAY 8004P015-60
18	WP59002061 Whirlpool Microwave Screw
18	SCREW, 8 X 1/2
19	MAY 74002647
20	MAY 5175D075-60
20	MAY 74002197
20	MAY 74002330
20	MAY 5175D076-60
20	MAY 5170P228-60
20	MAY 74001583
20	MAY 74002196
21	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
21	WA906B Whirlpool Cooktop Glass Scraper
22	MAY 74001994
23	MAY 16000327
