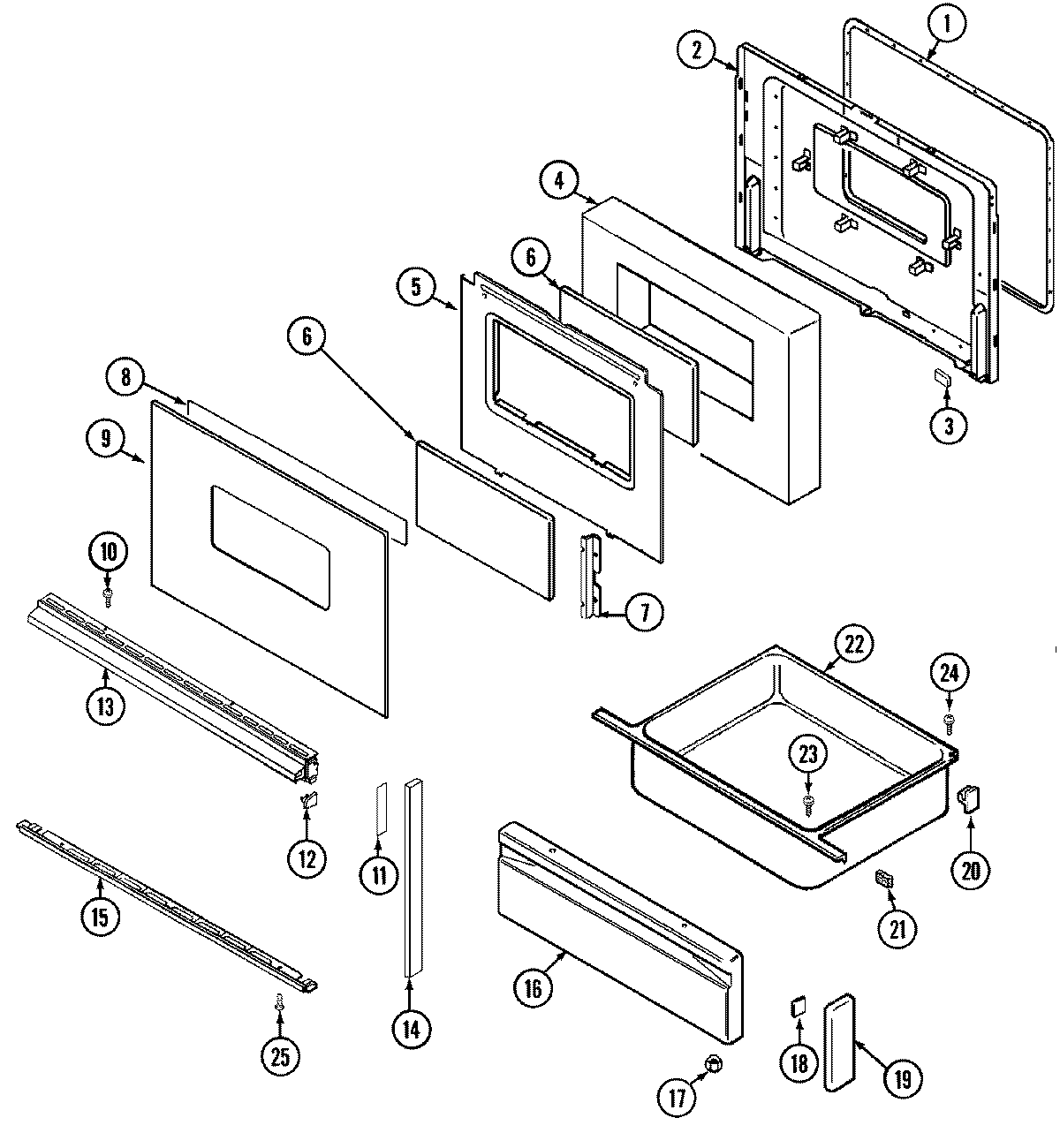

6898VVA 03 – DOOR/DRAWER (SER. PRE. 12)

Products

Position	Product
1	GASKT-DOOR OVEN
2	MAY 2402W209-19
2	MAY 74003244
3	MAY 8010P085-60
4	MAY 74001842
5	MAY 74001843
5	MAY 7101P290-60
6	MAY 74001841
7	MAY 74001844
8	MAY 8270P078-60
9	MAY 7902P358-60
10	WP74009541 Whirlpool Screw Assembly
11	MAY 8270P093-60
12	MAY 7744P075-60
12	MAY 7744P076-60
12	MAY 74002713
12	MAY 74002714
13	MAY 74001172
13	MAY 7701P115-60
14	MAY 74002343
14	MAY 7744P085-60
15	MAY 7744P104-60
16	MAY 74004034
16	MAY 2416F038-64
16	MAY 74003522
16	LINING, DRAWER PANEL
17	WPW10131078 Whirlpool Nut Assembly
18	TAPE
19	MAY 7744P112-60
19	MAY 74002806
20	WP488130 Whirlpool Air Conditioner Nut
20	WP8004P026-60 Whirlpool Support
20	MAY 74003566
21	WP854334 Whirlpool Air Conditioner Sealing Strip
22	MAY 71003042
22	MAY 3405F018-80
23	WP7101P072-60 Whirlpool Screw
25	SCREW
