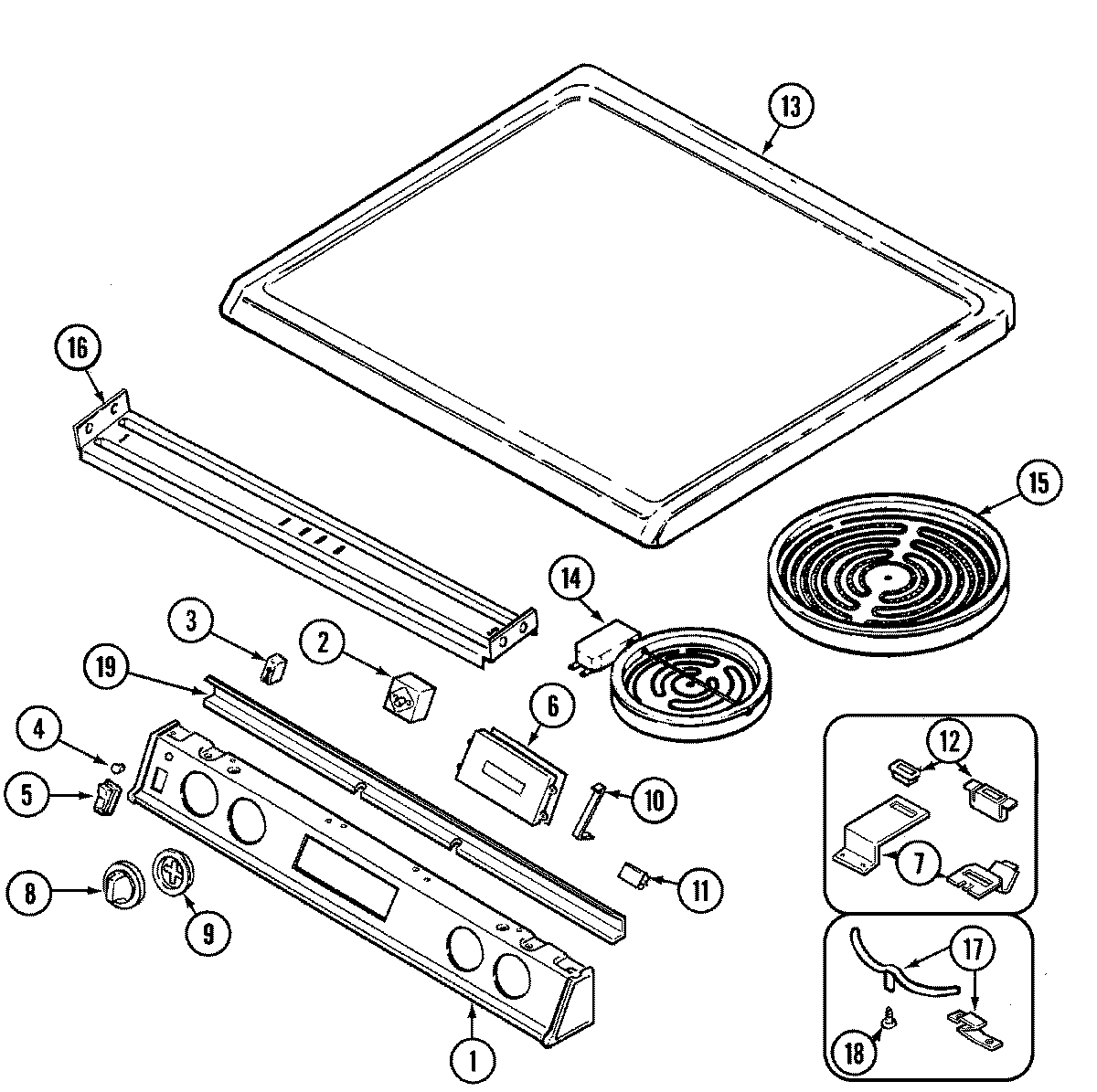

6898VVD 06 – TOP ASSEMBLY

Products

Position	Product
1	MAY 7722P141-60
1	MAY 74003010
2	WP7403P239-60 Whirlpool Oven Switch
2	SCREW
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3	W10852510 Whirlpool Indicator Light
4	W11690131 Whirlpool Light Lens
5	MAY 7403P358-60
6	MAY 74002274
6	MAY 7711P494-60
6	MAY 7601P305-60
7	MAY 74002978
7	MAY 3801F312-45
8	MAY 7737P046-60
9	MAY 7740P072-60
10	MAY 74003191
11	MAY 7112P102-60
11	MAY 7112P087-60
12	MAY 74003043
12	MAY 7407P098-60
13	MAY 74003026
13	MAY 74001584
14	MAY 12500041
14	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
14	MAY 7406P074-60
15	MAY 7406P073-60
15	W10823707 Whirlpool Range Radiant Surface Element 8"
15	MAY 74002652
15	MAY 12500040
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
16	MAY 3807F390-45
17	MAY 8004P015-60
17	MAY 74002976
18	WP59002061 Whirlpool Microwave Screw
19	MAY 74002647
20	MAY 5175D076-60
20	MAY 74001583
20	MAY 5195D097-60
20	MAY 5170P228-60
21	MAY 16007454
21	MAY 8113P068-60
22	MAY 16000329
