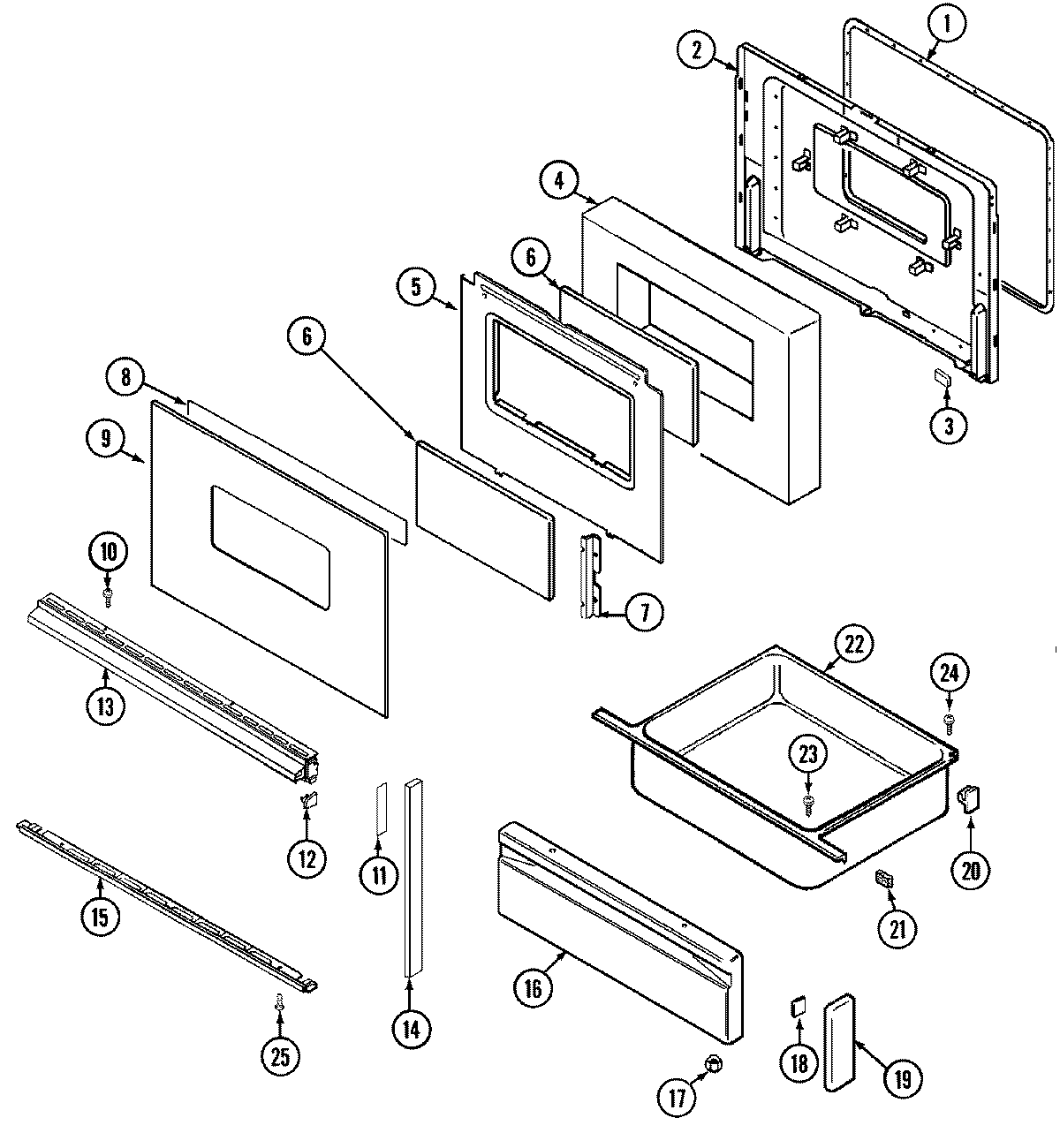

6898XVB 03 – DOOR/DRAWER (SER. PRE. 12)

Products

Position	Product
1	GASKT-DOOR OVEN
2	MAY 2402W209-19
2	MAY 74003244
3	MAY 8010P085-60
4	MAY 74001842
5	MAY 7101P290-60
5	MAY 74001843
6	MAY 74001841
7	MAY 74001844
8	MAY 8270P078-60
9	MAY 74003431
9	MAY 7902P321-60
10	WP98008545 Whirlpool Screw
11	MAY 8270P093-60
12	MAY 7744P075-60
12	MAY 74002540
12	MAY 74002539
12	MAY 7744P076-60
13	MAY 7701P103-60
13	MAY 74003429
13	MAY 7701P144-60
14	MAY 7744P055-60
14	MAY 74002084
14	MAY 74003430
15	MAY 74003432
15	MAY 7744P105-60
16	MAY 74004034
16	PANEL, DRAWER (BLK)
16	MAY 2416F038-65
16	LINING, DRAWER PANEL
17	WPW10131078 Whirlpool Nut Assembly
18	TAPE
19	MAY 74002805
19	MAY 7744P068-60
20	MAY 74003566
20	WP8004P026-60 Whirlpool Support
20	WP488130 Whirlpool Air Conditioner Nut
21	WP854334 Whirlpool Air Conditioner Sealing Strip
22	MAY 3405F018-80
22	MAY 71003042
23	WP7101P072-60 Whirlpool Screw
25	SCREW
