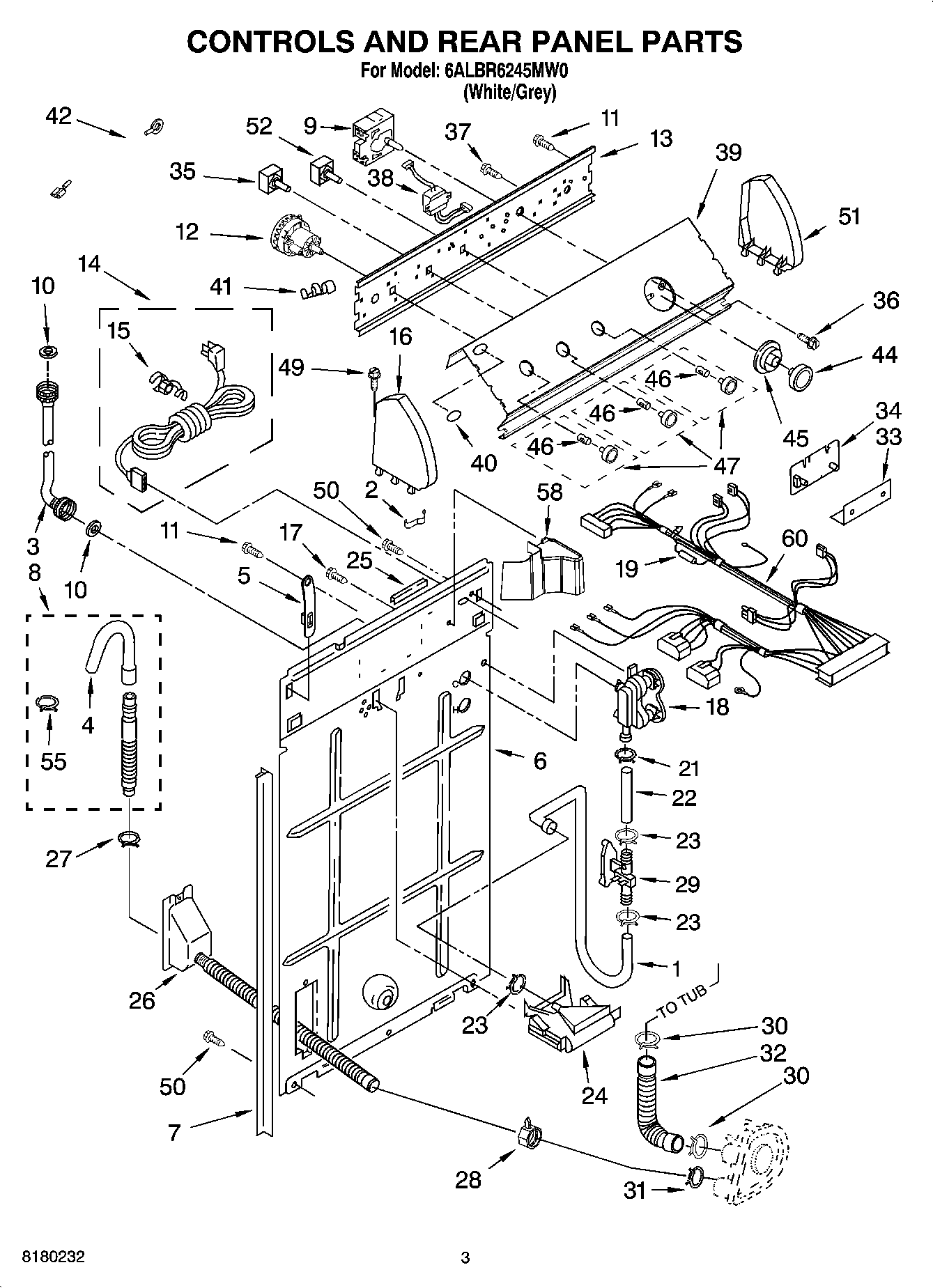

6ALBR6245MW0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	Hose, Sensor (Lower)
2	8528351 Whirlpool Clip
3	WPW10489643 Whirlpool Fill Hose
4	WP3357027 Whirlpool Nozzle Assembly
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	285702 Whirlpool Extensions
8	285666 Whirlpool Drain Hose 10'
8	285664 Whirlpool Drain Hose
9	Timer, Control (50 Hz.) (Motor Not A Service Part)
10	WP3357450 Whirlpool Washer Assembly
11	WP90767 Whirlpool Screw
12	W10335056 Whirlpool Water Level Pressure Switch
13	Bracket, Control
14	Cord, Power
15	Strain Relief, Power Cord
17	WP3351614 Whirlpool Screw
18	WP3360397 Whirlpool Valve
19	WPW10111181 Whirlpool Fuse Assembly
21	WP596669 Whirlpool Hose Clamp
22	Hose, Sensor (Upper)
24	WP3347034 Whirlpool Vacuum Break
25	Edge Protector
26	WPW10358151 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	Clamp, Hose
29	Sensor-ETC-Inline
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Shield, ATC
34	WPW10110247 Whirlpool Electronic Control Board
35	W10851055 Whirlpool Cycle Switch
36	WP3400818 Whirlpool Screw
37	Screw (6)
38	3407160 Whirlpool Transformer
39	Panel, Console (Includes Item 40)
40	Medallion
41	W10113937 Whirlpool Clamp
42	Wire, Ground
44	WP8538949 Whirlpool Knob
45	WP8538955 Whirlpool Dial
46	WP8536939 Whirlpool Spring Clip
47	KNOB
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	W10820038 Whirlpool Endcap
52	Switch, Rotary (Temperature)
55	WP3357331 Whirlpool Clamp
58	Sh
60	Harness, Wiring (For Det
