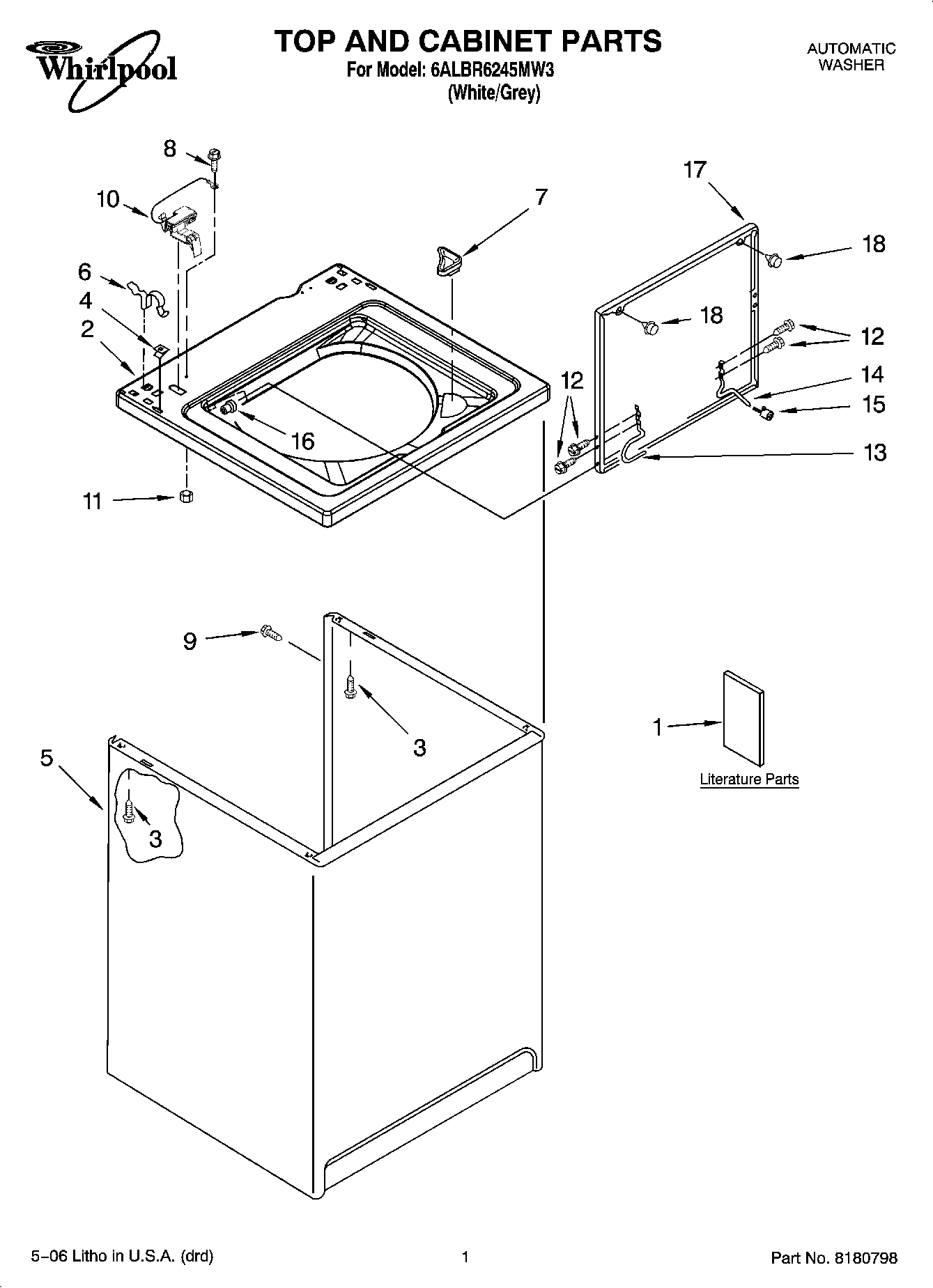

6ALBR6245MW3 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Energy Guide
1Feature Sheet
1Installation Instructions
1Use & Care Guide
1Wiring Diagram
2Top
3WP3390631 Whirlpool Screw
4WP357213 Whirlpool Hinge Stopper
5Cabinet
6WP62780 Whirlpool Cabinet Clip
7WP3362952 Whirlpool Bezel
8WP3351614 Whirlpool Screw
9WP308685 Whirlpool Microwave Screw
10WP8318084 Whirlpool Washer Lid Switch Assembly
11W10080180 Whirlpool Nut
12SCREW
138318088 Whirlpool Hinge Assembly
14WP54583 Whirlpool Hinge
15Bumper, Lid Hinge
16WP21258 Whirlpool Washer Lid Hinge Bearing
17WPW10193857 Whirlpool Lid Assembly
18WP9724509 Whirlpool Bumper
