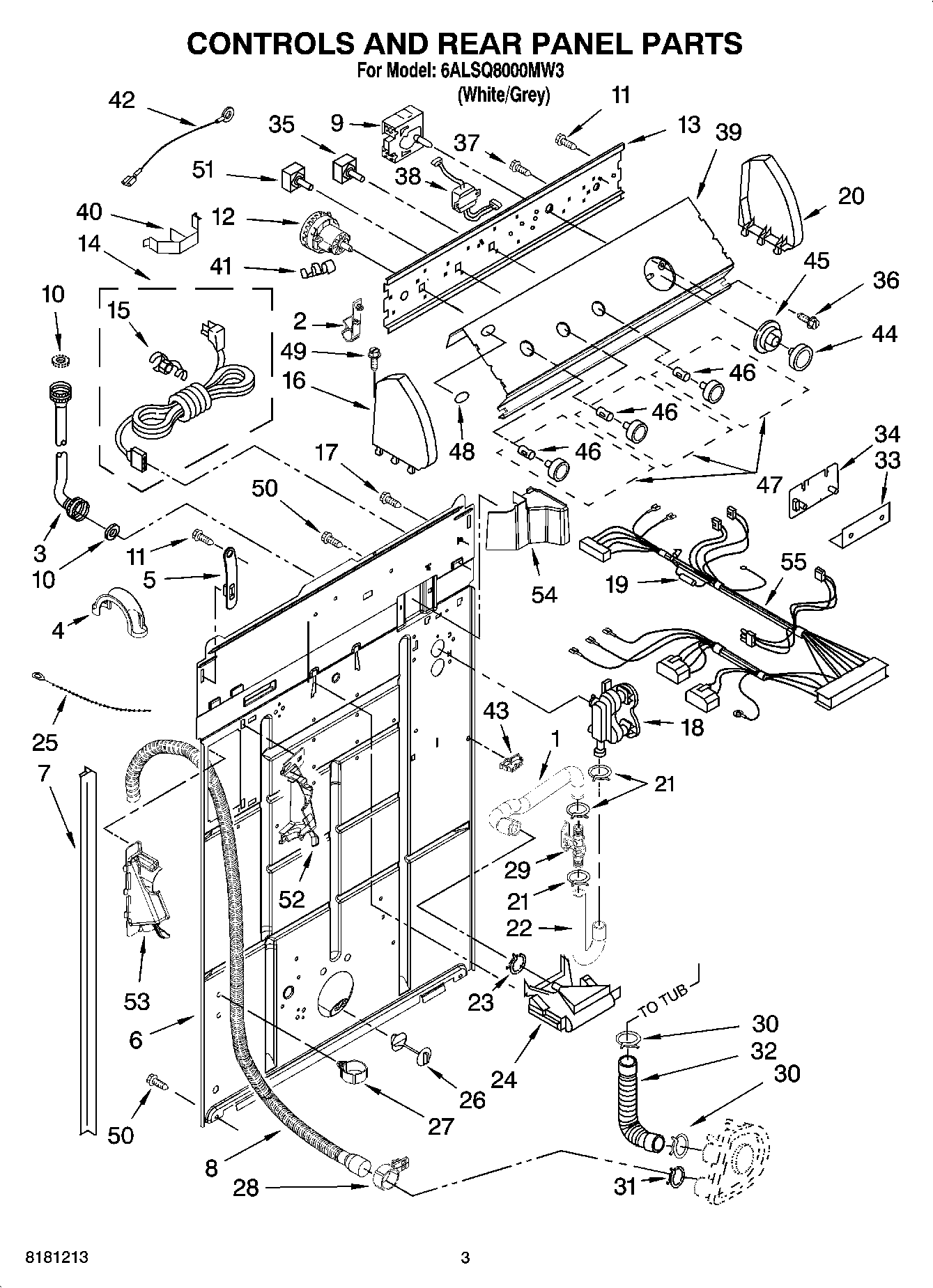

6ALSQ8000MW3 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP3349365 Whirlpool Hose
2	Retainer, Harness
3	WPW10489643 Whirlpool Fill Hose
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	Timer, Control (50 Hz.) (Motor Not A Service Part)
10	WP16123 Whirlpool Washer
11	WP90767 Whirlpool Screw
12	W10335056 Whirlpool Water Level Pressure Switch
13	WP3948608 Whirlpool Bracket
14	Cord, Power
15	Strain Relief, Power Cord
17	WP3351614 Whirlpool Screw
18	WP3360397 Whirlpool Valve
19	WPW10111181 Whirlpool Fuse Assembly
20	W10820038 Whirlpool Endcap
21	WP596669 Whirlpool Hose Clamp
22	WP3357319 Whirlpool Hose
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WPW10339879 Whirlpool Wire Tie
26	WP8519200 Whirlpool Support Assembly
27	Clamp, Hose
28	8541668 Whirlpool Washer Clamp
29	Sensor-ETC-Inline
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Shield, ATC
34	WPW10110247 Whirlpool Electronic Control Board
35	W10851055 Whirlpool Cycle Switch
36	WP3400818 Whirlpool Screw
37	3400073 Whirlpool Screw
38	3407160 Whirlpool Transformer
39	Panel, Console (Includes Item 48)
40	Clip, Harness & Pressure Hose
41	W10113937 Whirlpool Clamp
42	Wire, Ground
43	Clip, Harness
44	WP8538949 Whirlpool Knob
45	WP8538955 Whirlpool Dial
46	WP8536939 Whirlpool Spring Clip
47	KNOB
48	Medallion
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	Switch, Rotary (Temperature)
53	WPW10096921 Whirlpool Hose
54	Sh
55	WPL 3956709
