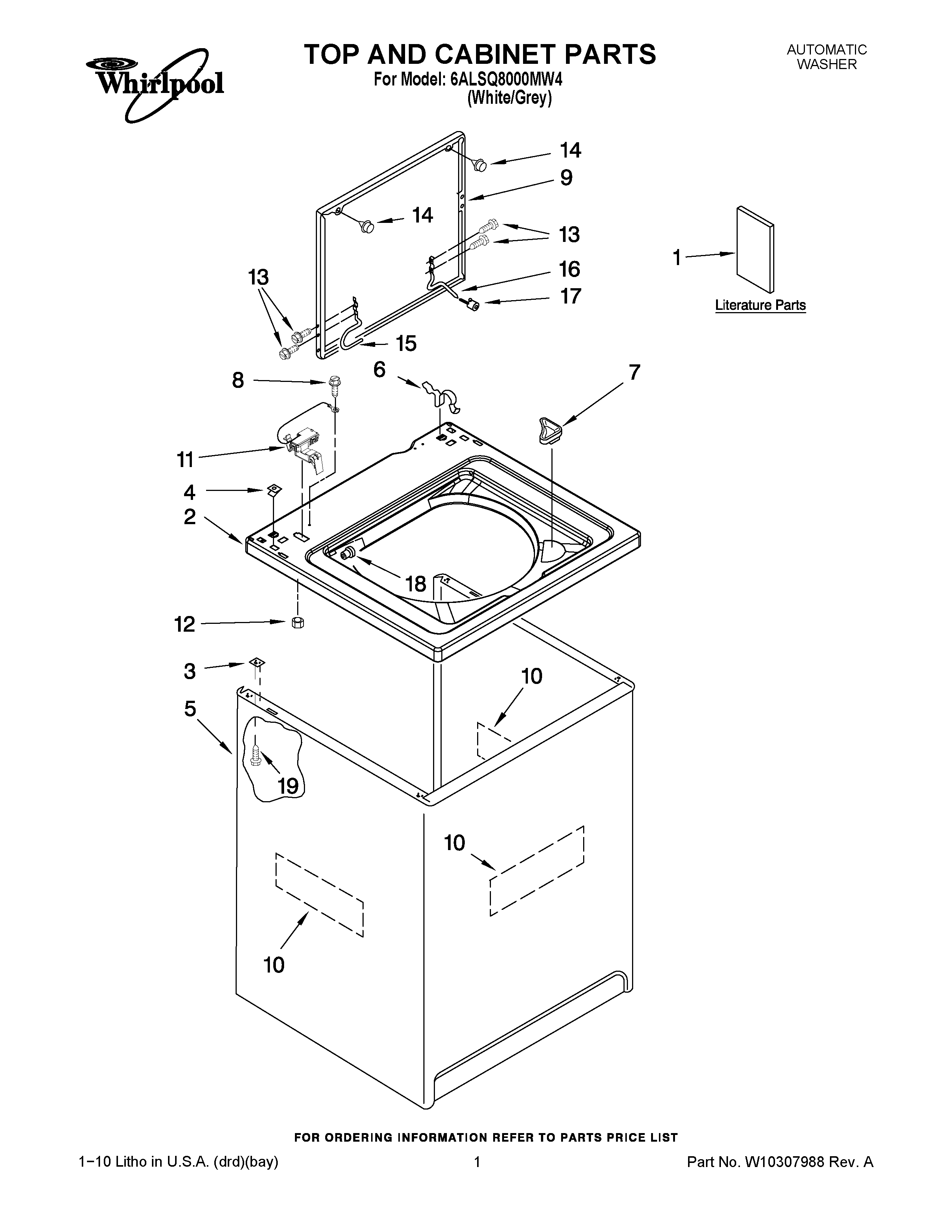

6ALSQ8000MW4 01 – TOP AND CABINET PARTS

Products

Position	Product
1	FEATURE SHEET
1	Installation Instructions
1	Use & Care Guide
1	Energy Guide
1	Wiring Diagram
2	Top (White)
3	WP62750 Whirlpool Spacer
4	WP357213 Whirlpool Hinge Stopper
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	WP3362952 Whirlpool Bezel
8	WP3351614 Whirlpool Screw
9	WPW10193857 Whirlpool Lid Assembly
10	W11096159 Whirlpool Sound ABS Assembly
11	WP8318084 Whirlpool Washer Lid Switch Assembly
12	W10080180 Whirlpool Nut
13	SCREW
14	WP9724509 Whirlpool Bumper
15	Hinge, Lid (L.H.)
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	WP3390631 Whirlpool Screw
